Lubrication 1
| Corresponding Part | PF Roller |
|---|---|
| Lubricants (Part Code) | G-97 (1635441) |
| Amount | ⌀1 mm x 5 mm (3mg) |
| Lubrication Tool | ⌀1 mm syringe |

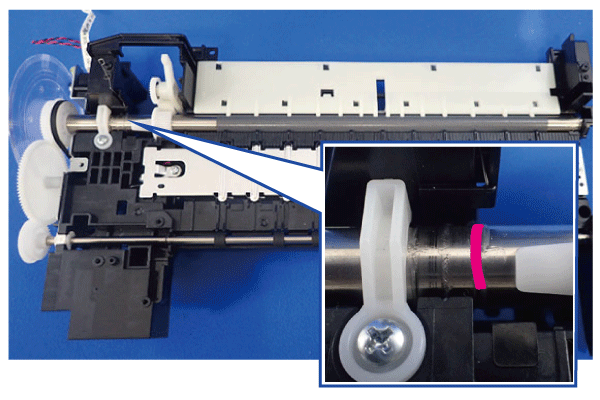

| Lubrication Manner | Apply with a syringe to the designated location on the PF roller as shown in the figure.After the application, spread the grease by rotating the PF Roller one time. |
| Precautions | --- |
