# PF Pattern (PG1)　

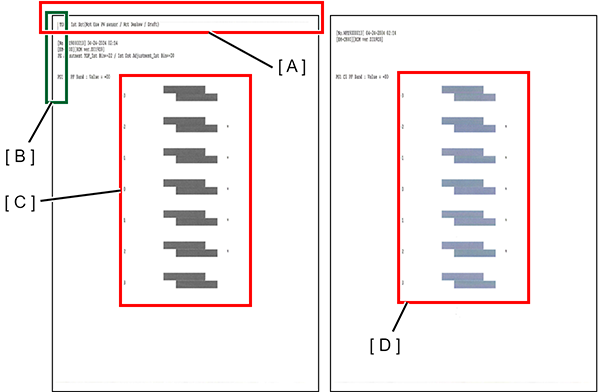

#Adjustment pattern

#Checking target

• A: No object
• B: No object
• C: Band Feed Adjust failure (condition: PG1, monochrome)
• D: PF Band Feed Adjust failure (condition: PG1, color)

#Judgment method

• C, D: Any overlapping of the upper and lower blocks or any white band in the center patch?

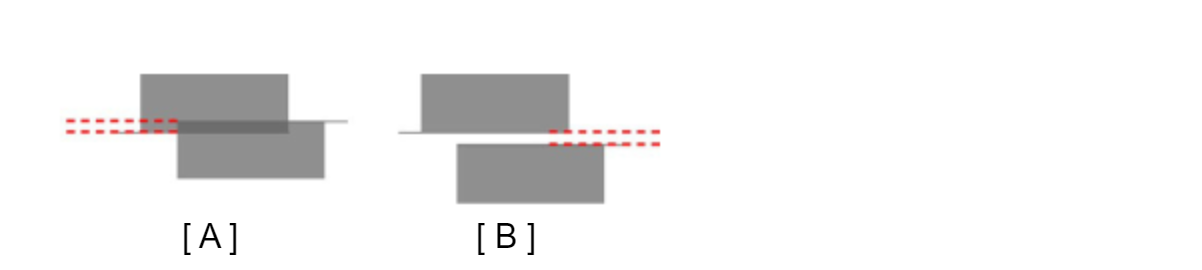

  Check Point / チェックポイント

  Make sure the best pattern is one of the patterns with “*” printed on the right side.



• • A: Overlapping of the upper and lower blocks

  • B: White band

#Remedy

• C, D: Perform following adjustments in this order.

1. 60122 Bi-D Band Adj.

2. 60132 PF Band Feed Adj.
