Temperature and Humidity Sensor After Parts Replacement
Procedure
- Turn the power ON.

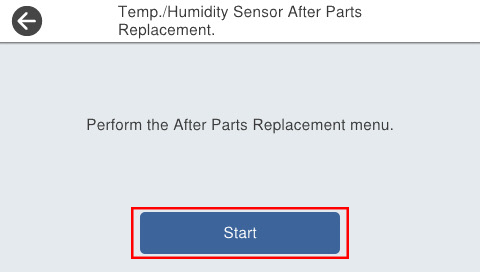

- Press [Start].

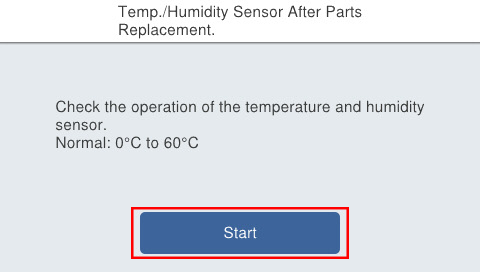

- Press [Start].

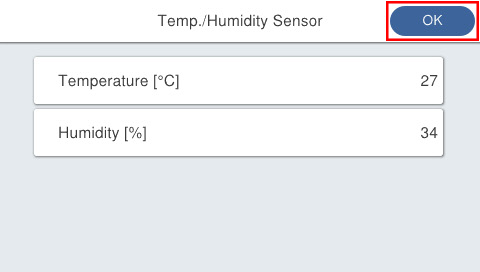

- If the temperature and humidity displayed match those of the room in which the printer is installed, press [OK].

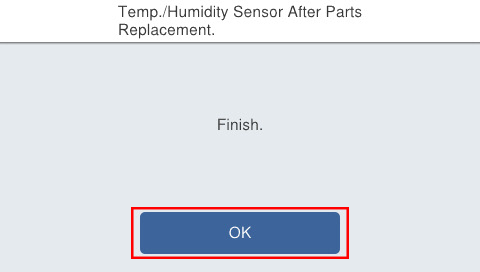

- Press [OK].
