70704 Check Pattern Print (Matte)

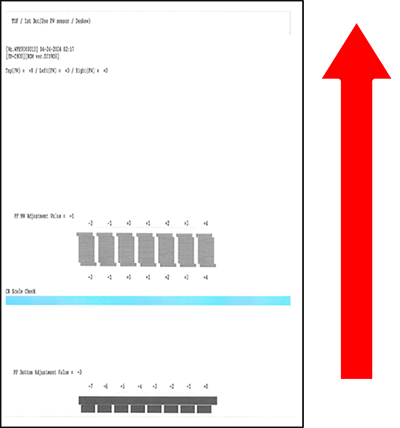

Program No. Program Name Specifications Pattern Image
(Paper Feed Direction: Arrow Direction)		 Target Image Quality Defect
70704 Check Pattern Print (Matte)
  • Judgment method
    • Any overlapping of the upper and lower blocks or any white band in the center patch?
    • Any print skipping (vertical white band)?
  • Document size: A4
  • Paper type: Photo matte paper
  • Number of prints: 1

  • PF Adjust (microweave) failure
  • Dirt/Scratch on CR Scale
  • Feed Adjust failure
Procedure
  1. Start service support mode. (Starting Service Support Mode)
  2. Select [07 Installation Setting / Operation Check].　
  3. Select the [707 Paper Feed/ Print Quality Check].

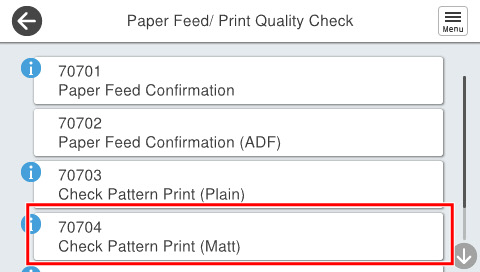

  4. Select [70704 Check Pattern Print (Matte)].

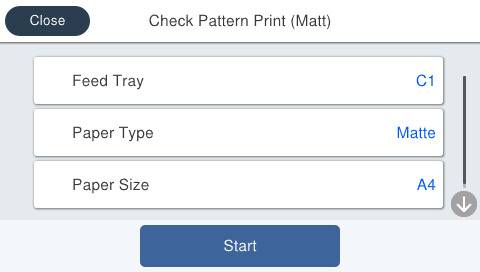

  5. Press each setting item button to confirm print settings.


    Setting Items Choice Remarks
    Feed Tray C1 Setting change not possible
    Paper Type Matte Paper-Heavy weight/Premium Presentation Paper Matte Setting change not possible
    Paper Size A4 Setting change not possible

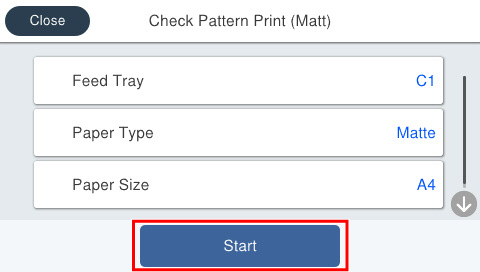

  6. Load paper in the selected feed tray and press [Start].
  7. Check the output pattern status.
    (Refer to Remedy of When the Check Pattern is not appropriate “Check Pattern Print (Matte)”.)
