# Ink Supply Unit Front Cover

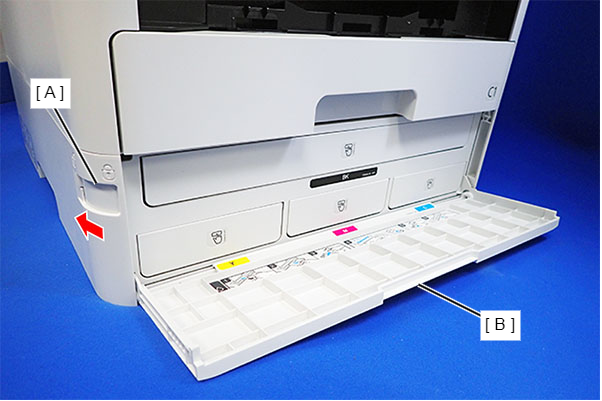

1. Move the Lock Lever (A) in the direction of the arrow, then open the Ink Supply Unit Front Cover (B).

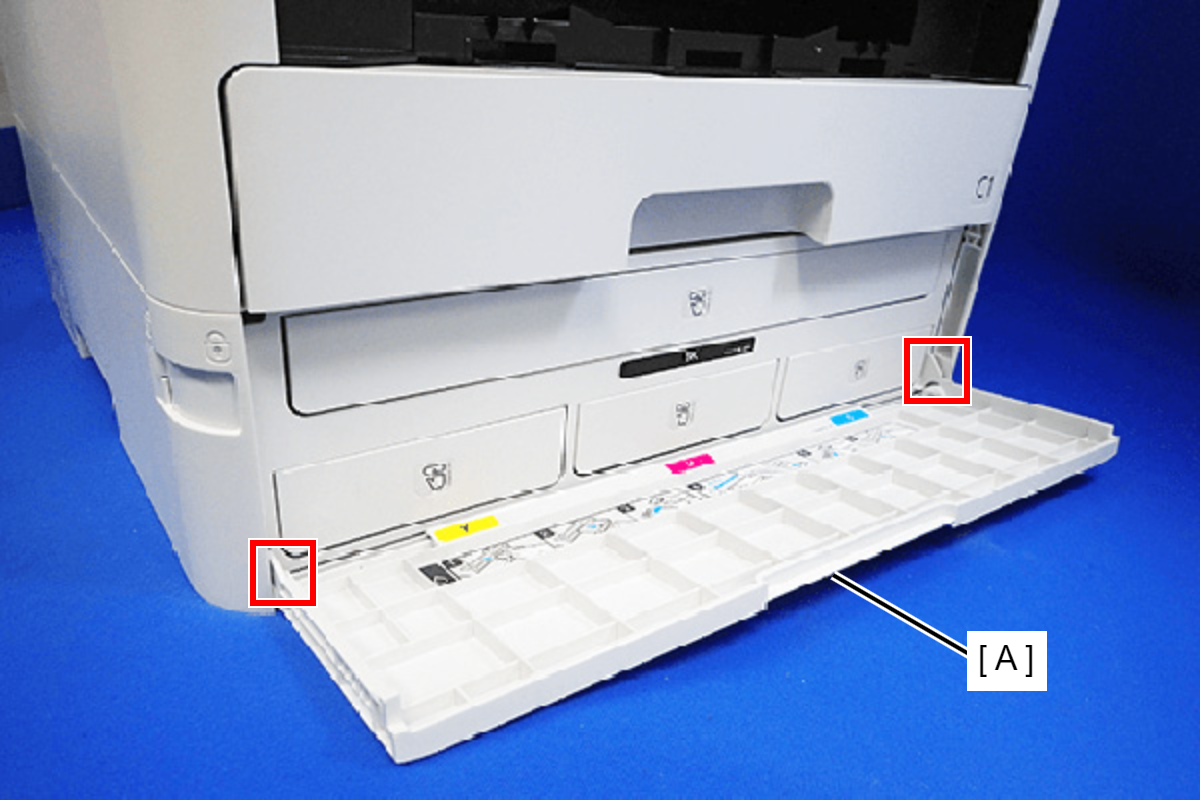

2. Take out the two axes from the housing holes while bending the Ink Supply Unit Front Cover (A), and then remove the Ink Supply Unit Front Cover (A).
