Carriage Mechanism

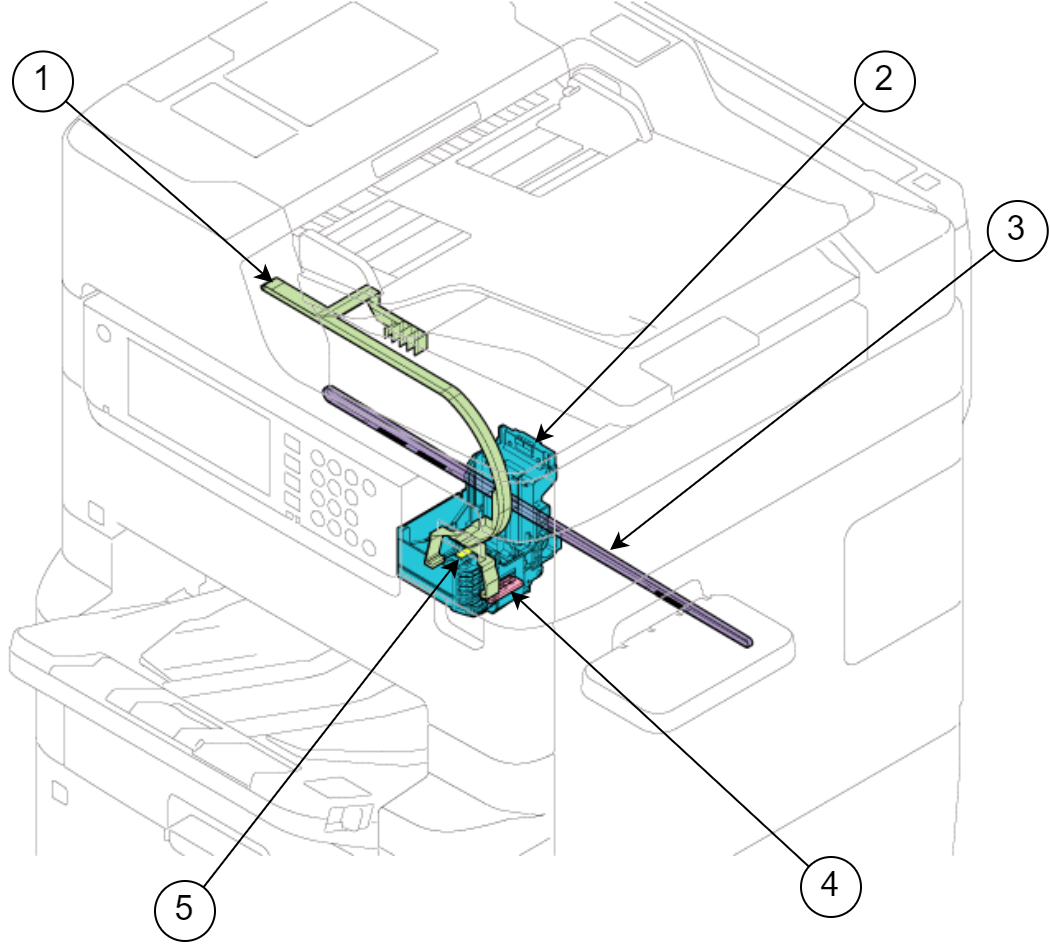

| No. | Name |
|---|---|
| 1 | Head FFC Assy |
| 2 | CR Unit |
| 3 | CR Timing Belt |
| 4 | CR Unit Porous Pad |
| 5 | PW Sensor |

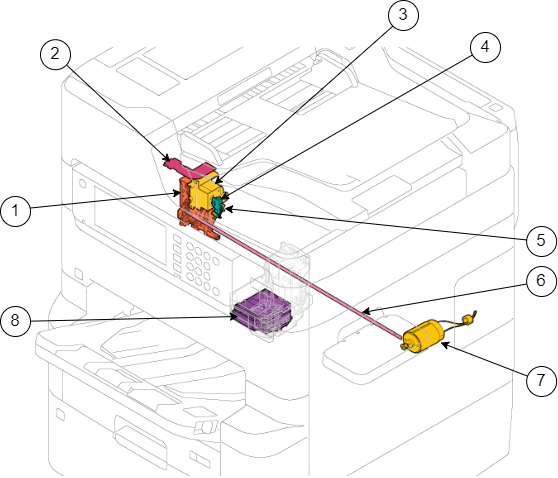

| No. | Name |
|---|---|
| 1 | APG Drive Assy |
| 2 | Head FFC Protection Sheet |
| 3 | APG Motor Assy |
| 4 | APG Encoder |
| 5 | APG Drive Sensor |
| 6 | CR Scale |
| 7 | CR Motor |
| 8 | Print Head |
