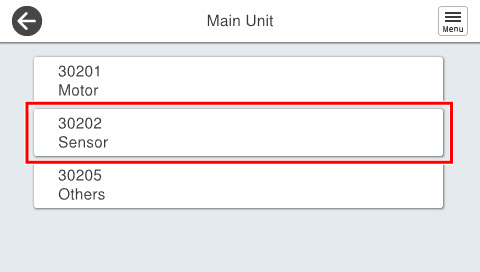

30202 Sensor

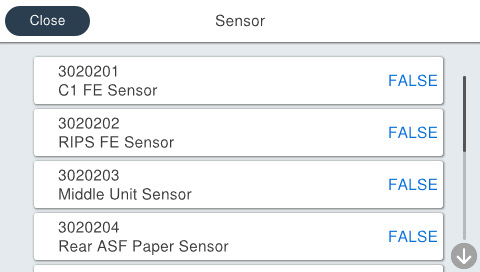

You can check the situation of each sensor displayed on the menu.

Program No.	Menu Name	Judgment method	Remarks
3020201	C1 Paper Feed Sensor	Insert the paper into the sensor parts.	TRUE: Detection FALSE: No Detection Default: FALSE
3020202	RIPS FE Sensor	Move the RIPS FE Sensor with your hand, and make sure the state of the sensor changes.	TRUE: Detection FALSE: No Detection Default: FALSE
3020203	Middle Unit Sensor	Insert the paper into the sensor parts.	TRUE: Detection FALSE: No Detection Default: FALSE
3020204	Rear ASF Paper Sensor	Insert the paper into Rear ASF.	TRUE: With paper FALSE: Without paper Default: FALSE
3020205	PE Sensor	20114 PE Sensor Check Pattern Print into the sensor section.	TRUE: Detection FALSE: No Detection Default: FALSE
3020208	RIPS Cover Sensor	Open/close the Ink cover.	TRUE: Open FALSE: Closed Default: FALSE
3020209	RIPS Rear Cover Sensor	Open and close the Rear Cover (D3).	TRUE: Open FALSE: Closed Default: FALSE
3020210	Front Cover Sensor	Open and close the Front Cover.	TRUE: Open FALSE: Closed Default: FALSE
3020211	Middle Unit Cover Sensor	Open and close the Middle Unit Cover.	TRUE: Open FALSE: Closed Default: FALSE
