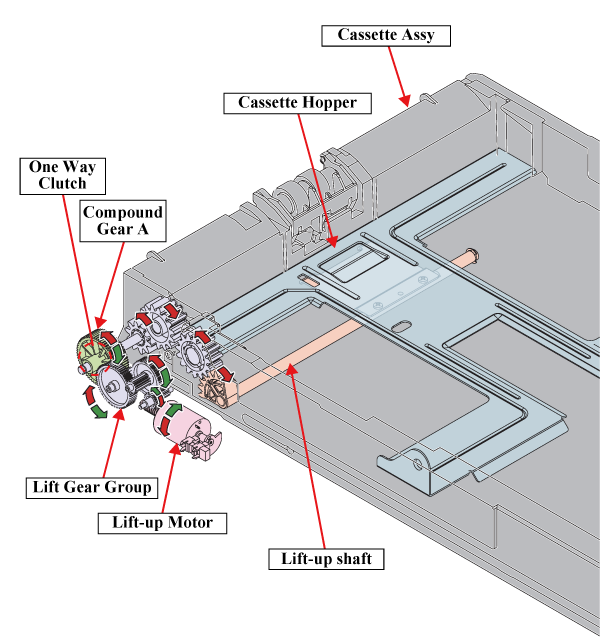

Lift-up mechanism
This mechanism raises the paper set on the Cassette Assy up to the paper pick-up position of the pick-up mechanism.
Lift-up mechanism operates the drive force of the Lift-up Motor.
The Lift-up Motor's drive force is transmitted via the Compound Gear A, and to the Lift Gear Group on the Cassette Assy, and rotates the Lift-up shaft.
Lift-up Motor's rotational directions and operation of the Lift-up shaft
| Lift-up Motor's rotational direction | Clockwise | Counterclockwise |
|---|---|---|
| Operation of the Lift-up shaft | Lift-up | Not rotates |
On the shaft of the Compound Gear A, the One Way Clutch is mounted. When the Lift-up Motor rotates CCW, the drive force is cut off by the One Way Clutch, so the Lift-up shaft does not rotate.
