60106 C4 ASF/ Lift Motor Correction

Overview

Measure product variations to set the appropriate correction values. Also, make a pass/fail judgment by calculating whether or not the operation load is within the expected range from the motor current value.

Note / 補足

When the additional cassette unit (C4 cassette) is not connected, this menu will not be displayed.
Required Tool

---

Procedure
  1. Start service support mode. (Starting Service Support Mode)
  2. Select [06 Individual Adjustment].
  3. Select [601 Printer/Additional Cassette].
  4. Select [60106 C4 ASF/ Lift Motor Correction].

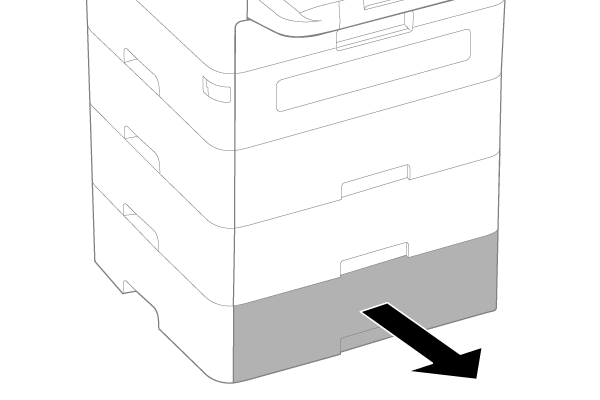

  5. Pull out the C4 cassette from the additional cassette unit.
  6. Press [Execution].

  7. Press [OK] to complete.

    Check Point / チェックポイント

    If an error is displayed, confirm the following and execute again.

    • Motor cable connection
