# Attaching authentication device stand

#Included Items

Check Point / チェックポイント

Since the brackets used differ depending on the product model, multiple brackets are included in the package.

#Installation Procedure

Items to Prepare

• Gloves
• Phillips (+) screwdriver

Minimum number of workers

1 person

Caution / 注意

Be sure to check the following precautions before installation. All workers must read the installing procedure together before starting work. Wear easy-to-move clothing, gloves and safety shoes and work with care for injuries etc. Work with sufficient working space. Work in the position with less load, and stop working immediately as you feel that the workload is too large. All work must be done with the power off.

Installation Procedure

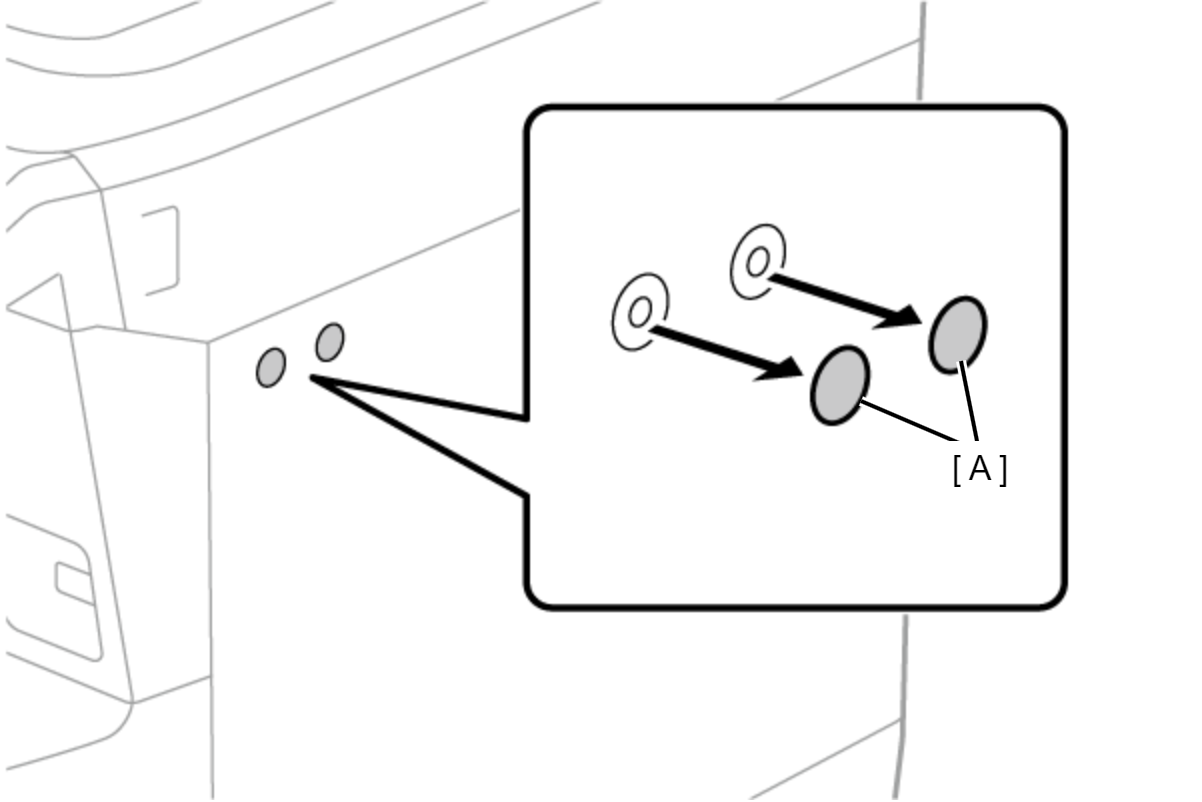

1. Peel off the 2 tapes (A) that cover the screw holes on the side of the printer.

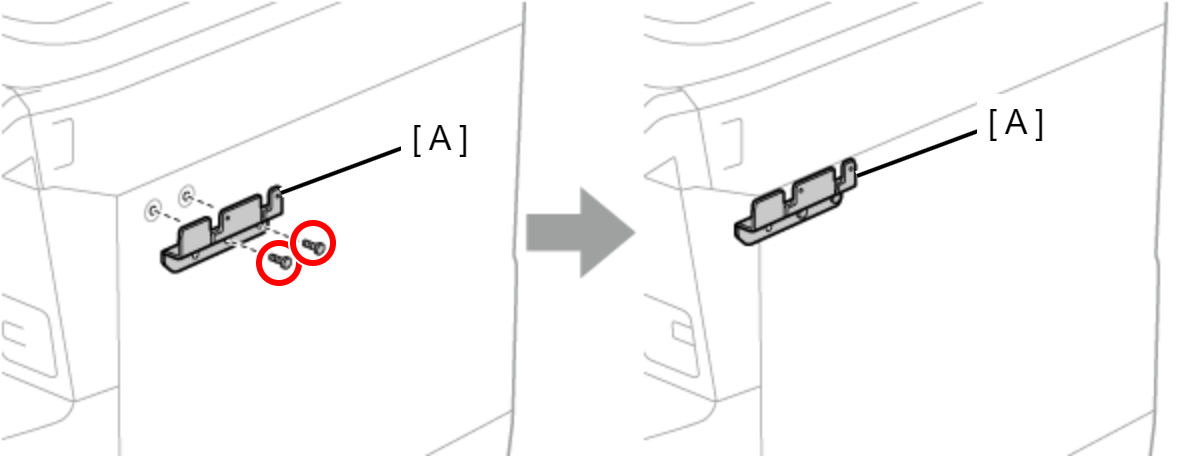

2. Secure the Bracket C (A) with 2 screw A.

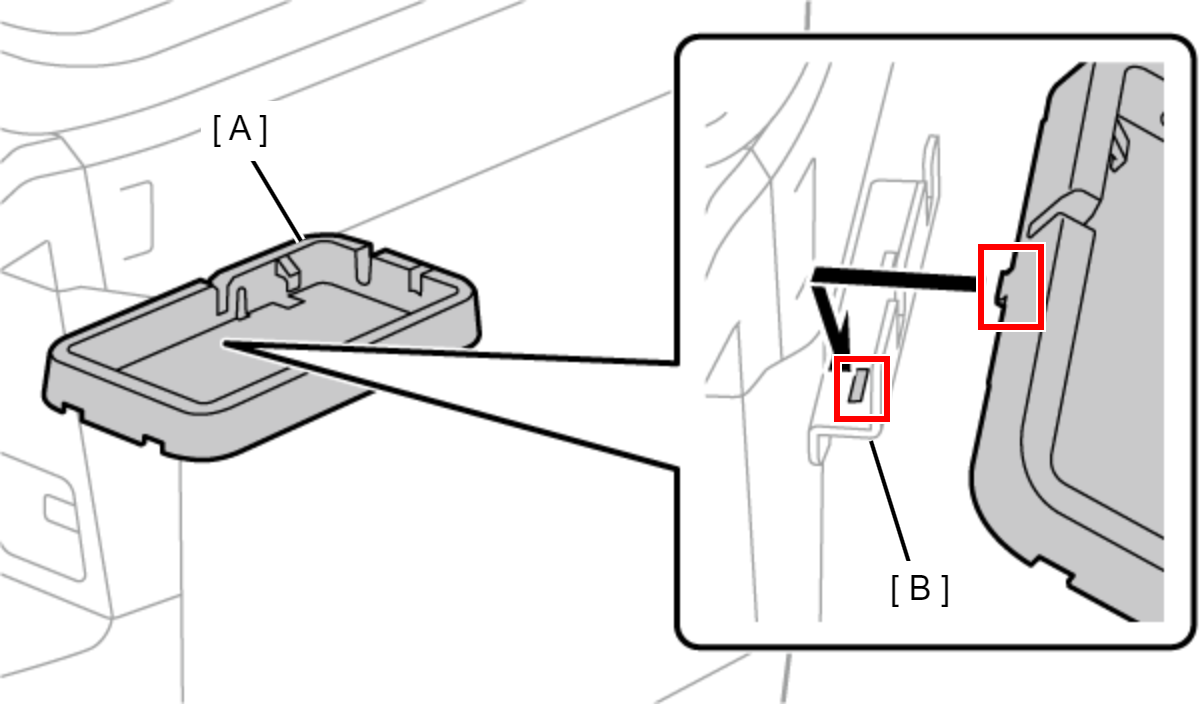

3. Align the hooks on the Device pedestal (A) with the grooves on the Bracket C (B) and attach the Device pedestal (A).

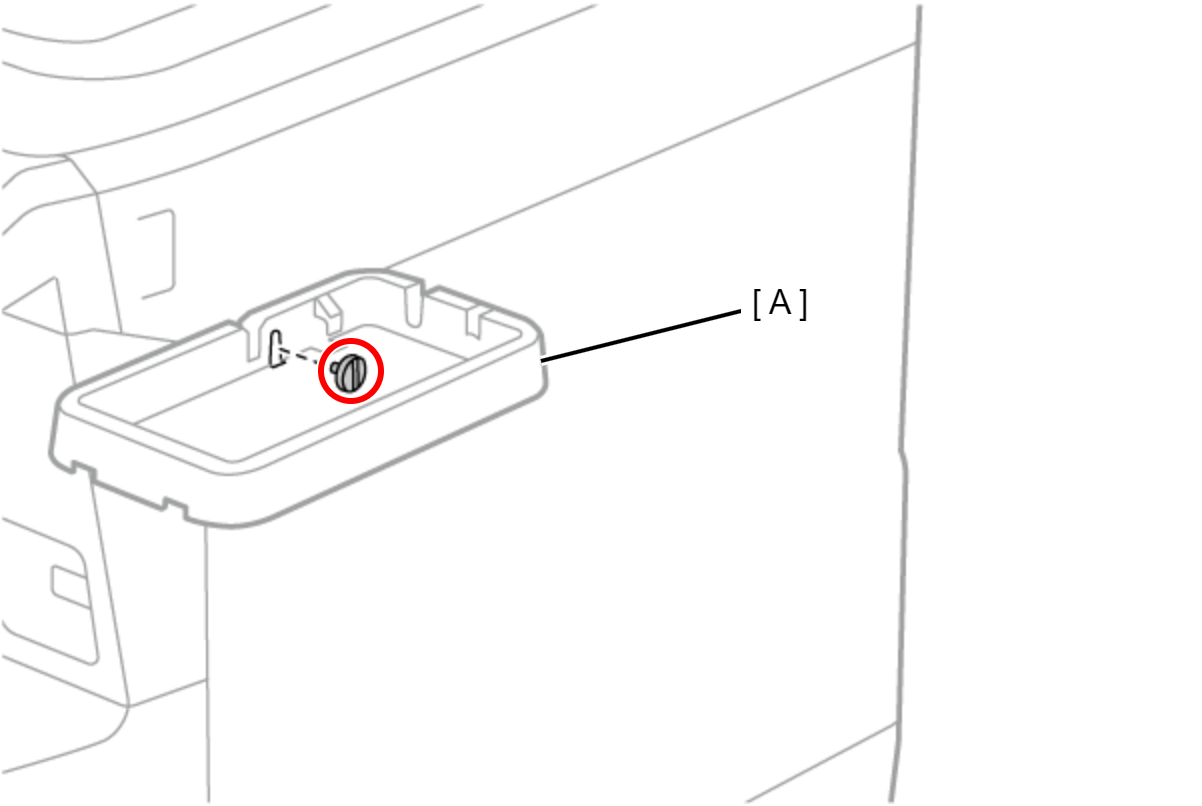

4. Secure the Device pedestal (A) with the Coin screw.

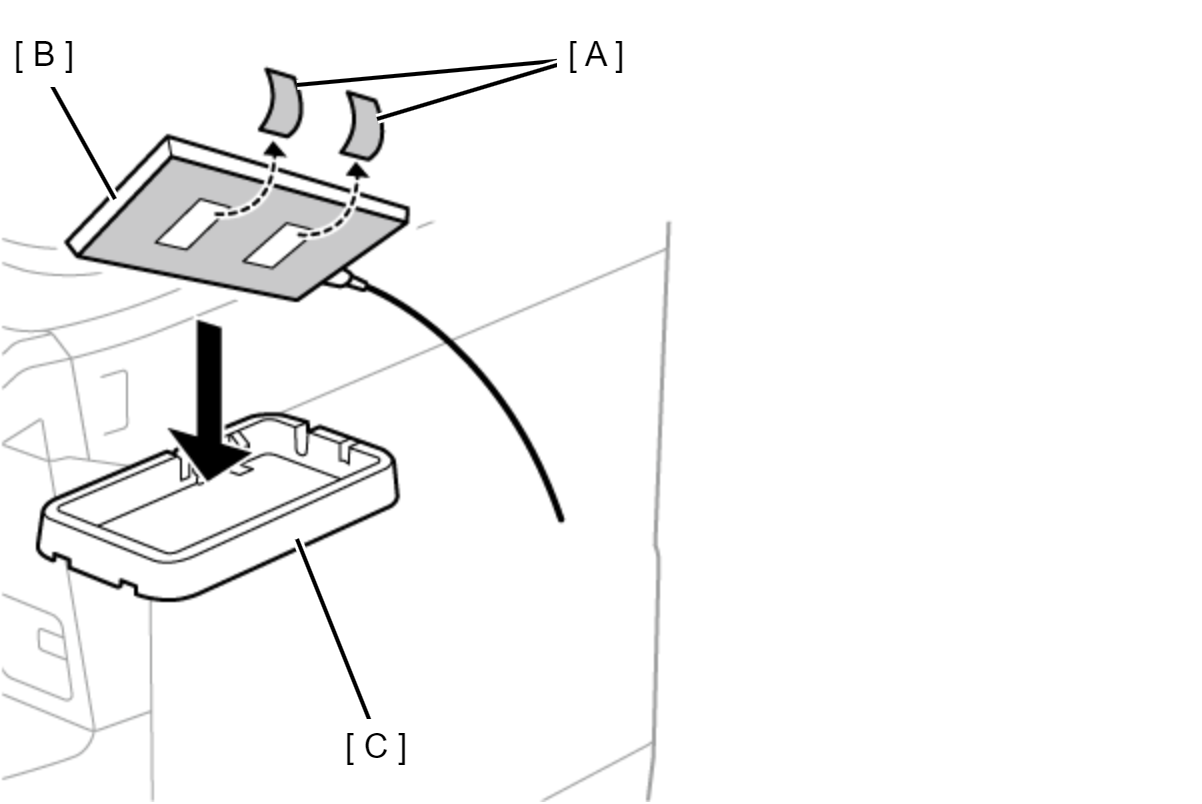

5. Fix the device base (B) to the Device pedestal (C) with the two pieces of double-sided tape (A) supplied.

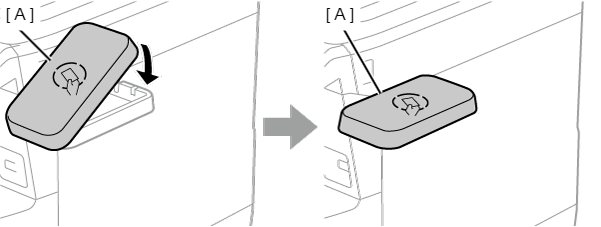

6. Attach the Device pedestal upper cover (A).

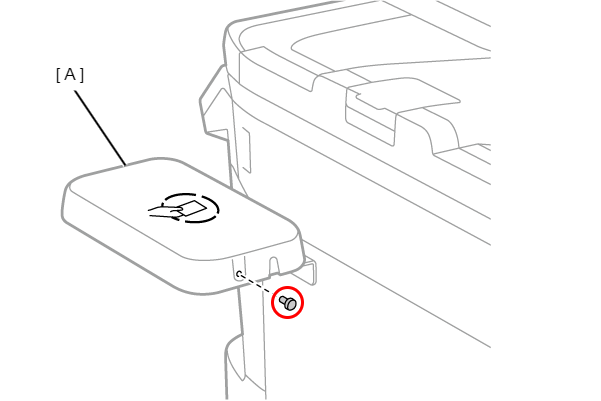

7. Secure the Device pedestal upper cover (A) with the Screw A.

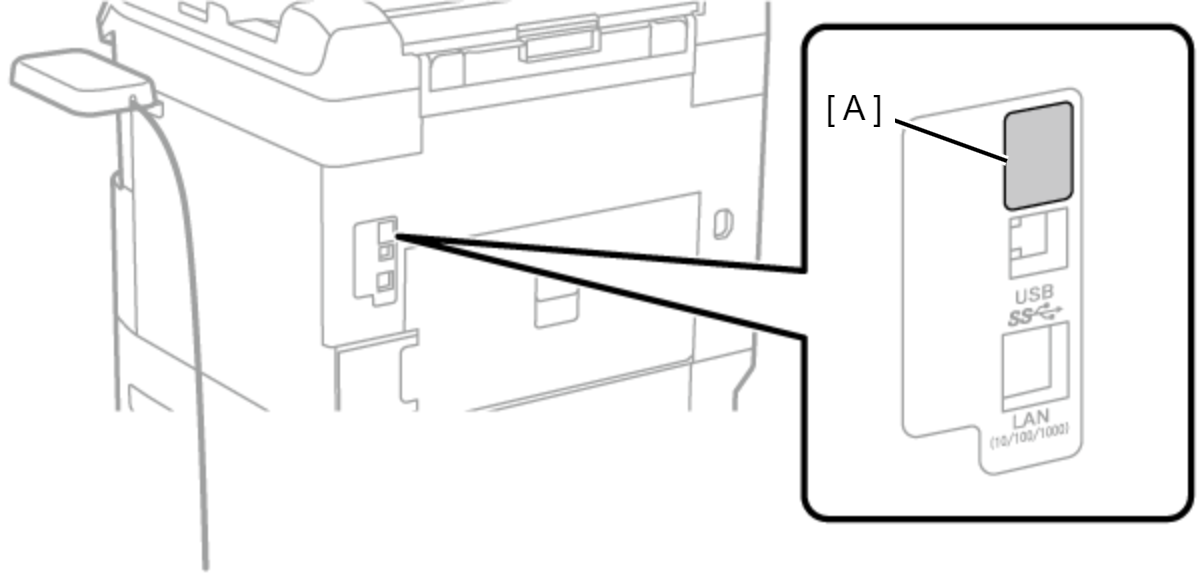

8. Peel off the seal (A) from the printer's service port.

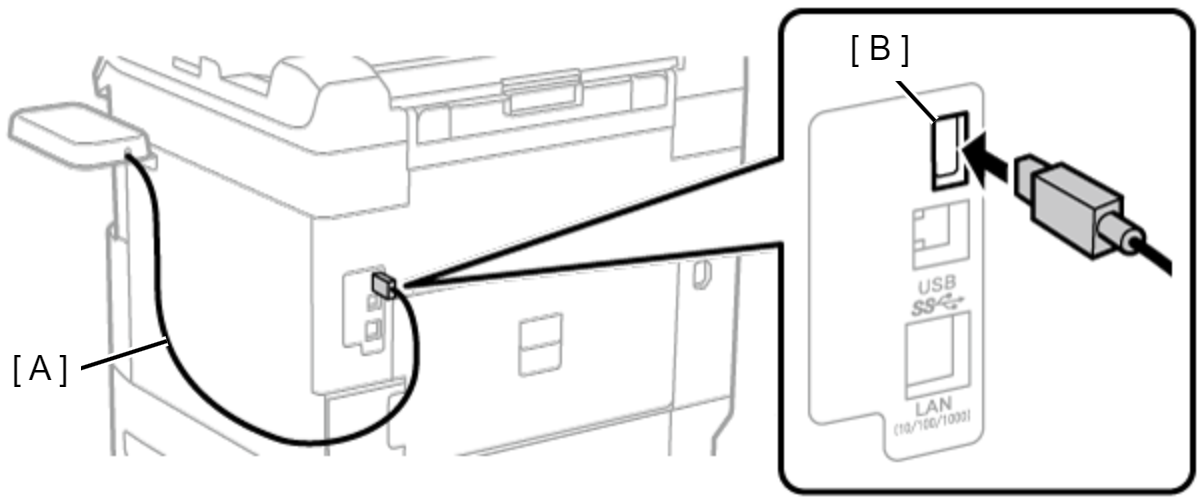

9. Connect the cable (A) for the authentication device to the service port (B).
