# CR・PF Pattern (PG1)

#Adjustment pattern

#Checking target

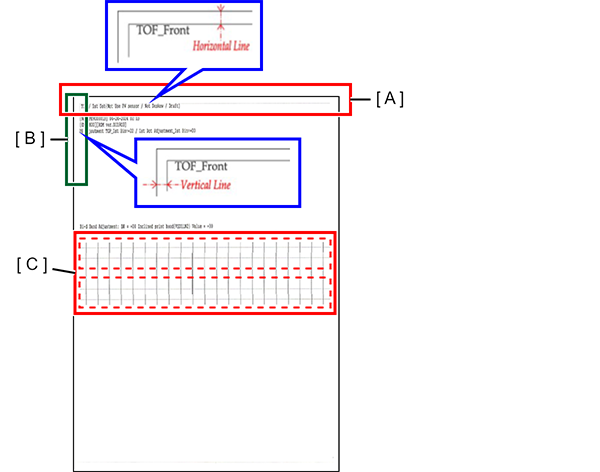

• A: 1st dot position misalignment, paper skew
• B: Printing start position misalignment
• C: Print Head Inclination Adjust failure

#Judgment method

• A: Is the distance between the horizontal line and the top edge of the paper within 3±1.0 mm.
• B: Is the distance between the vertical line and the left edge of the paper within 3±1.5 mm.
• C: Are the upper and lower lines printed straightly inside the judgment area (inside the dotted line)?

#Remedy

• A: Perform the 60129 Rear ASF PE Adj..
• B: Perform the 60128 Cassette PE Adj..
• C: Perform following adjustments in this order.

1. 60115 Head Angular Adj. (H/W)
2. 60116 Head Angular Adj. (S/W) A
