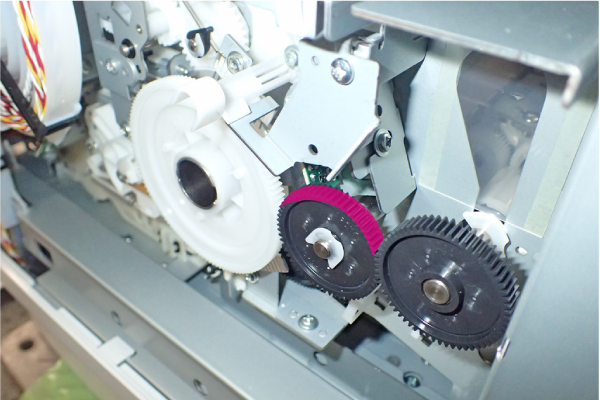

Lubrication 5
| Corresponding Part | Transmission Gear |
|---|---|
| Lubricants (Part Code) | G-96 (1590700) |
| Amount | 0.1g |
| Tools | Brush |
| Lubrication Manner | Lubricate with brush on the entire circumference of Transmission Gear as shown in the figure. |
| Precautions | --- |
