# 60111 Nozzle Detect Check

#Overview

Check that the nozzle diagnostic functions are operating normally.

#Required Tool

---

#Procedure

1. Start service support mode. (Starting Service Support Mode)
2. Select [06 Individual Adjustment].

3. Select [601 Printer/Additional Cassette].

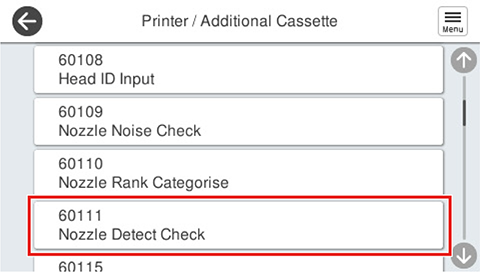

4. Select [60111 Nozzle Detect Check].

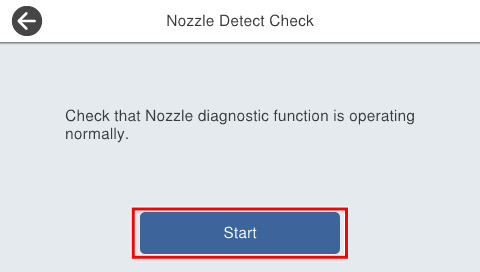

5. Press [Start].

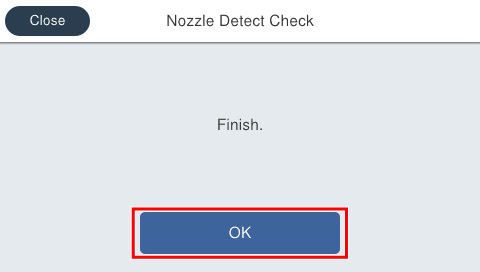

6. If the following screen is displayed, press [OK] to complete.




   Check Point / チェックポイント

   If an error is displayed, perform 401 Head Cleaning ensure that all nozzles are ejecting ink normally, and then perform it again.
