Power Supply Unit Cable

Adjustment / 調整

When replacing this part, you need to run the menu from the service support mode before replacing it.

  1. Remove the three screws, then remove the Left Housing Assy (A) toward the rear of the product.

    • : C.B.S-TITE-SCREW-3x8-F.ZN-3C

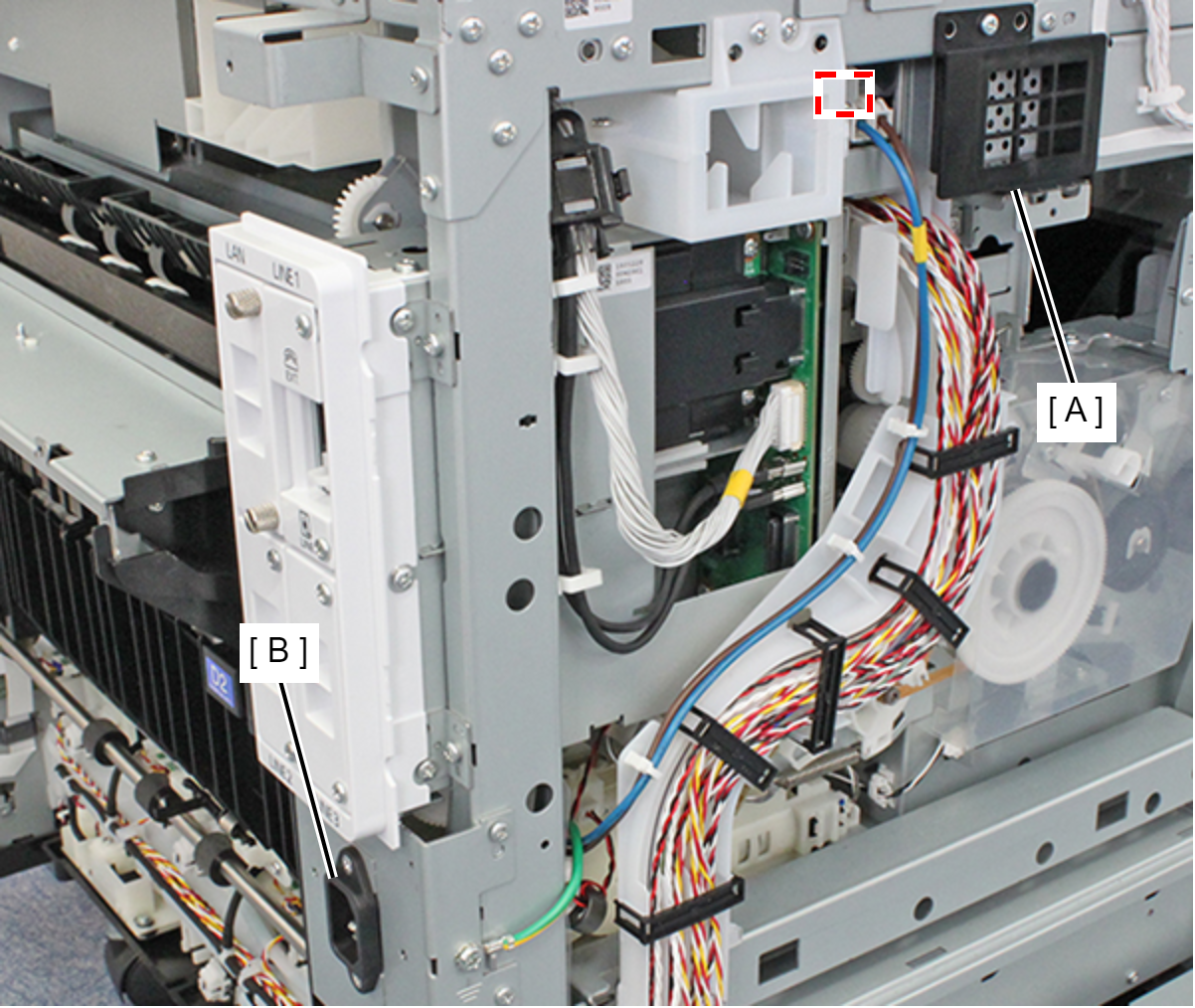

  2. Remove the Power Supply Unit Cable (B) from the Power Supply Unit (A) while releasing the hook.

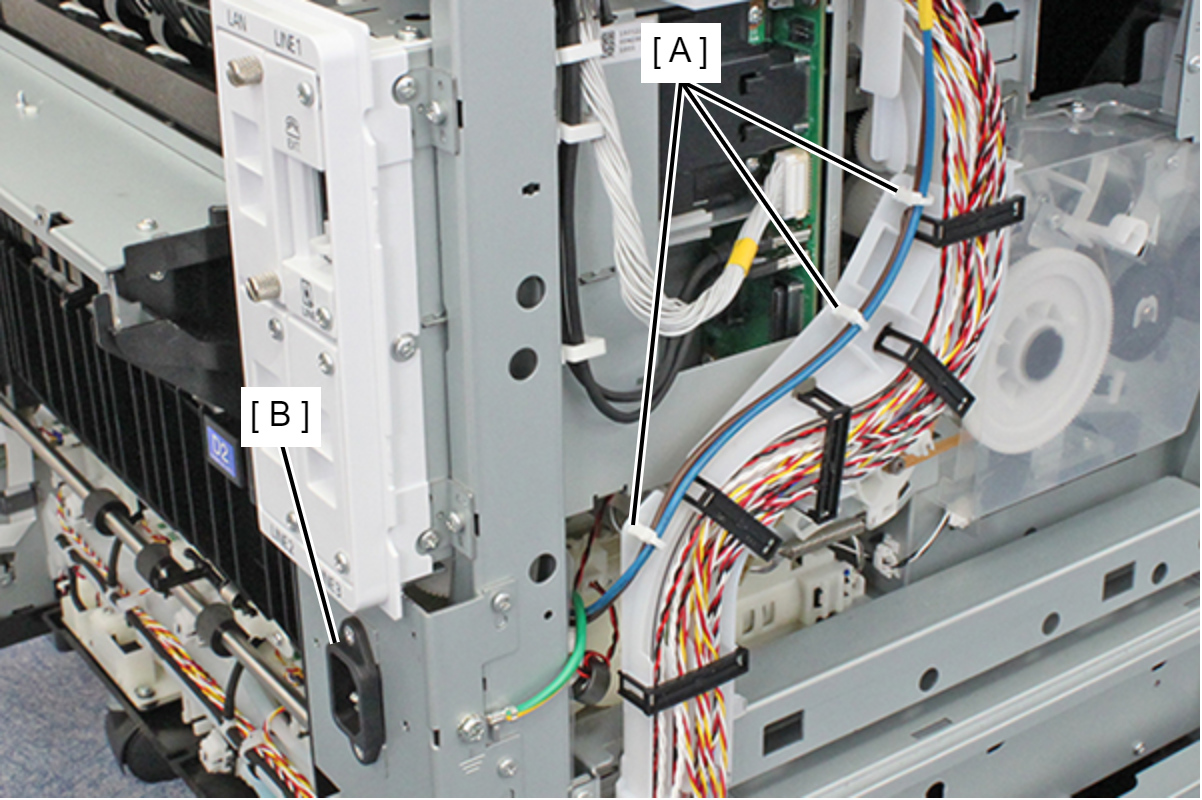

  3. Release the Power Supply Unit Cable (B) from the three clamps (A).

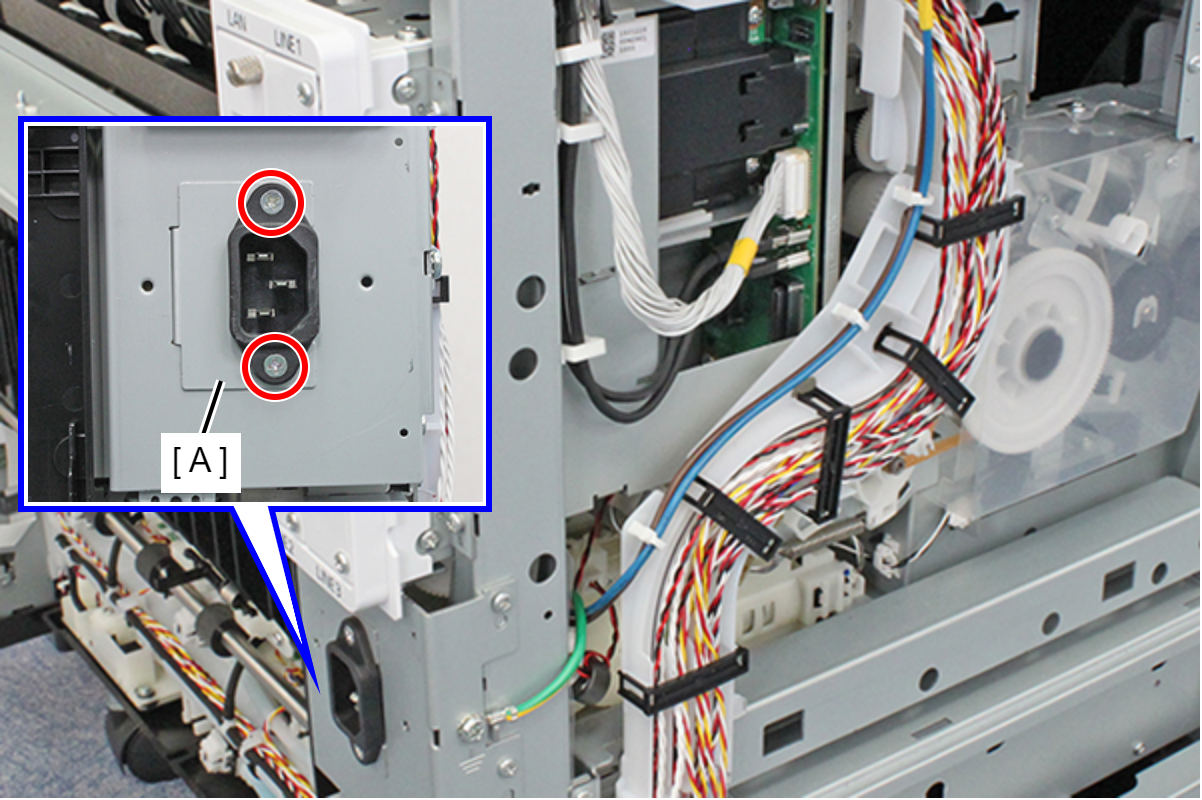

  4. Remove the two screws and remove the AC Inlet Spacer (A).

    • : C.F.S-TITE-SCREW-3x8-F.ZN-3C

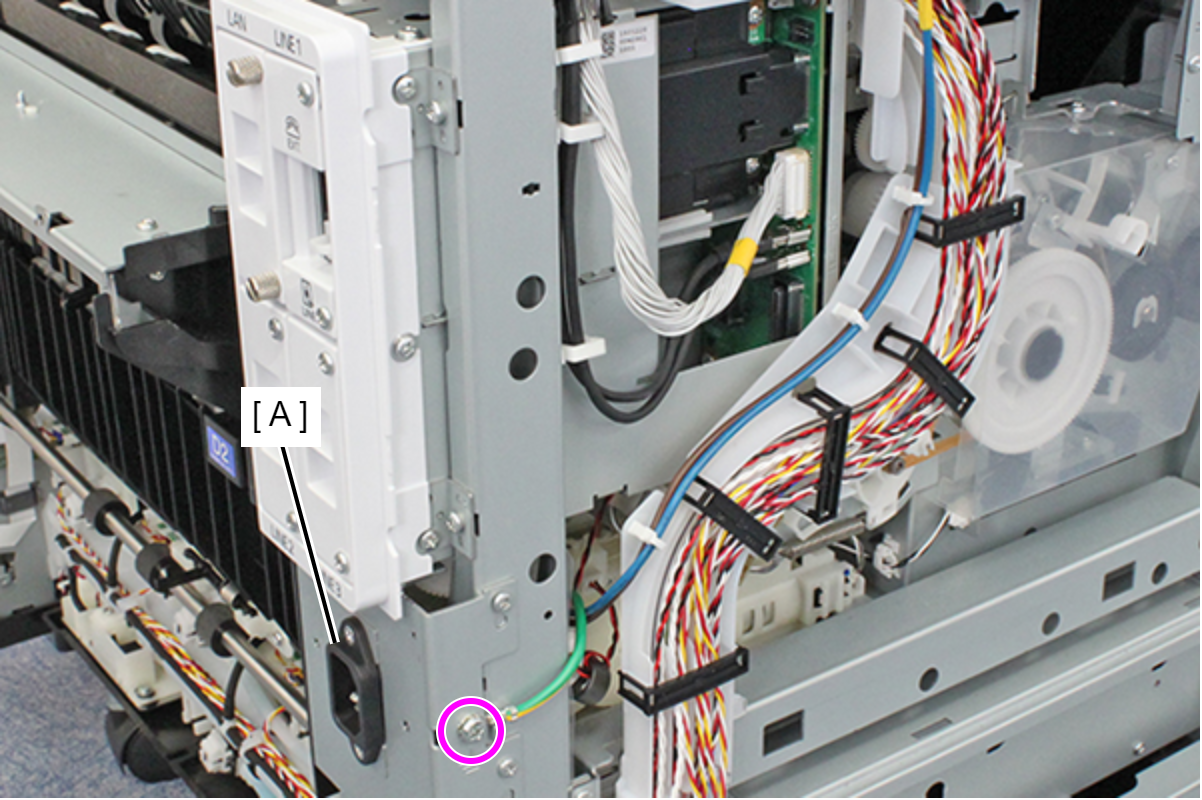

  5. Remove the screw and remove the Power Supply Unit Cable (A).

    • : C.B.O-TITE-SCREW-4x5-F.ZN-3C

Adjustment / 調整

After replacing this part, you need to run the menu from the service support mode.

(If you ran the Before-replacement menu before replacing the part, it will start automatically when you turn the power on.)
