# Ink Supply Tube Assy After Parts Replacement

#Procedure

1. Turn the power ON.

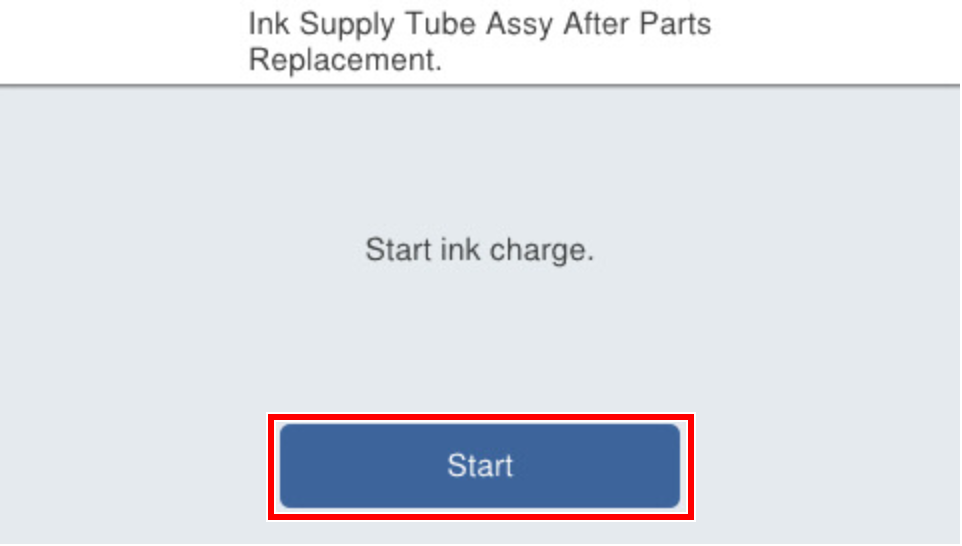

2. Press [Start].

3. Press [Start].

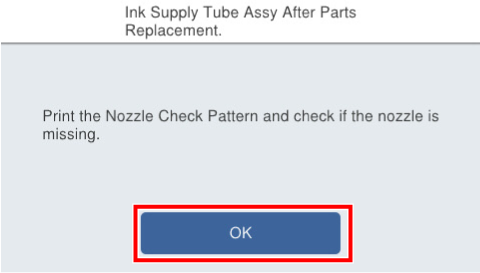

4. If the following screen is displayed, press [OK].

5. Press each setting item button to make print settings.




   Setting Items	Choice	Remarks
   Feed Tray	C1, C2, C3, C4, Rear ASF	---
   Paper Type	Plain Paper	Setting change not possible
   Paper Size	A4 / Letter	---

6. Load paper in the selected feed tray and press [Start].

7. Confirm the check pattern, and confirm that all nozzles with no nozzles missing are correctly ejecting.

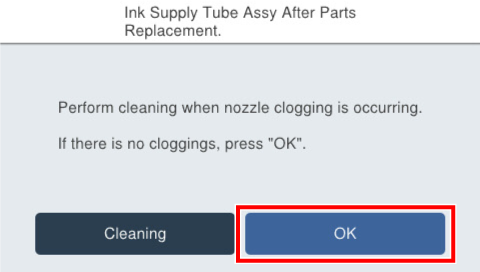

   When all nozzles are correctly ejecting, press [OK] to complete the nozzle check. If a nozzle is missing, press [Cleaning] to execute head cleaning.

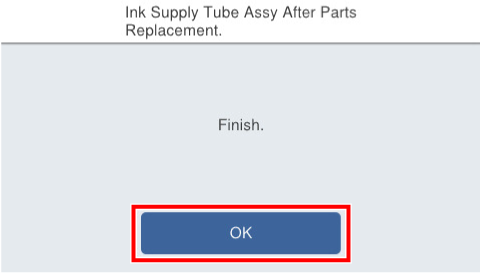

8. Press [OK].
