70705 Service Nozzle Check Pattern

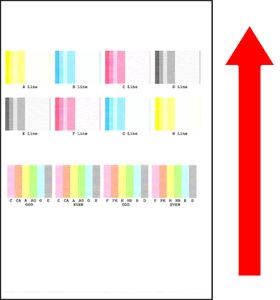

Program No. Program Name Specifications Pattern Image
(Paper Feed Direction: Arrow Direction)		 Target Image Quality Defect
70705 Service Nozzle Check Pattern
  • Judgment method
    • Any abnormalities such as mixed colors, skewed injection or nozzle clogging?
  • Paper size: A4/Letter
  • Paper type: Plain paper
  • Number of prints: 1

  • Mixed colors
  • Nozzles missing
  • Skewed injection
Procedure
  1. Start service support mode. (Starting Service Support Mode)
  2. Select [07 Installation Setting / Operation Check].

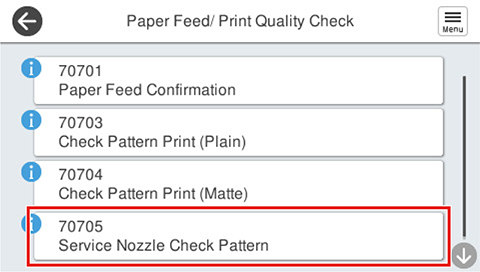

  3. Select the [707 Paper Feed/ Print Quality Check].
  4. Select [70705 Service Nozzle Check Pattern].

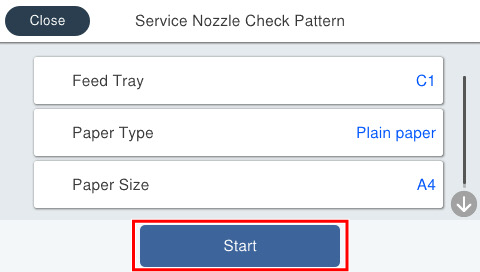

  5. Press each setting item button to make print settings.


    Setting Items Choice Remarks
    Feed Tray C1, C2, C3, C4, Rear ASF ---
    Paper Type Plain Paper Setting change not possible
    Paper Size A4 / Letter ---
  6. Load paper in the selected feed tray and press [Start].
  7. Check the output pattern status.
    (Refer to Remedy of When the Check Pattern is not appropriate “Service Nozzle Check Pattern”.)
