# Ink Supply Unit Before Parts Replacement

#Procedure

1. Start service support mode. (Starting Service Support Mode)
2. Select [05 Adjustment for Replacement Parts].

3. Select [501 Main Unit].

4. Select [50101 Head & Ink Path].

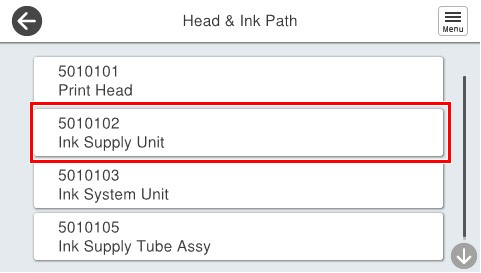

5. Select [5010102 Ink Supply Unit].

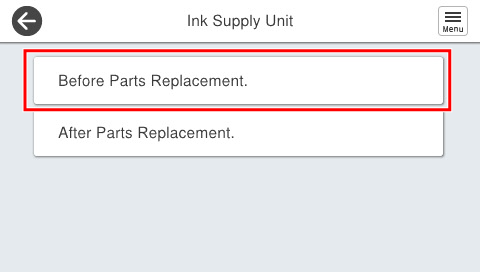

6. Select [Before Parts Replacement].

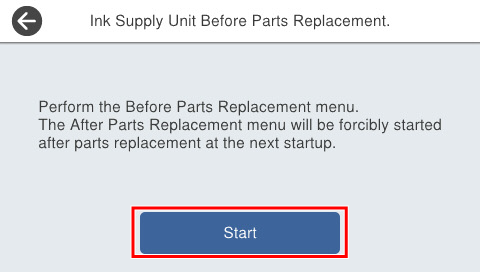

7. Press [Start].

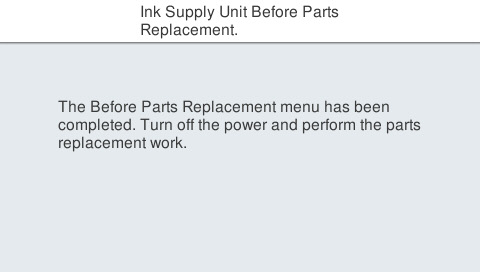

8. When the following screen appears, turn off the product.
   When the power of the product is turned ON, the product starts in service support mode, and the [After Parts Replacement] screen of the Ink Supply Unit is displayed.
