# Line Measurement Mode Startup Method

1. Start the “FAX Maintenance Mode”.

1. Press and hold down the power button while pressing the [#] button from the power-off state until a message appears on the panel LCD.



2. Enter ID number.

   Enter the ID number according to the following operation method.
   Operating procedure

   • Number input (move in ascending order): [2] button
   • Number input (move in descending order): [8] button
   • Input digit shift: [6] button
   • Execute: [#] button

   Check Point / チェックポイント

   Enter “96321”  when starting the FAX Maintenance Mode.

3. After entering the ID number, press the [#] button, and make sure the following confirmation screen appears.



4. On the confirmation screen, press the [#] button, and make sure the product is running in the “Authentication Mode”.

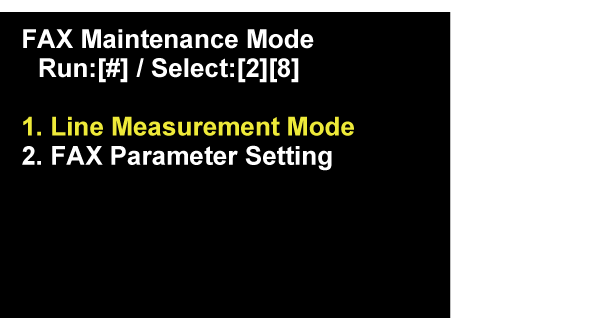

5. With the [2][8] buttons, select [FAX Maintenance Mode], and then press the [#] button.


1. Start the “Line Measurement Mode”.

1. With the [2][8] buttons, select [Line Measurement Mode], and then press the [#] button.



2. The following preparation screen appears. Wait for the screen to switch.
