Print smudges

Symptom

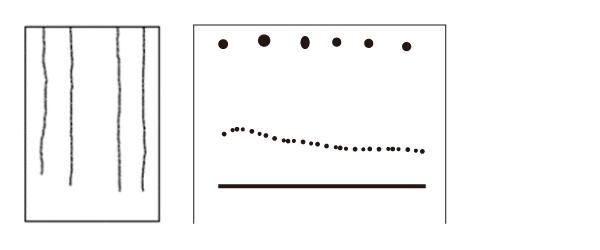

  • Unexpected smudges can be seen somewhere (including back side) on printouts.

Suspected cause
  • Dirt on scanner glass is scanned (when copying)
  • Dirt transferred from feed path
  • Contact with nozzle surface
Troubleshooting
Procedure Check and measure Yes No
1

Check whether printing or copying

Check whether the symptom occurs with printing or with copying.

Occurs with printing and copying

Go to step 2

Occurs with copying only

Refer to ADF/scanner trouble
2

Check conditions in which error occurred

Check whether the error occurred only during 2-sided printing, or whether the error occurred during both 2-sided or one-sided printing.

Occurs during both.
Go to step 3

Occurs only during 2-sided printing.
Check, clean or replace the duplex unit.
3

Confirm the contamination adherence

Confirm the contamination adherence.

  • Check inside the product　
    Check that there is no noticeable dirt inside the product.
  • Check the platen
    Check that there is no noticeable dirt on the platen.
  • Check the feed path and feed roller surfaces
    Is not the feed path and the feed roller dirty?
  • CR side surface
    Check that there is no dust or ink adhered.

Nozzle condition is excellent?

 Go to step 4

Clean the corresponding parts.

* When cleaning the gaps in the SMAP driven roller, you can raise the driven roller a little to make cleaning easier by executing [Settings] > [Maintenance] > [Remove Scraps of Paper].

* If there are large ink deposits, check that there is no ink leaking.

If there is noticeable dirt on the platen, operation without paper may have occurred so execute cleaning and check the following items as well.

  1. Paper size setting of main unit / driver
  2. Check the PW sensor operation (refer to step 7 below)
4

Check the paper and settings

  • Check the paper
    Check that the paper is in an appropriate state (no curling).
  • Check the settings
    Check whether or not the paper settings are appropriate.

Are the paper state and paper settings appropriate?

 Go to step 5

Change the paper or settings.

Recommend to use the rubbing avoidance mode.

If the symptom continues to occur after changing to the genuine ink packs, go to step 5.
5

Check the Ink system Assy

Check the following point about the Inksystem Assy.

Caution / 注意

Execute 60143 CR Unlock & Power OFF   from the Service Support mode in advance to release the CR lock before checking the Inksystem Assy.

Inksystem Assy is correct condition?

[Confirmation details]

  1. Check the cap parts
    • Check that the cap surfaces are not dirty.
    • Hold the CR belt with a hand and move the CR to the home position and visually check that the nozzle surfaces are capped properly.
  2. Check the wiper parts
    • Check that there is not soiling or damage to the wiper parts
    • With the cap sliders drawn to the right side, rotate the PF gears by hand and check that the wipers move up and down.
 Go to step 6
  • When cap/wiper is dirty
    • Cleaning the cap surface / wiper part
  • When capping failure of the nozzle surface is confirmed
  • When the wiper part breakage/wiper operation failure is confirmed

If nozzle missing is not improved after performing the above, go to step 6.
6

Check around the CR Unit

Remove the CR Unit and check that there is no dirt on the bottom surface. (Refer to CR Unit  )

 Go to step 7

Clean the CR bottom surface.
Note: Be careful not to touch the nozzle surface.
7

Check PW sensor
(Execute the following item from the service support mode.)

  1. 301 Failure Diagnostics Sequence
    • 30112 PW Sensor Shutter Check
  2. 60124 PW Sensor Correction
Go to step 8

If trouble is occurred in “1”, replace the PW sensor
In the “2”, select and enter an appropriate value from the adjustment pattern
8

Check the PG

Is the PG within the specified value range (1.35 ±0.05 mm)?

Contact Epson local service representatives.

Perform  the "Check the PG  ".
