Nozzle check print

  1. Select “Settings” from Home menu.

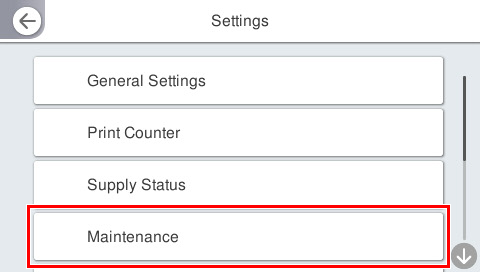

  2. Select [Maintenance] from the Settings menu.

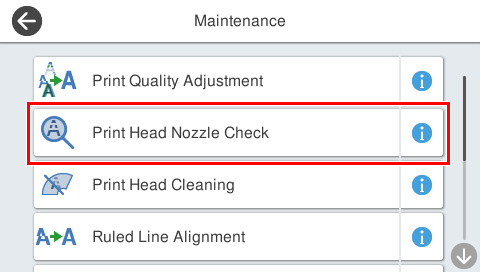

  3. Select [Print Head Nozzle Check].

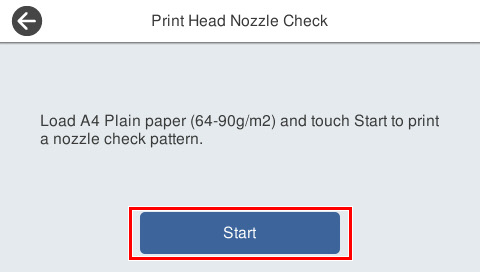

  4. Load paper into the paper cassette (C1) and press [Start].

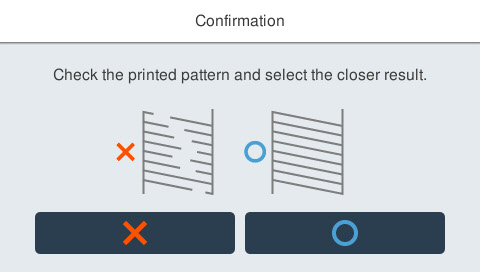

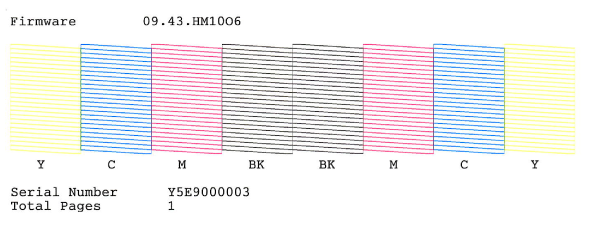

  5. Confirm the check pattern, and confirm that all nozzles with no nozzles missing are correctly ejecting.
    If all nozzles discharge ink correctly, press the [OK] button to end the nozzle check. If any of the nozzles are missing, press the [NG] button to execute head cleaning.
