# 60110 Nozzle Rank Categorise

#Overview

Set the rank for setting the optimal judgment threshold value of each nozzle to ensure Nozzle diagnostic function detection accuracy.

#Required Tool

---

#Procedure

1. Start service support mode. (Starting Service Support Mode)
2. Select [06 Individual Adjustment].

3. Select [601 Printer/Additional Cassette].

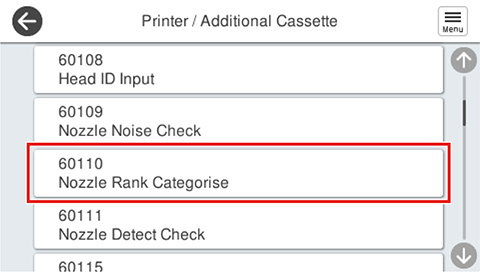

4. Select [60110 Nozzle Rank Categorise].

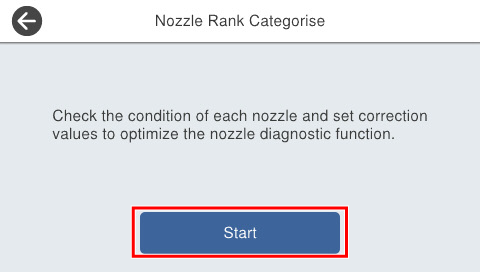

5. Press [Start].

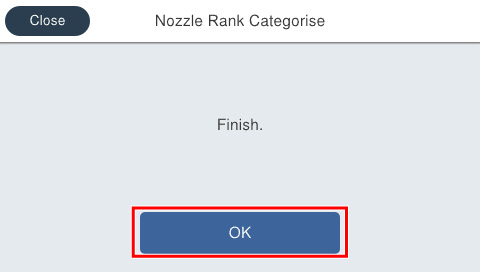

6. If the following screen is displayed, press [OK] to complete.




   Check Point / チェックポイント

   If an error is displayed, perform 401 Head Cleaning ensure that all nozzles are ejecting ink normally, and then perform it again.
