# ADF Reinforcing Plate Rear

1. Remove the two screws.


   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
2. Disengage the two hooks by sliding the Right SC Cover (A) toward the rear of the product, then remove it.

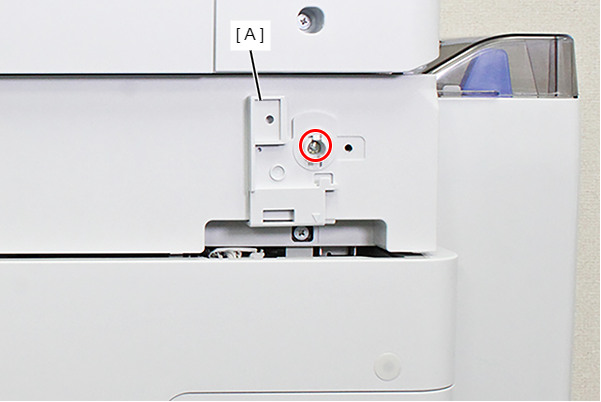

3. Remove the screw, and remove the ADF Reinforcing Plate Rear (A).

   • : C.B.S-TITE-R-SCREW-3x8-F.ZN-3C
