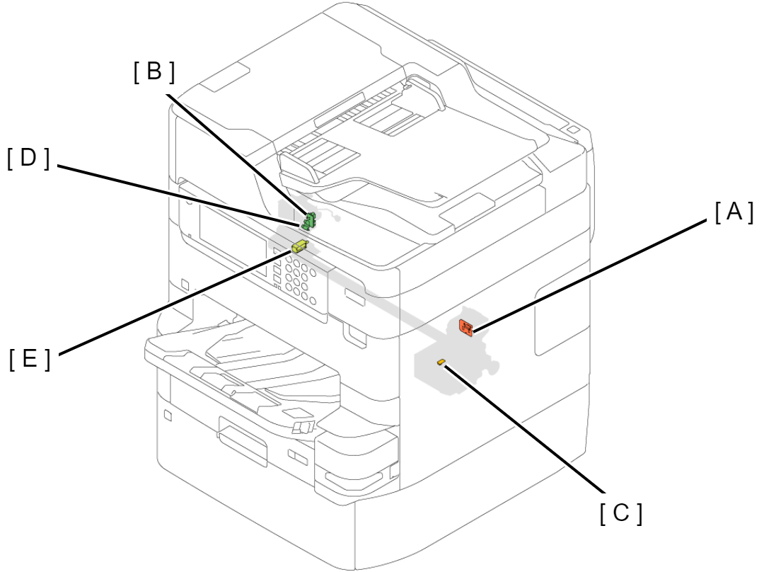

CR Mechanism Sensors and Solenoids
| Name | Function | Type |
|---|---|---|
| CR Encoder (A) | Used for CR operation control (CR scale reading). | Transmission type photo interrupter (3.3VDC±5%) |
| APG Encoder (B) | Used for controlling the APG Motor operation. | Transmission type photo interrupter (3.3VDC±5%) |
| PW Sensor (C) | Used for paper leading edge and paper width detection. | Reflective type photo interrupter (3.3 VDC ± 5%) |
| APG Drive Sensor (D) | Used for detecting the APG phase. | Transmission type photo interrupter (3.3VDC±5%) |
| PW Solenoid (E) | Used for the PW shutter open/close operation. | Solenoid (42 VDC ± 5%) |
