ADF Pickup Roller Cover

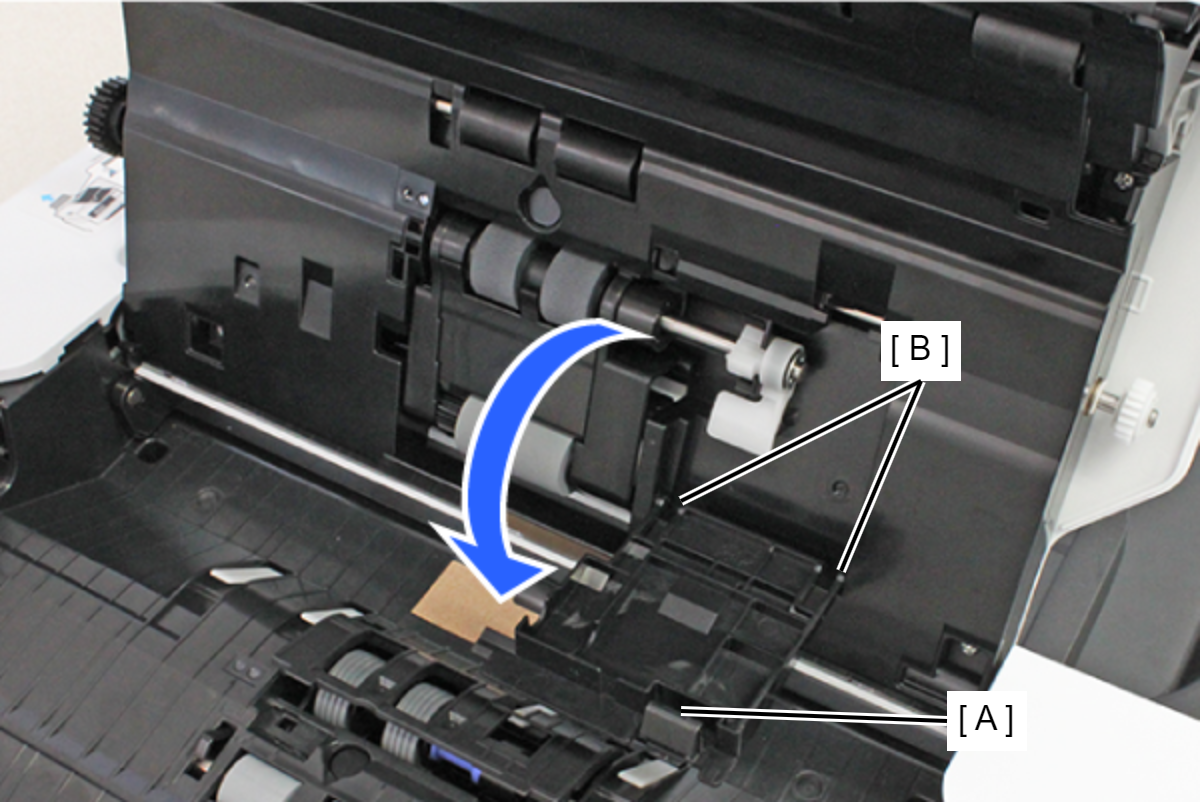

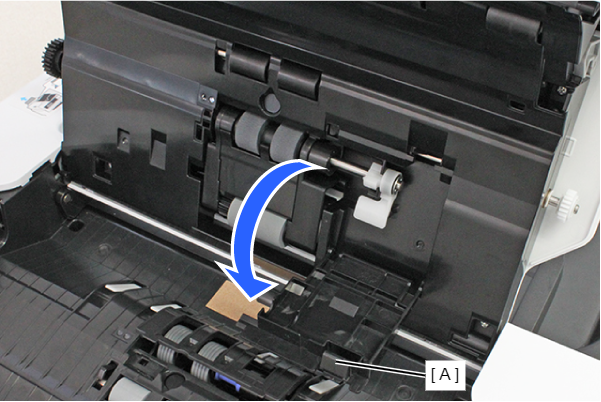

- Open the ADF Pickup Roller Cover (A).
- Remove the two shafts (B) of the ADF Pickup Roller Cover (A), and remove the ADF Pickup Roller Cover (A).
