Retard Roller

Adjustment / 調整

When replacing this part, you need to run the menu from the service support mode before replacing it.

  1. Remove the Cassette Assy (A).

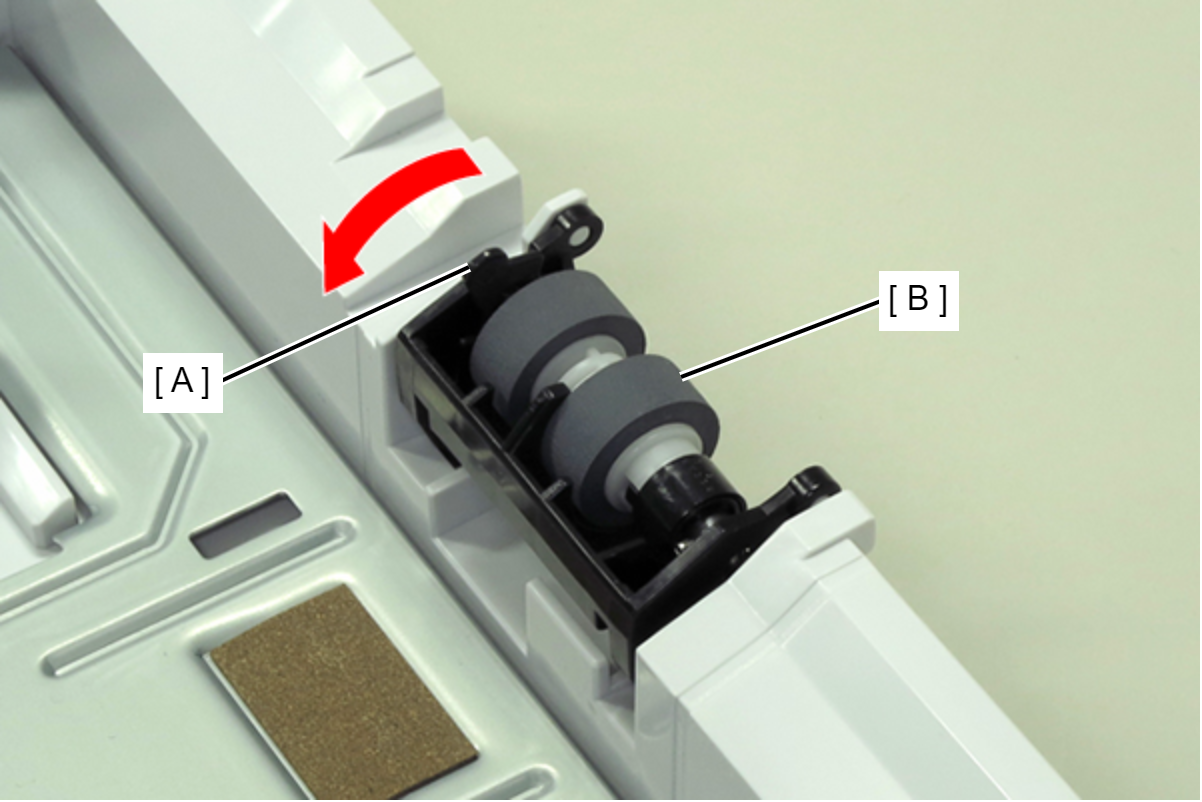

  2. Move the lever (A) to direction of the arrow, then remove the Retard Roller (B).

Adjustment / 調整

After replacing this part, you need to run the menu from the service support mode.

(If you ran the Before-replacement menu before replacing the part, it will start automatically when you turn the power on.)
