| Name |
Function |
Type |

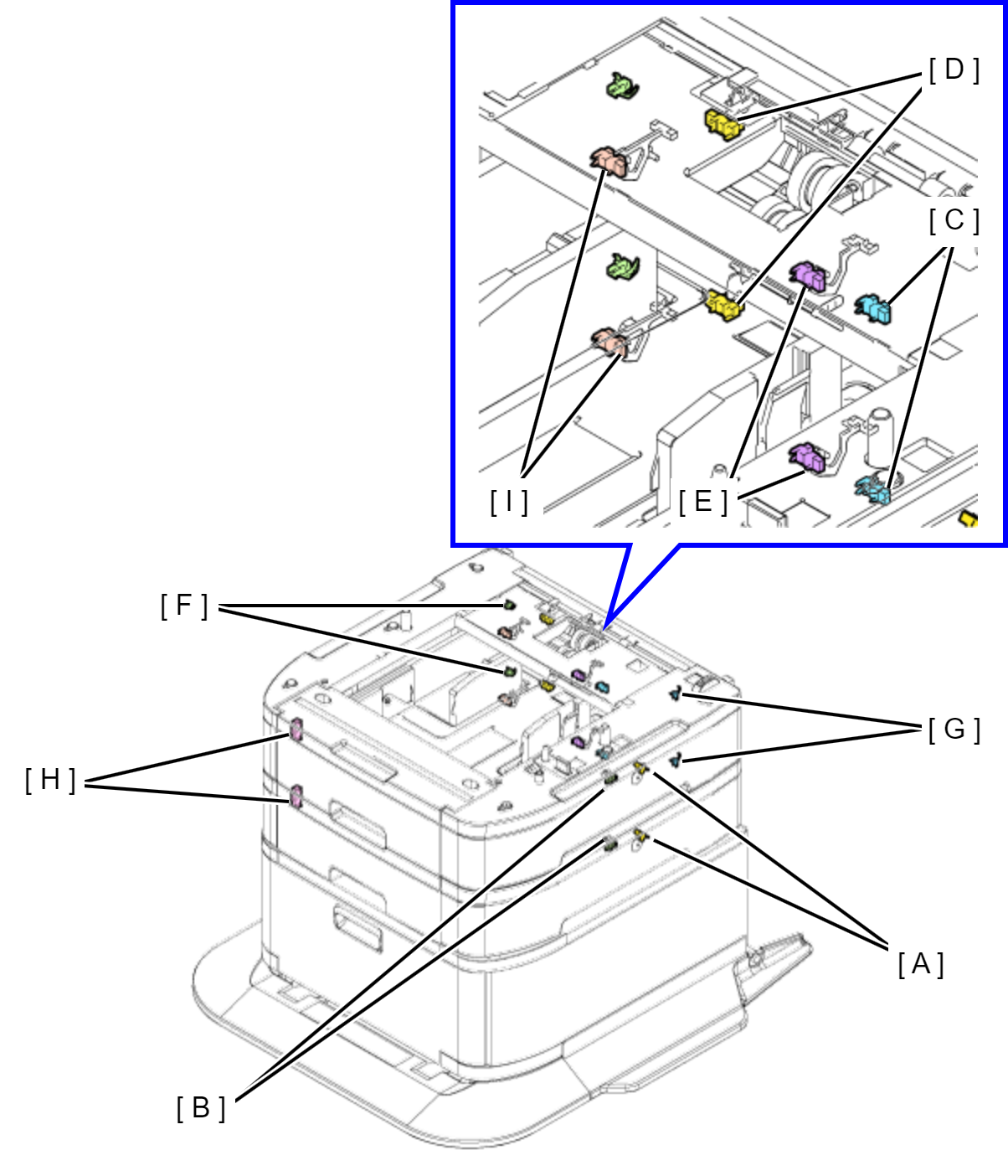

| ASF Encoder (A) |
Used for ASF motor operation control. |
Transmission type photo interrupter (3.3VDC±5%) |
| Lift Phase Sensor (B) |
Used for detecting the phase of lift motor driving. |
Transmission type photo interrupter (3.3VDC±5%) |
| Hopper Up/down Sensor (C) |
Detects the up/down state of the hopper. |
Transmission type photo interrupter (3.3VDC±5%) |
| Feed Sensor (D) |
Used for paper conveyance detection from the pickup roller. |
Transmission type photo interrupter (3.3VDC±5%) |
| Paper Detection Sensor (E) |
Detects whether or not there is paper inside the paper cassette. |
Transmission type photo interrupter (3.3VDC±5%) |
| Cassette Detection Sensor (F) |
Detects the insertion state of the paper cassette. |
Mechanical contact (3.3 VDC ±5%) |
| Jam Processing Cover Sensor (G) |
Detects the open/closed state of the paper jam clear cover. |
Mechanical contact (3.3 VDC ±5%) |
| Cassette Paper Size Sensor (1) (H) |
Detects the edge guide position of the cassette to judge the size of the loaded paper.(Judge the paper width at the end guide position) |
Mechanical contact (3.3 VDC ±5%) |
| Cassette Paper Size Sensor (2) (I) |
Detects the size of the paper loaded in the paper cassette. (Paper width detection) |
Transmission type photo interrupter (3.3VDC±5%) |
