Unlocking the CR Unit
CR Unlock (Service Support Mode)
, and unlock the CR Unit.CR Unlock (Hardware)
- Front Cover Assy.
- Front Inner Housing Center.

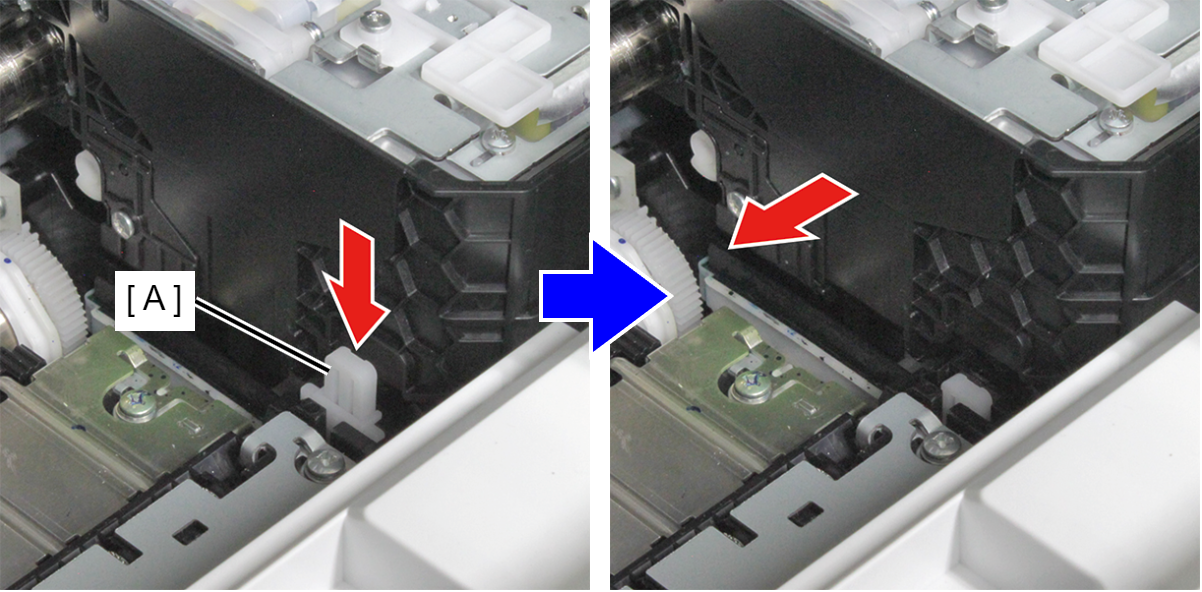

- While holding down the CR lock lever (A), move the CR Unit.
