30201 Motor

You can operate each part displayed on the menu and check its situation.

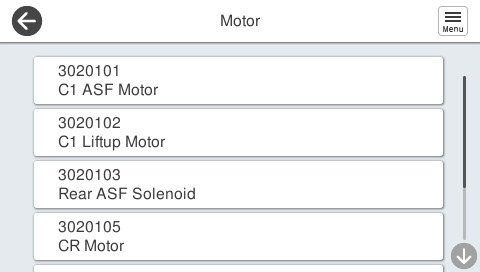

Menu list
Program No. Menu Name Judgment method Remarks
3020101 C1 ASF Motor Press [Execution] and check the motor operation sound. ---
3020102 C1 Liftup Motor Press [Start] and check the motor operation sound. ---
3020103 Rear ASF Solenoid Press [Start], and check the operation sound of the Solenoid and operation of the Rear ASF hopper/paper return lever. ---
3020105 CR Motor Press [Start] and check the motor operation sound. ---
3020106 PF Motor Press [Start] and check the motor operation sound. ---
3020108 Ink Supply Pump 0 Press [Start] and check the motor operation sound. ---
3020109 Ink Supply Pump 1 Press [Start] and check the motor operation sound. ---
Procedure
  1. Start service support mode. (Starting Service Support Mode)
  2. Select [03 Failure Verification].

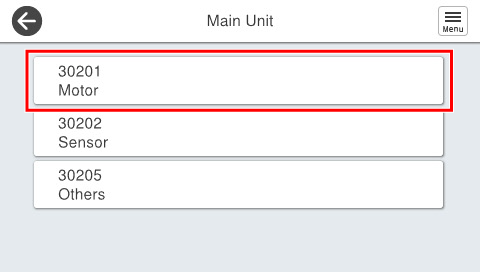

  3. Select [302 Main Unit].
  4. Select [30201 Motor].
  5. Select the menu the user wishes to execute.

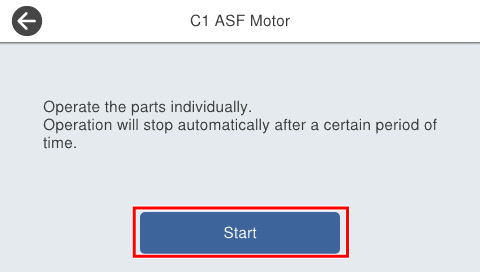

  6. Press [Start].
