Option Pick Up Roller

Adjustment / 調整

When replacing this part, you need to run the menu from the service support mode before replacing it.

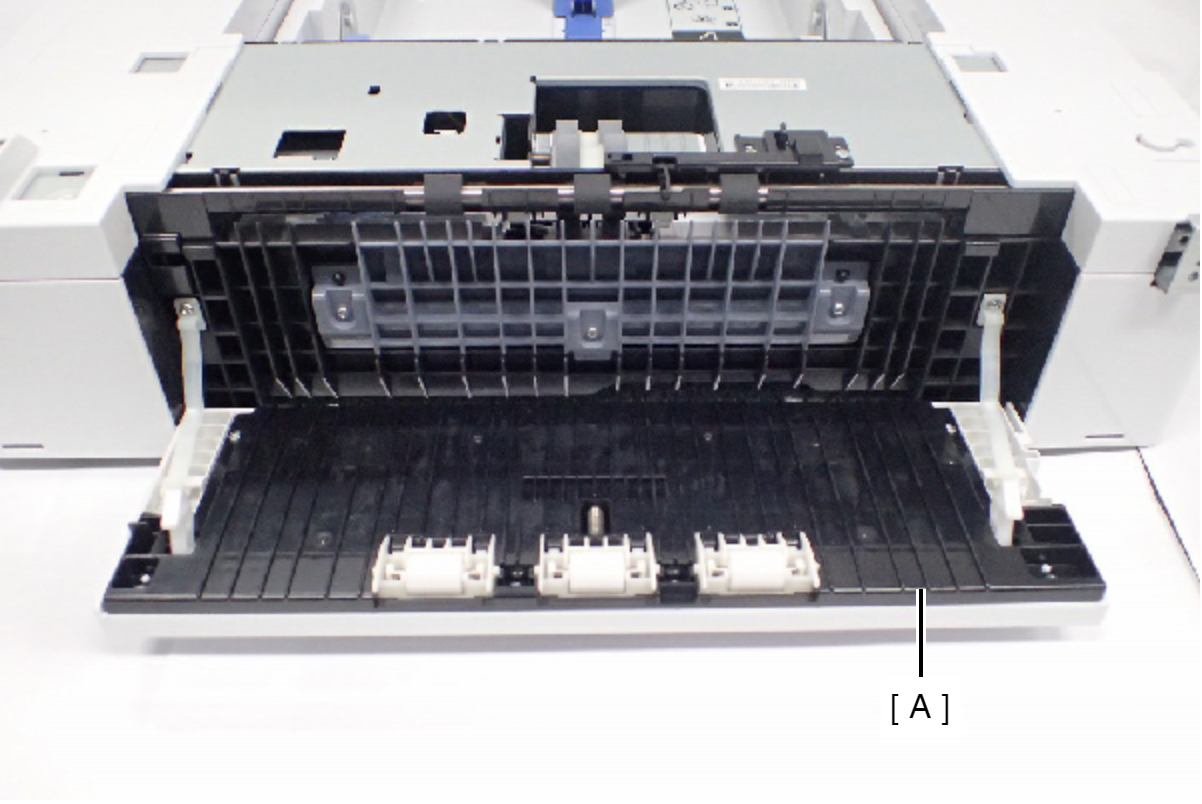

  1. Open the Option Rear Cover (A).

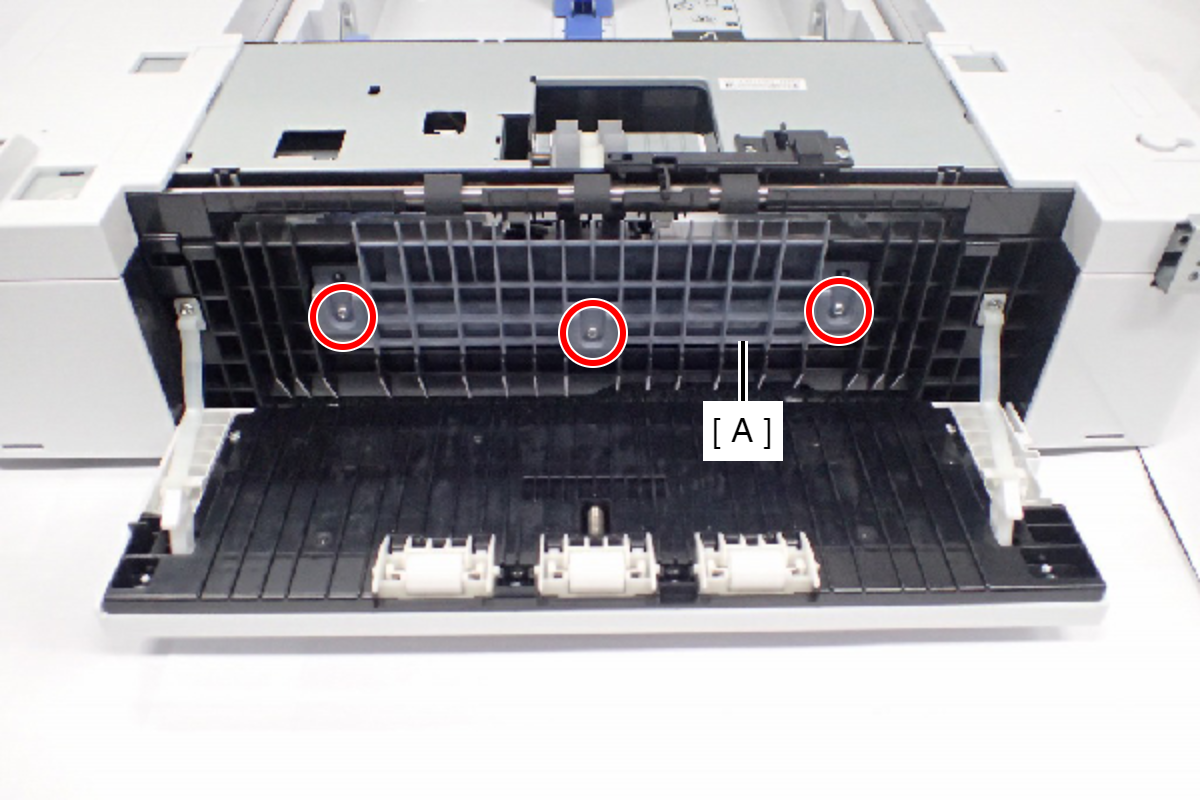

  2. Remove the three screws, then remove the Option Upper Rear Housing (A).

    • : C.P.SCREW-3x8-F.ZN-3C
  3. Remove the Option Paper Cassette (A).

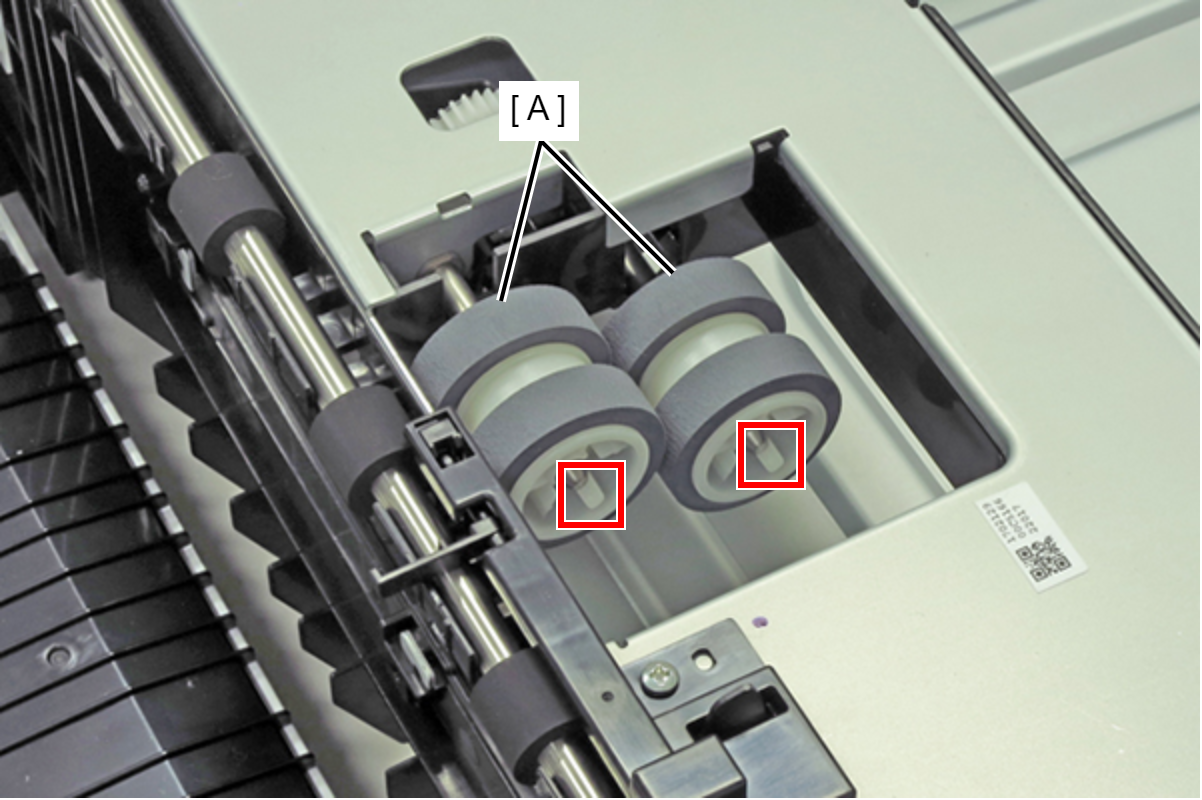

  4. Disengage the hook, then remove the Option Pick Up Roller (A).

Adjustment / 調整

After replacing this part, you need to run the menu from the service support mode.

(If you ran the Before-replacement menu before replacing the part, it will start automatically when you turn the power on.)
