# ADF Reinforcing Plate Front

1. Remove the two screws.


   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
2. Disengage the two hooks by sliding the Right SC Cover (A) toward the rear of the product, then remove it.

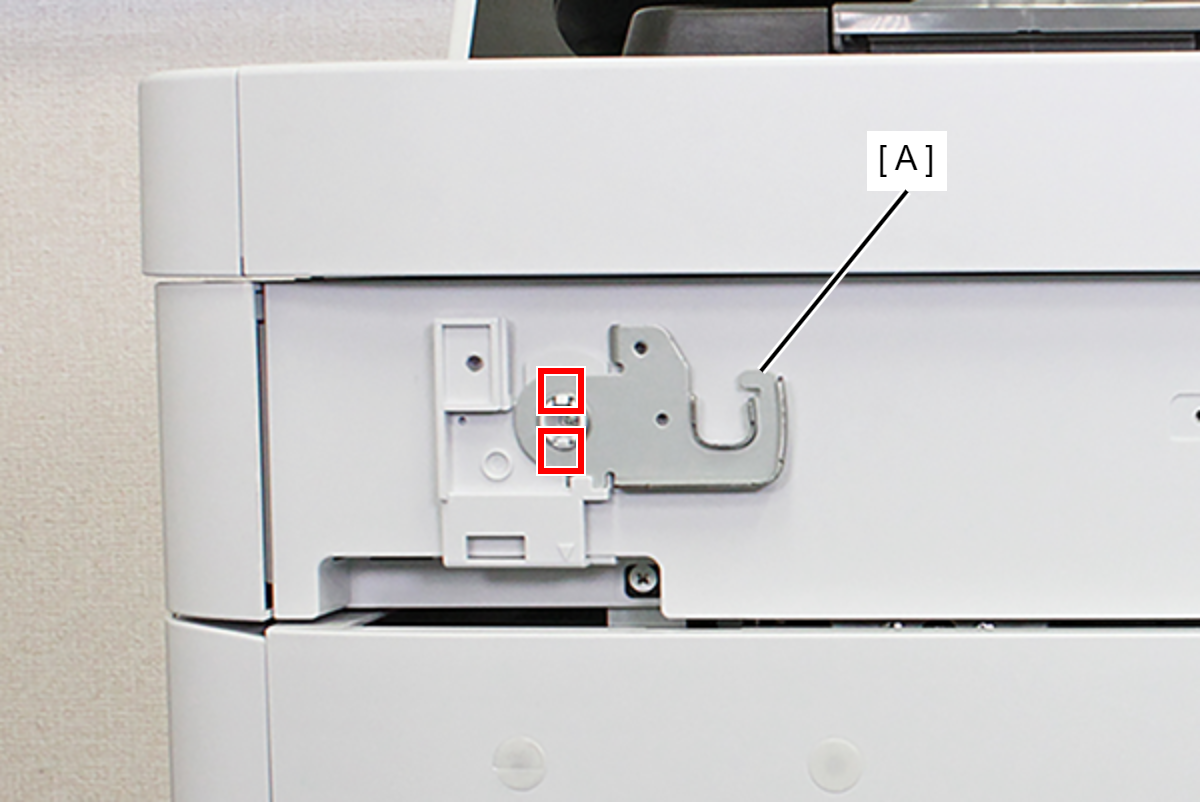

3. Release the two hooks and remove the ADF Stopper (A).

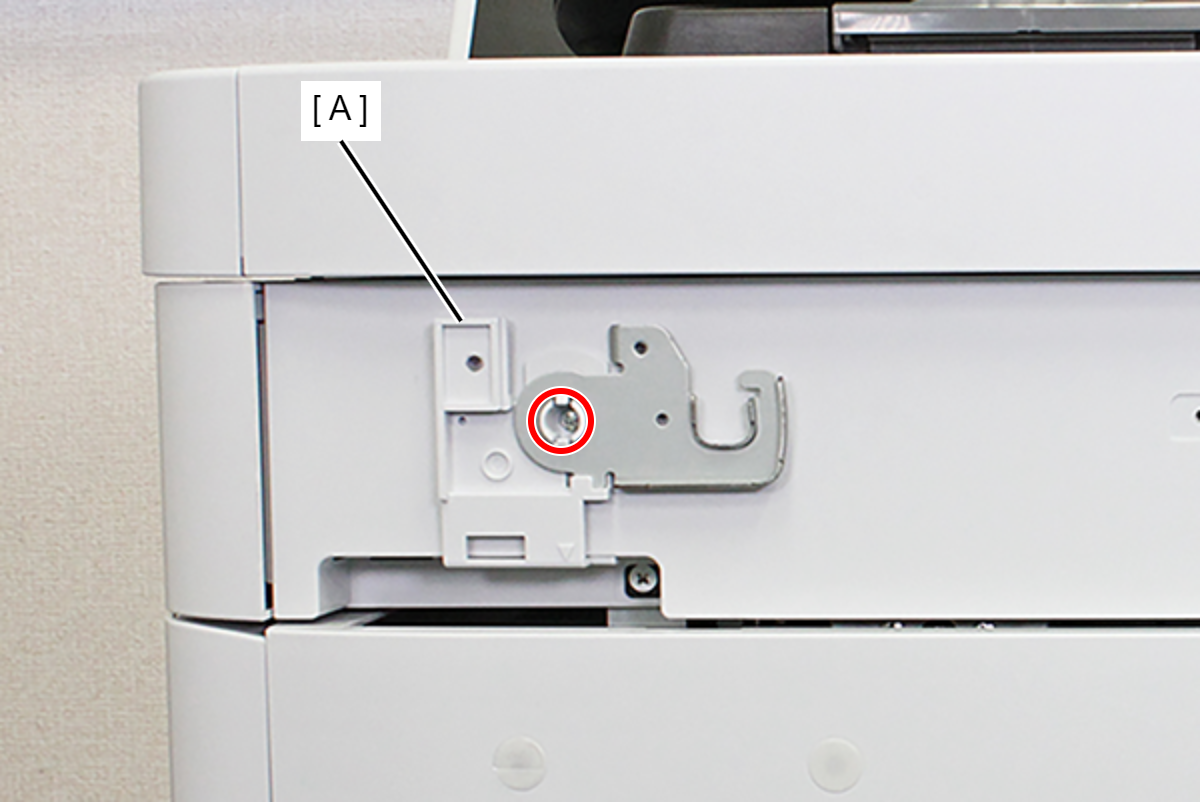

4. Remove the screw, and remove the ADF Reinforcing Plate Front (A).


   • : C.B.S-TITE-R-SCREW-3x8-F.ZN-3C
