ADF Board

  1. Remove the 5 screws, then remove the Rear ADF Cover Assy (A).

    • : C.SHOULDER S-TITE,3X5
  2. Disengage the two hooks and the two tabs, then remove the Rear ADF Cover Assy (A).
  3. Remove the cables listed below from the connectors of the ADF Board.
    • Cable (USB) (CN823) (With hook)
    • Cable (CN820)
  4. Remove the screw.

    • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
  5. Remove the ADF Board Cover (A) while releasing the hook.

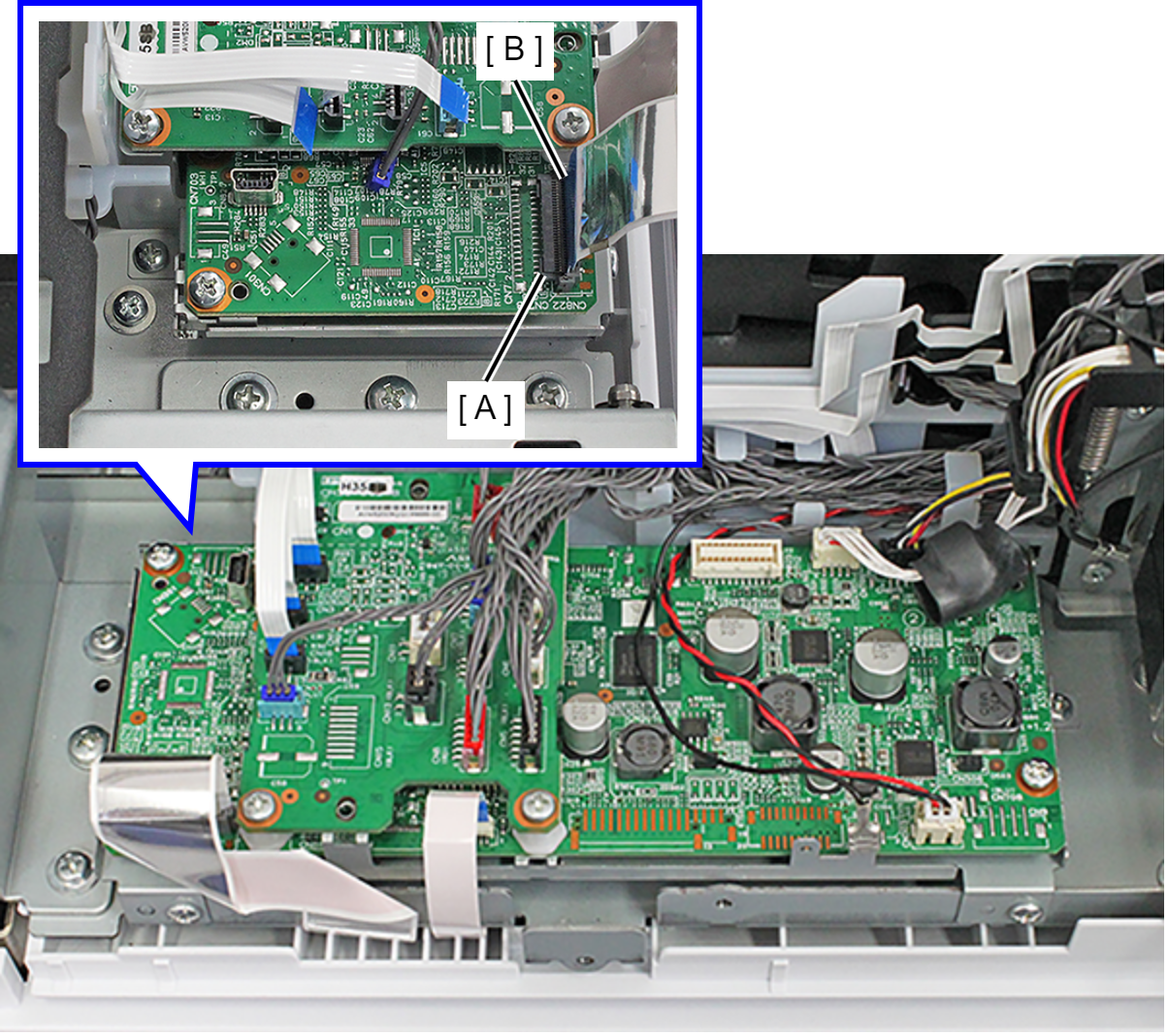

  6. Raise the Connector Lock (A), and remove the FFC (CN822) (B).

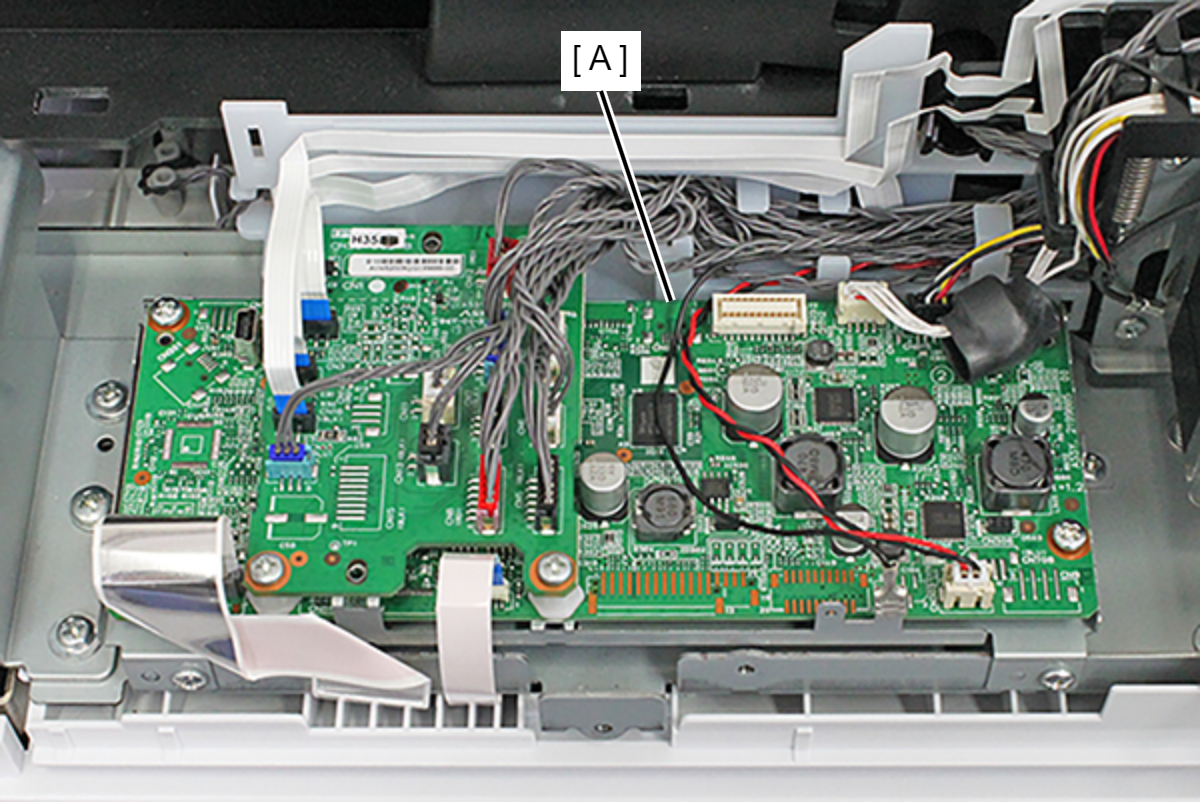

  7. Remove the cable/FFC from all connectors of the ADF Board (A).

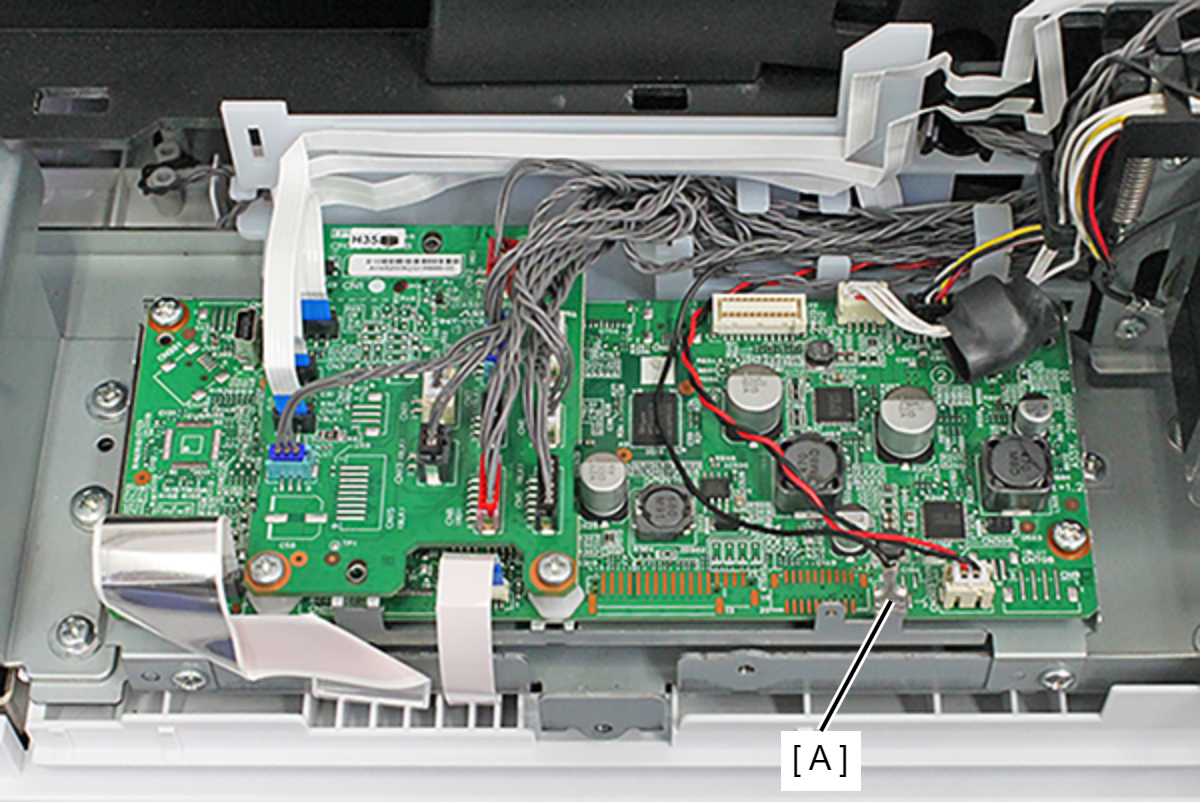

  8. Remove the Ground Terminal (A).

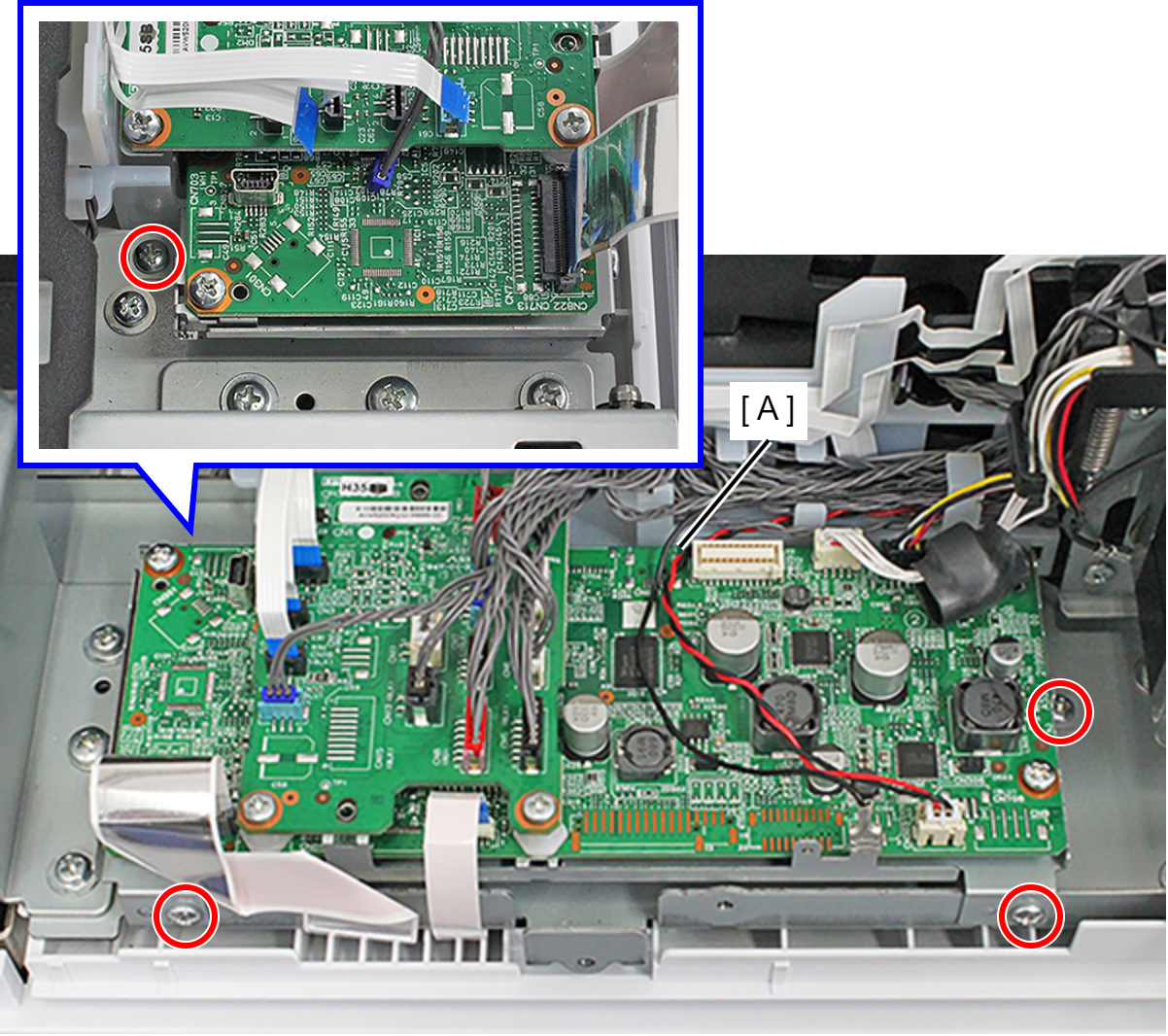

  9. Remove the four screws, and remove the ADF Board (A).

    • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
