Ink Pack Tray (BK)
- Move the Lock Lever (A) in the direction of the arrow to open the Ink Pack Cover (B).

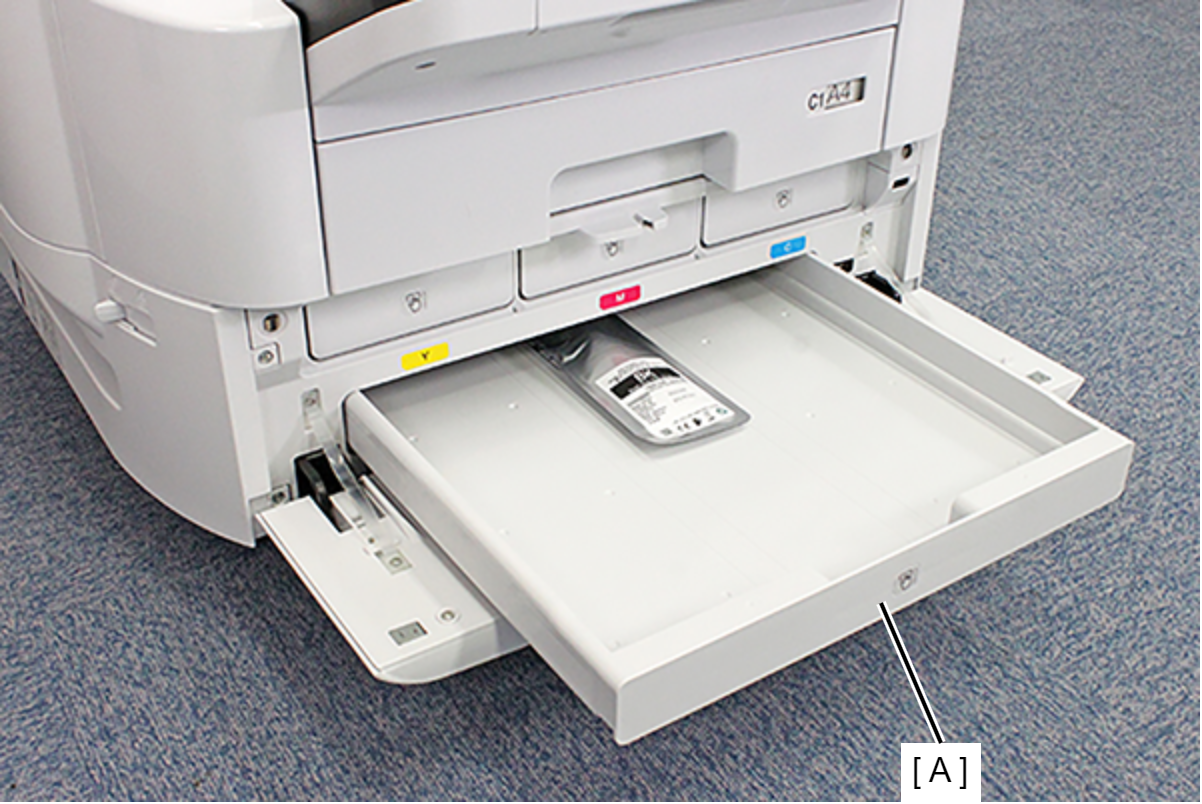

- Pull out by pushing the Ink Pack Tray (BK) (A).
