20112 Gradation Pattern

Program No. Program Name Specifications Pattern Image
(Paper Feed Direction: Arrow Direction)		 Target Image Quality Defect
20112 Gradation Pattern
  • Judgment method
    • Any printing abnormalities such as Missing dots, mixed colors, or massive missing dots?
  • Paper size: A4/Letter
  • Paper type: Plain paper
  • Number of prints: 2

  • Missing dots, mixed colors, massive missing dots
Procedure
  1. Start service support mode. (Starting Service Support Mode)
  2. Select [02 Check Pattern Print].
  3. Select [201 Check Pattern].

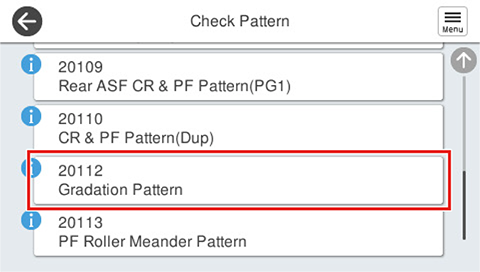

  4. Select [20112 Gradation Pattern].

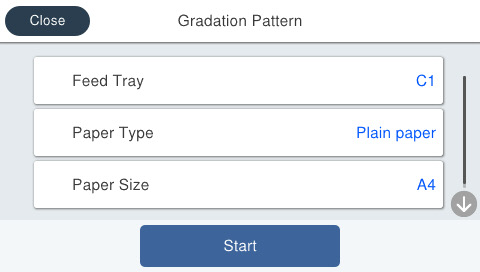

  5. Press each setting item button to make print settings.


    Setting Items Choice Remarks
    Feed Tray C1, C2, C3, C4, Rear ASF ---
    Paper Type Plain Paper Setting change not possible
    Paper Size A4 / Letter ---

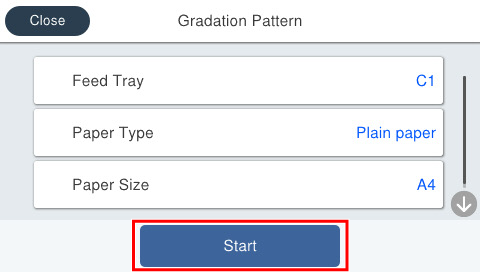

  6. Load paper in the selected feed tray and press [Start].
  7. Check the output pattern status.
    (Refer to Remedy of When the Check Pattern is not appropriate “Gradation Pattern”.)
