# 60129 Rear ASF PE Adj.

#Overview

Use software to correct the paper detection position offset caused by variations in the PE sensor attachment position and print head position.

#Required Tool

• Plain paper (A4 or Letter)

#Procedure

1. Start service support mode. (Starting Service Support Mode)
2. Select [06 Individual Adjustment].

3. Select [601 Printer/Additional Cassette].

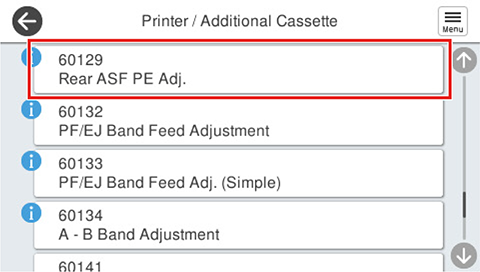

4. Select [60129 Rear ASF PE Adj.].

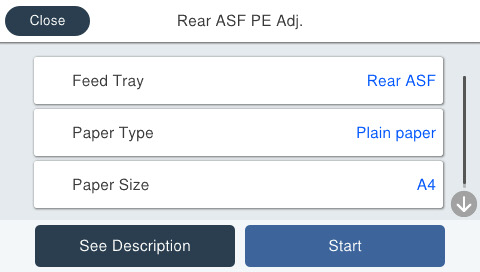

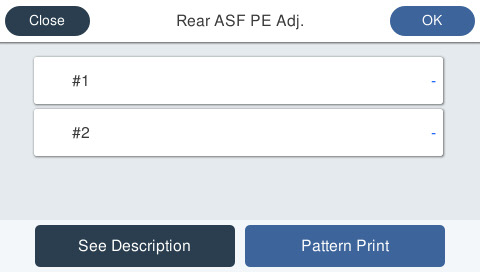

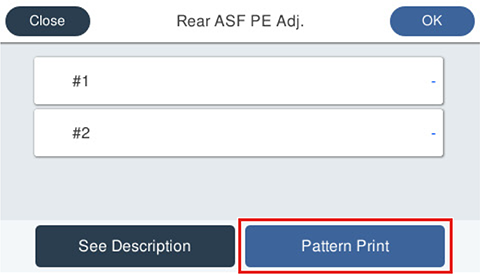

5. If the following screen is displayed, press [Pattern print].


6. Press each setting item button to make print settings.



   Setting Items	Choice	Remarks
   Feed Tray	Rear ASF	Setting change not possible
   Paper Type	Plain Paper	Setting change not possible
   Paper Size	A4 / Letter	---

7. Load paper in the selected feed tray and press [Execute]. Adjustment patterns are printed on 1 sheet.

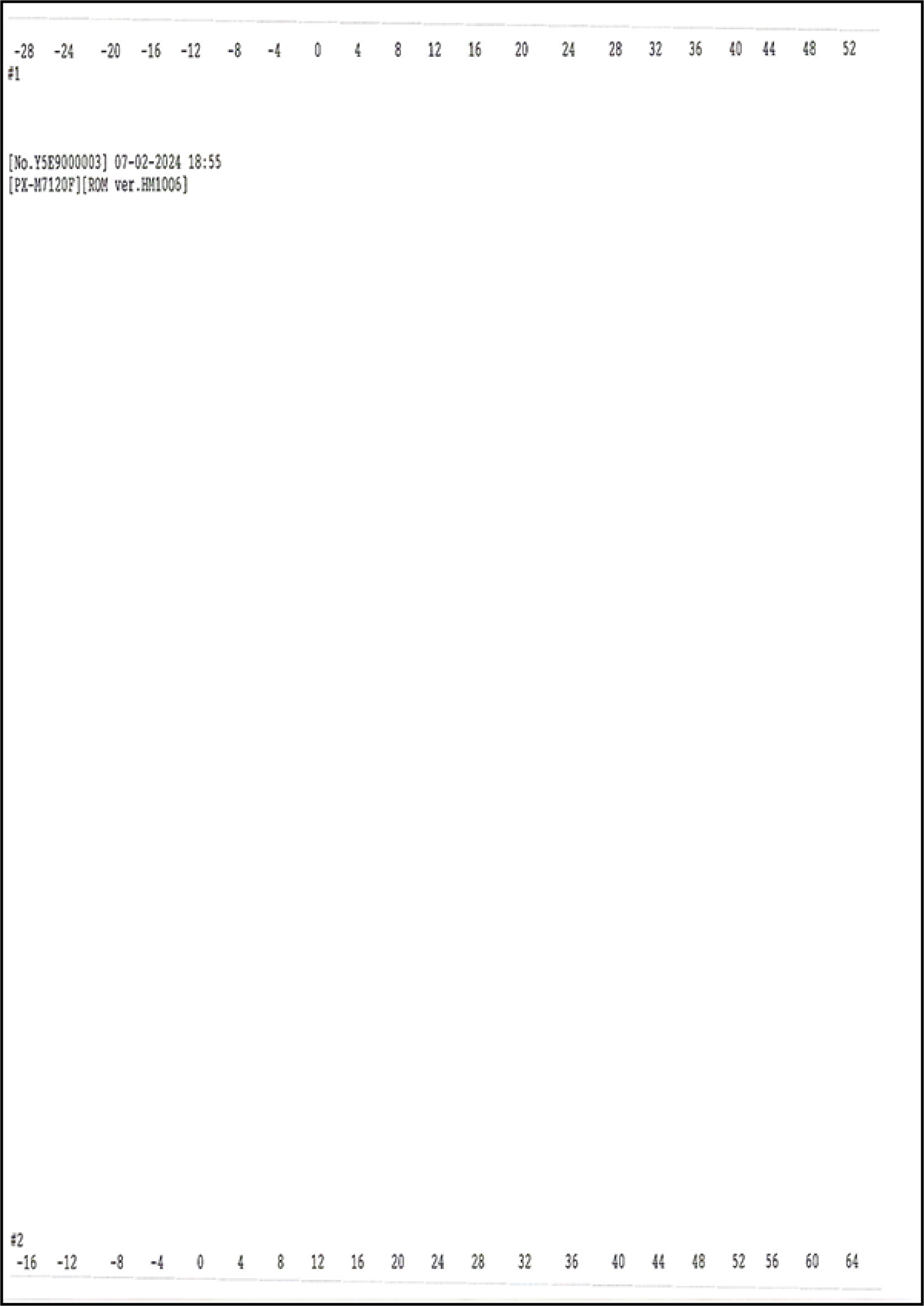

   • Adjustment pattern

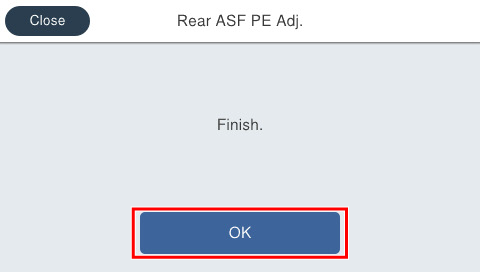

8. Press [OK] on the following screen.




9. Check the adjustment pattern and determine the adjustment values for each of #1 and #2 based on the judgment method.

   Check Point / チェックポイント

   Adjustment value judgment method From the stepped patterns printed on the top and bottom edges of the paper, select the numerical value that is 5 mm from the edge of the paper.

10. Press on [#1] and [#2] and enter the adjustment value.

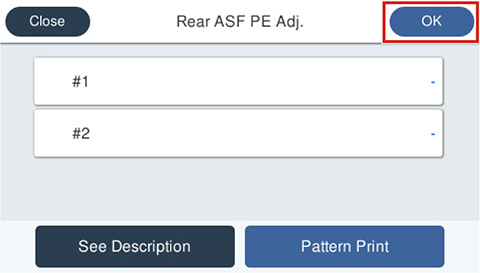

11. Press [OK] on the upper right to complete the adjustment. The adjusted values are saved in the printer.


Note / 補足

If there is no pattern satisfying the judgment method among the adjustment patterns, there is a pattern satisfying the judgment method outside the scope of pattern printing. Therefore, select the best pattern and enter the adjustment value. Following this, again print the adjustment pattern and determine the adjustment value.
