# Feed Lever

1. Open the Duplex Print Cover (A).

2. Remove the Duplex Print Assy (A).


3. Remove the three screws, then remove the Left Duplex Print Guide (A).



   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

   Check Point / チェックポイント

   When removing the screw in the step below, use a stubby screwdriver whose total length is 40 mm or shorter.

4. Lift the Middle Duplex Print Guide (A) by hooking a finger on the angle hole (B), and remove it.

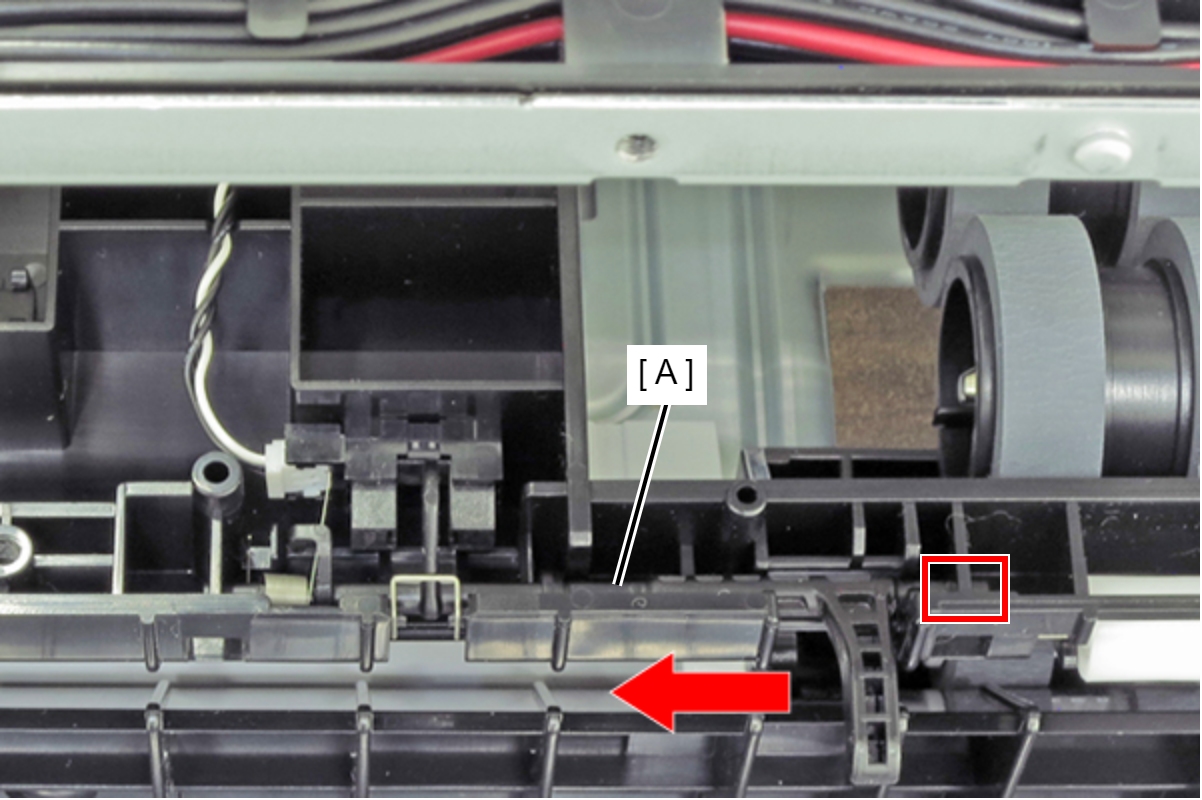

5. Slide the Feed Lever (A) leftward, then pull it out through the hole of the base.




   Assembly / 組み立て

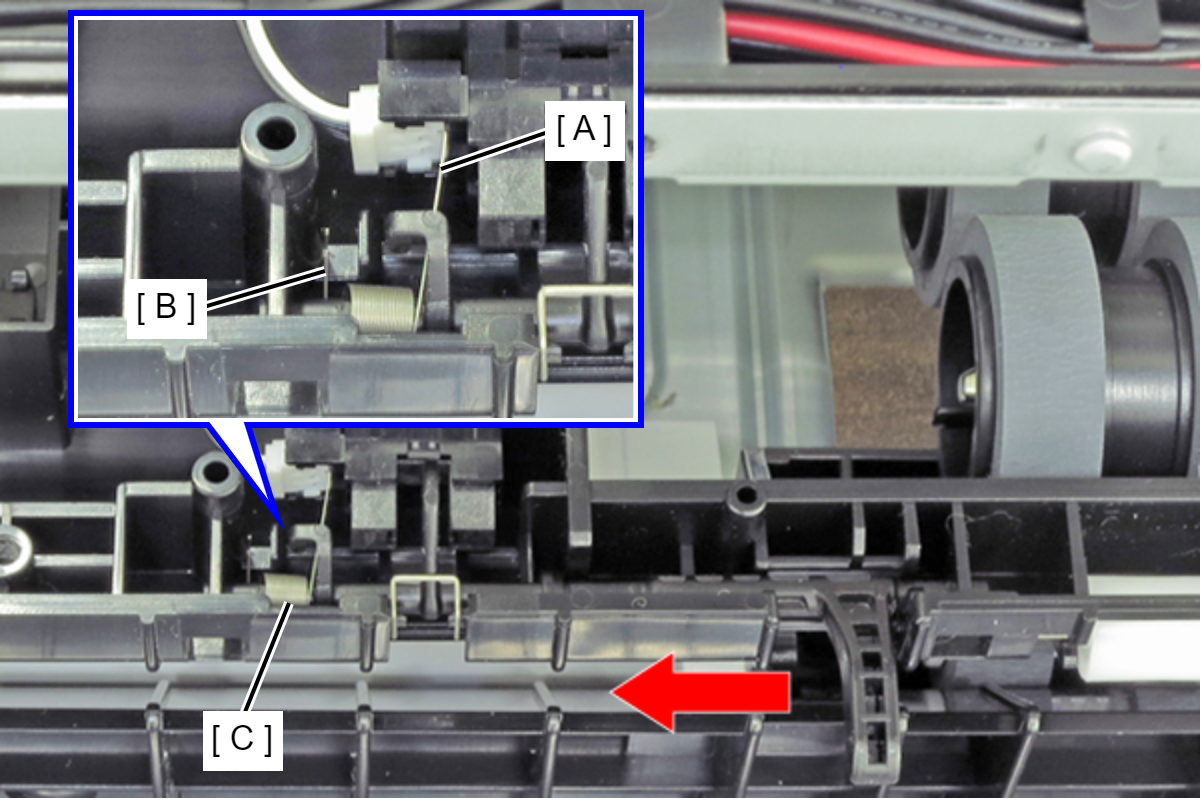

   Engage long leg (A) and short leg (B) of the spring (C), and attach it.
