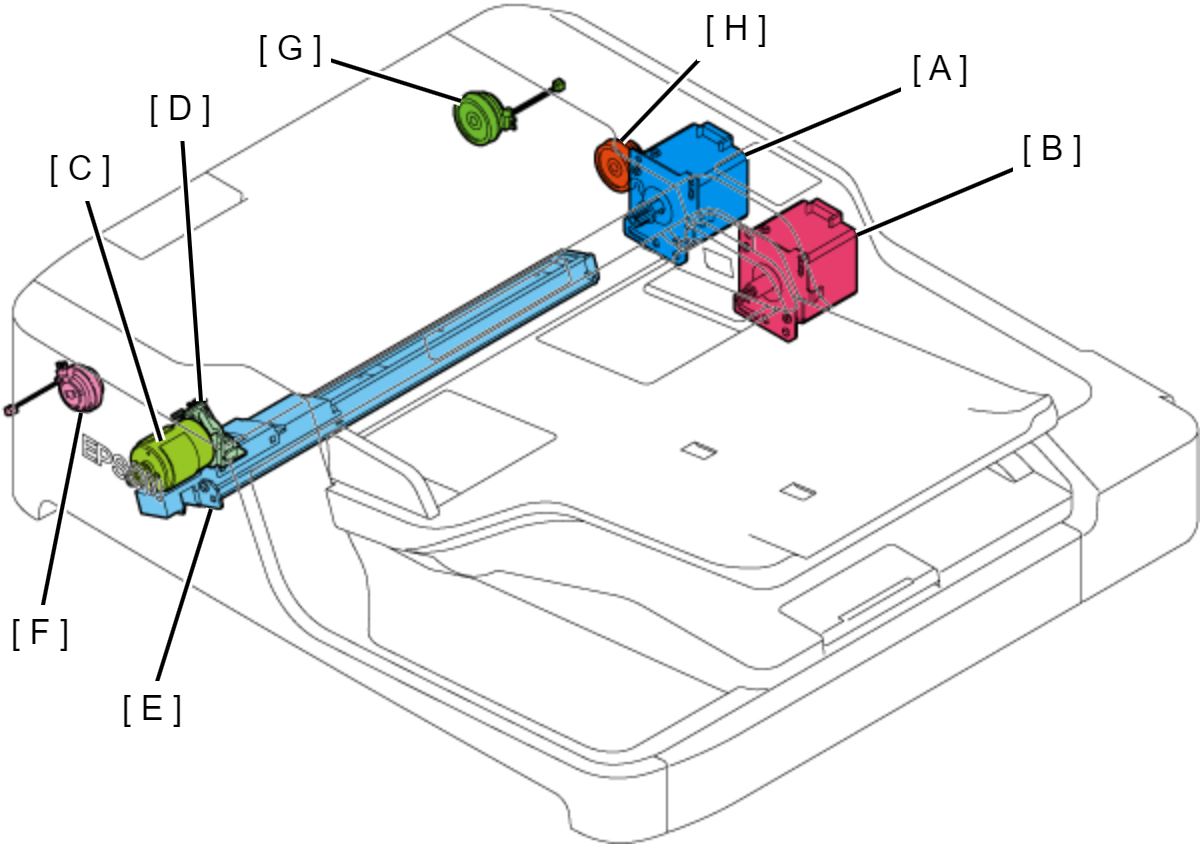

Motor/Encoder/Clutch/CIS Module

Name Function Type
ALD Motor (A)

Used for driving the Pickup Roller, Separation Roller, Acceleration Roller, Register Roller, and the Set Guide Lever.

Stepper motor
(24VDC±5%)
ADF Motor (B)

Used for driving the PF1 Roller, PF2 Roller, and the PF3 Roller.

Stepper motor
(24VDC±5%)

ADF Release Motor (C)

Used for moving the Pickup Roller up or down.

DC Motor
(42VDC±5%)

ADF Release Encoder (D)

Used for controlling operation of the ADF Release motor.

Transmission type photo interrupter
(3.3VDC±5%)
CIS Module (E) Used for reading the back side when duplex scanning. CIS Imaging Sensor
Feed Driven Clutch

Controls driving force transmission to the Register Roller.

Electromagnetic clutch
(24VDC±10%)
Brake Driven Clutch (G) Controls rotation of the Register Roller.

Electromagnetic clutch
(24VDC±10%)
LD Driven Clutch (H)

Controls driving force transmission to the Pickup Roller and to the Separation Roller.

Electromagnetic clutch
(24VDC±10%)
