20114 PE Sensor Check Pattern Print

Program No. Program Name Specifications Pattern Image
(Paper Feed Direction: Arrow Direction)		 Target Image Quality Defect
20114 PE Sensor Check Pattern Print
  • Used for Failure Verification “3020205 PE Sensor”.
  • Paper size: A4/Letter
  • Paper type: Photo matte paper

  • Number of prints: 1

---
Procedure
  1. Start service support mode. (Starting Service Support Mode)
  2. Select [02 Check Pattern Print].
  3. Select [201 Check Pattern].

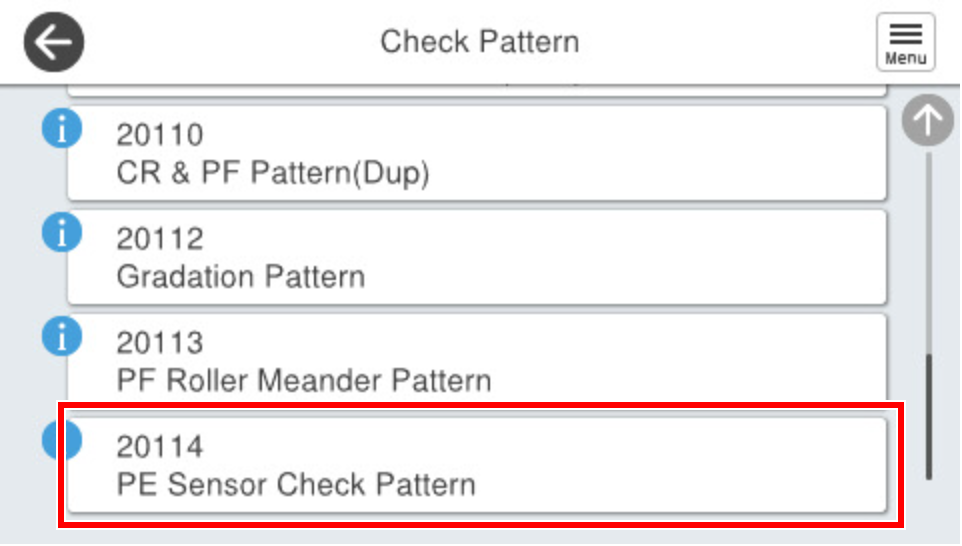

  4. Select [20114 PE Sensor Check Pattern Print].

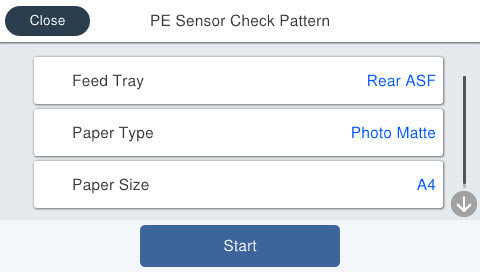

  5. Press each setting item button to make print settings.


    Setting Items Choice Remarks
    Feed Tray Rear ASF Setting change not possible
    Paper Type Matte Paper-Heavy weight/Premium Presentation Paper Matte Setting change not possible
    Paper Size A4 / Letter ---

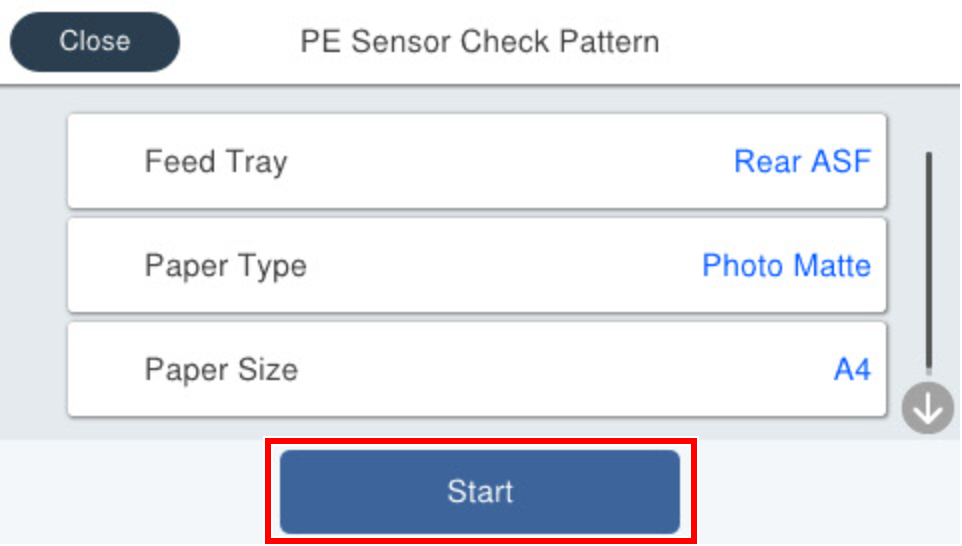

  6. Load paper in the selected feed tray and press [Start].


    Check Point / チェックポイント

    Use the printed pattern for 3020205 PE Sensor.
