Cassette Paper Size Sensor Holder

  1. Remove the three screws, then remove the Left Housing Assy (A) toward the rear of the product.

    • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
  2. Remove the Stacker Assy (A).


  3. Remove the Cassette Assy (A).
  4. Open the Front Cover Assy (A).
  5. While pressing the two hooks of the hinge (A), remove the Front Cover Assy (A) frontward.
  6. Remove the three screws fastening the Front Left Housing (A).

    • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
  7. Release the hook and remove the Front Left Housing (A).
  8. Remove the cable (B) from the connector (A).
  9. Remove the two screws, then remove the Cassette Papersize Detector Assy (A).
    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
  10. Release the two hooks and remove the Cassette Papersize Detector (A).

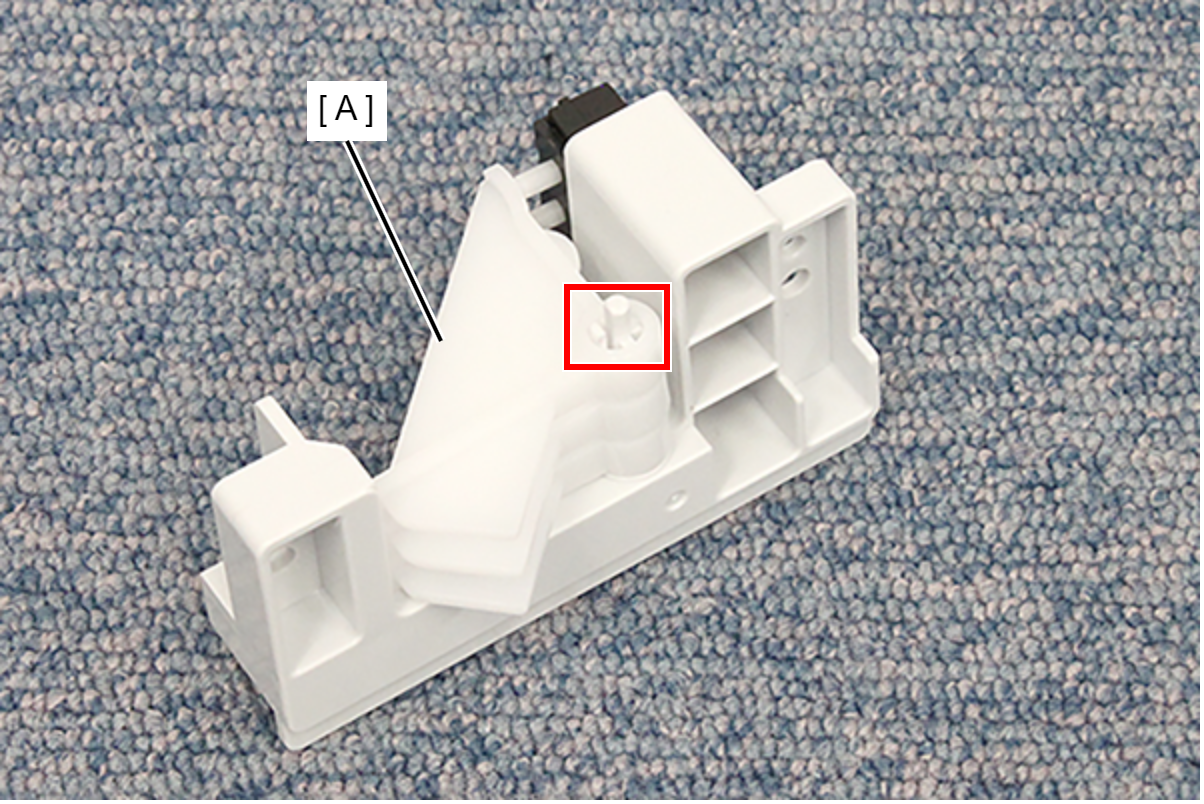

  11. Release the hook and remove the three Cassette Papersize Detector Levers (A).

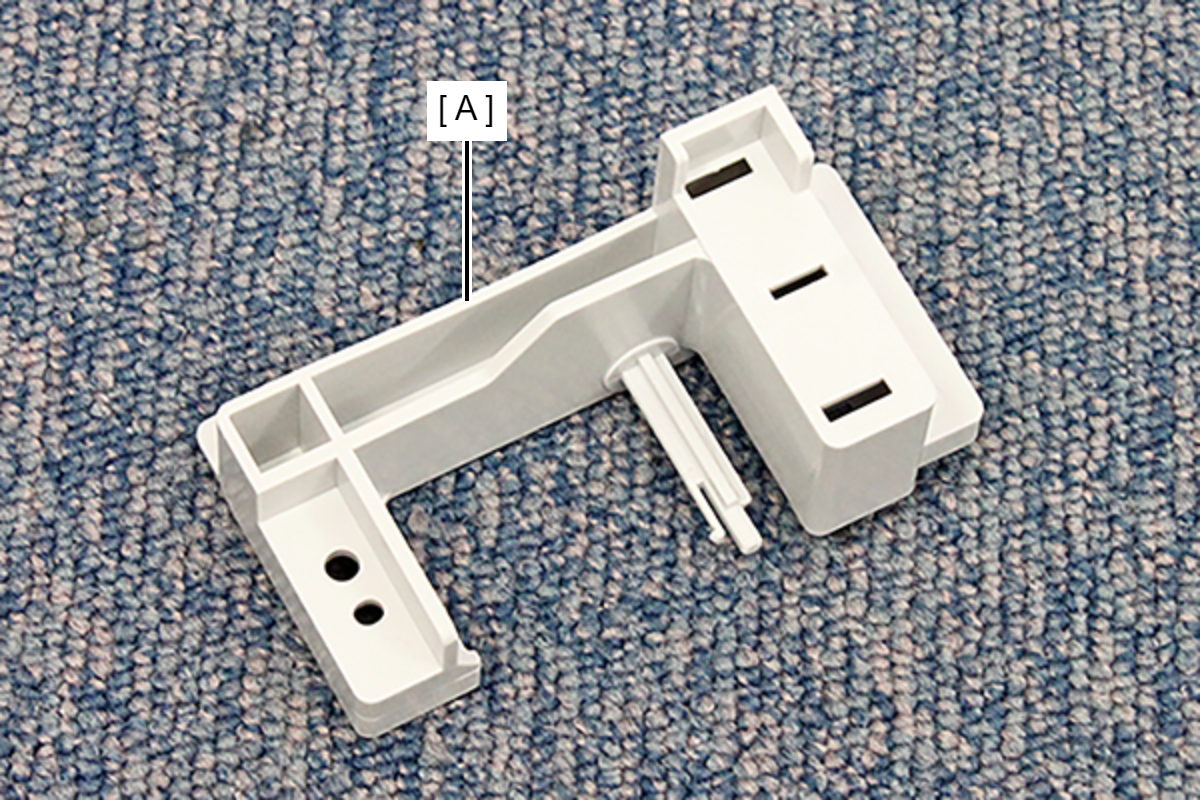

  12. Remove the Paper Size Sensor Holder (A).
