# PF Timing Belt

1. Remove the three screws, then remove the Left Housing Assy (A) toward the rear of the product.


   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
2. Remove the hole from the screw feet (A) and pull out the folded portion (C) of the PF Scale Protection Material (B).

3. Release the two hooks and remove the PF Scale Protection Material (A).

4. Remove the screw, then remove the Left PG Cam Screw Holder (A) with the screw.


   • : C.C.SCREW-3x6-F.ZN-3C
5. Remove the screw, then remove the Anti Static Brush Plate (A).

   • : C.B.S-TITE-SCREW-3x6-F.ZN-3C
6. Remove the E-ring (A), then remove the Spur Gear (B).

7. Mark (C) the location where the PF Belt Tension Stopper (A) and the PF Pulley Holder (B) touch.

8. Loosen the screw that secures the PF Belt Tension Stopper (A).


   • : C.B.S-TITE-P4-SCREW-3x8-F.ZN-3C
9. Remove the PF Belt Tension Stopper (A) feet (B) from the hole in the frame.

10. Release the hook by rotating the PF Belt Tension Stopper (B) in the direction of the arrow around the shaft (A), and remove the PF Belt Tension Stopper (B).

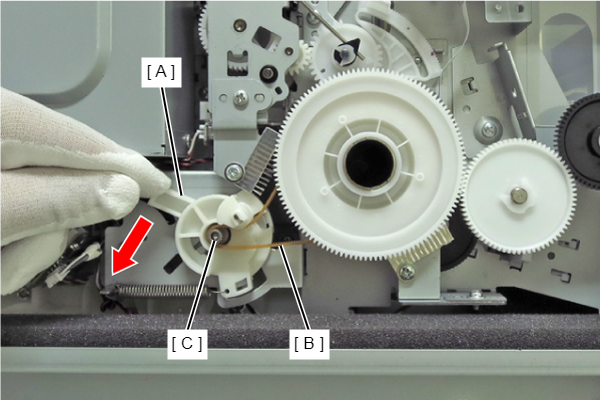

11. Press the PF Belt Tension Lever (A) downward to loosen the PF Timing Belt (B), then release the belt from the pinion gear (C) of the PF Motor.

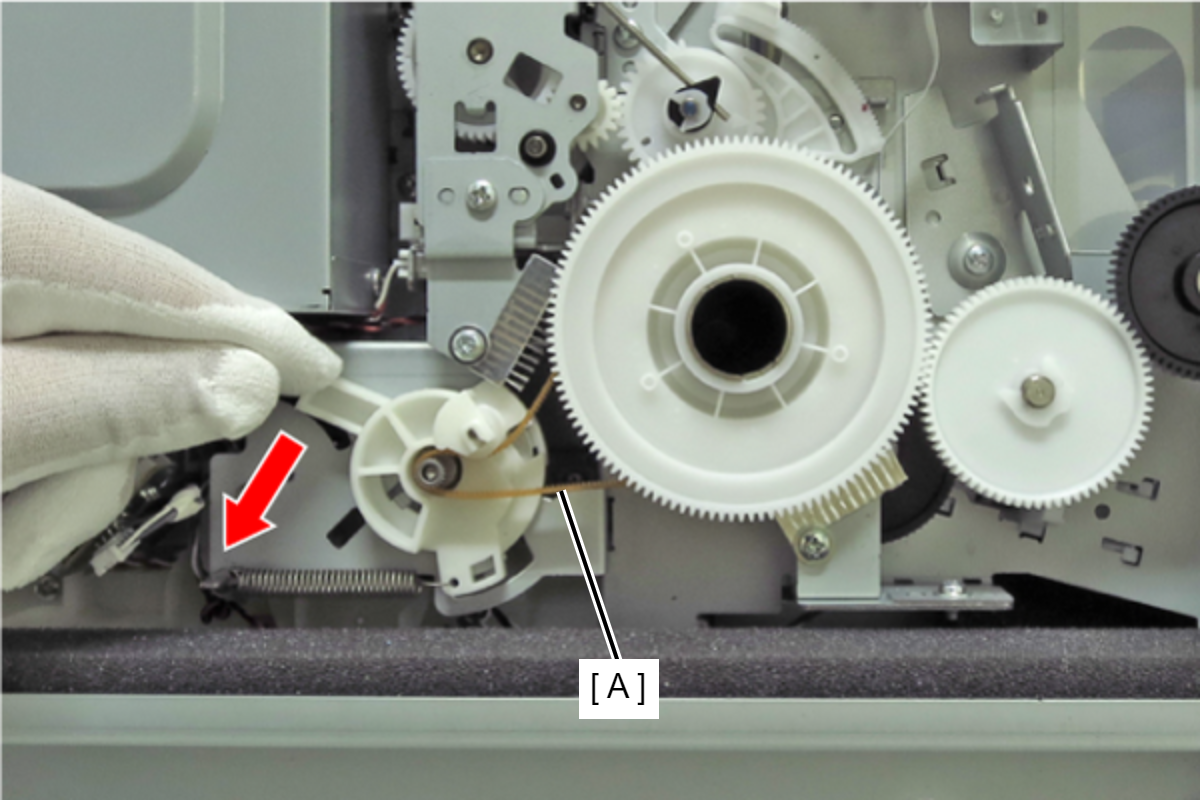

12. Remove the PF Timing Belt (A).
