60210 ADF Front CISM Position Auto Calibration
Procedure
- Start service support mode. (Starting Service Support Mode)
- Select [06 Individual Adjustment].
- Select [602 ADF/SCN].

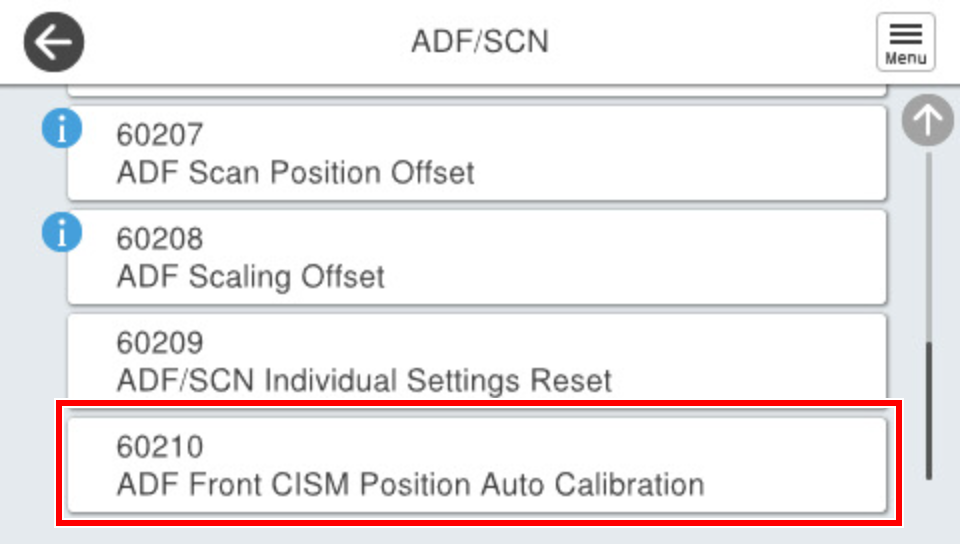

- Select [60210 ADF Front CISM Position Auto Calibration].

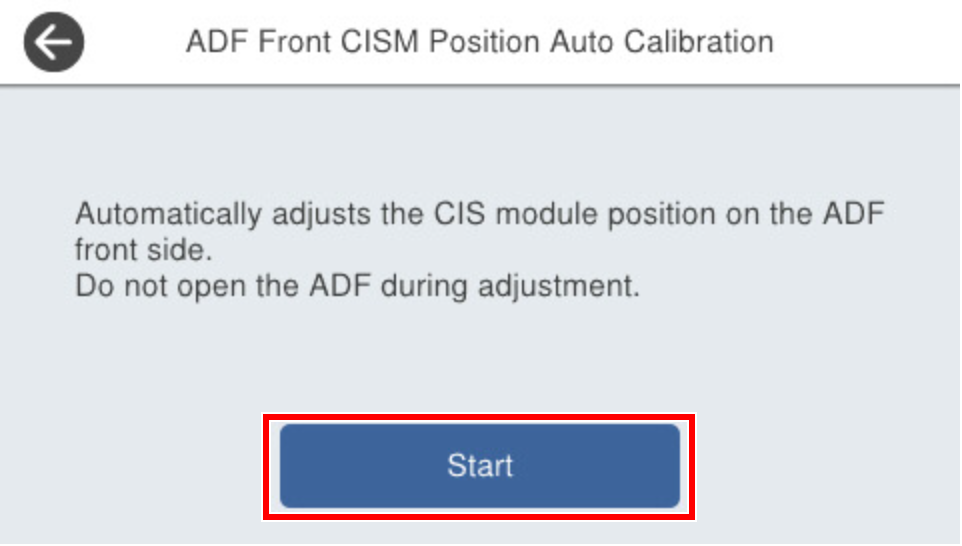

Press [Start].
