# Star Wheel Assy Before Parts Replacement

#Procedure

1. Start service support mode. (Starting Service Support Mode)
2. Select [05 Adjustment for Replacement Parts].

3. Select [501 Main Unit].

4. Select [50102 Paper Feed/Eject Parts].

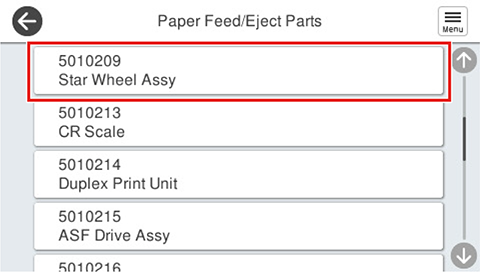

5. Select [5010209 Star Wheel Assy].

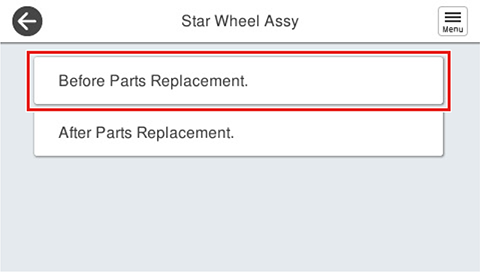

6. Select [Before Parts Replacement].

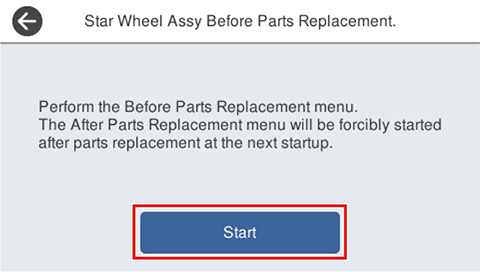

7. Press [Start].

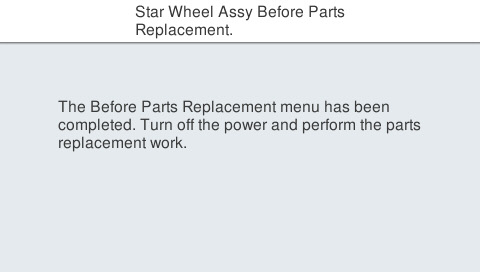

8. When the following screen appears, turn off the product.
   When the power of the product is turned on, the product starts in service support mode, and the “After replacement” screen of the Star Wheel Assy is displayed.
