# 60204 ADF Scanning Adj. (300dpi)

#Overview

Adjust the sub scaling (paper feed direction) for ADF scanning (300dpi).

#Required Tool

• ADF,CHART(D), A3-DS (Parts code: 1698220)

  • Side A

  • Side B


#Procedure

1. Start service support mode. (Starting Service Support Mode)
2. Select [06 Individual Adjustment].

3. Select [602 ADF/SCN].

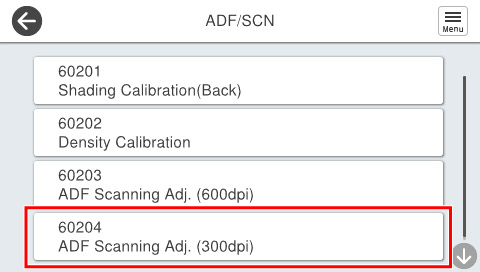

4. Select [60204 ADF Scanning Adj. (300dpi)].

5. Set the chart on the ADF tray and press [Start].




   Check Point / チェックポイント

   Chart setting direction Load the paper with the A side facing up and facing the paper feed slot so that the arrow is at the top.

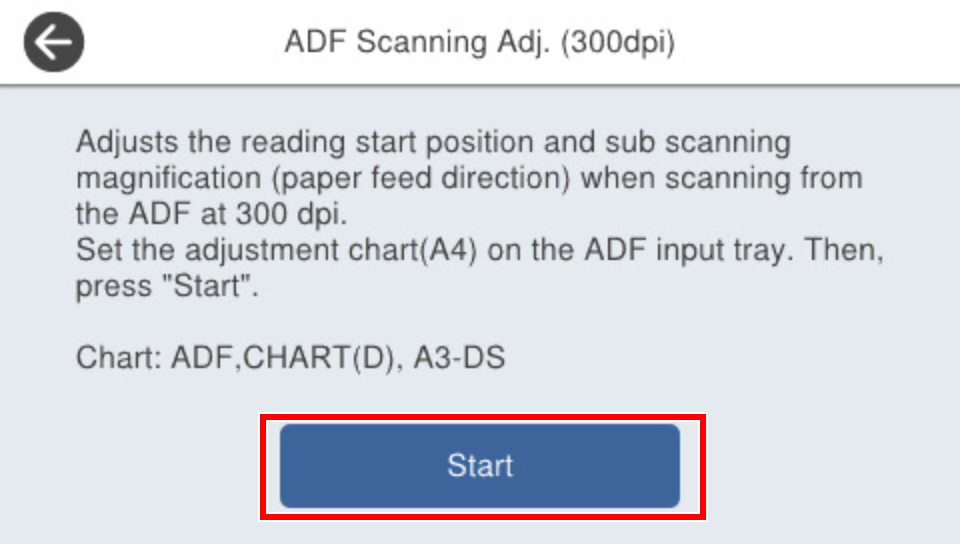

6. If the following screen is displayed, press [OK] to complete.




Check Point / チェックポイント

After execution, if “Adjustment failed” is displayed, either press [Initial value] to write the initial setting value, or press [Readjust] after setting the chart in the ADF tray and perform adjustment.
