C3 Pickup Roller After Parts Replacement
Procedure
- Turn the power ON.

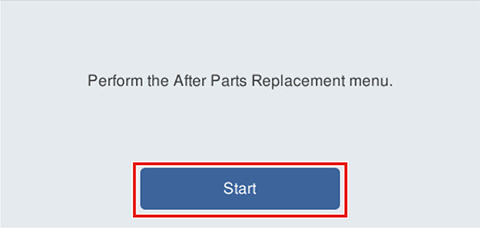

- Press [Start].
- Press [Start].
- Press [OK].
