# RIPS Drive Roller

1. Remove the screw on the rear side of the product, then remove the Paper Jam Clear Cover Holder (A).

   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
2. Disconnect the cable (B) from the connector of the Rear RIPS Cover Sensor (A).

3. Remove the four screws that secure the Rear RIPS Housing Assy (A).




   • : C.SHOULDER S-TITE,3X5
   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
4. Remove the Rear RIPS Housing Assy (A) pulling out the cable (C) through the hole (B) of the assy.




   Assembly / 組み立て

   Before reinstalling the Rear RIPS Housing Assy (A), remove the Paper Jam Clear Cover Sensor (B). After connecting the cable, install the sensor to the Rear RIPS Housing Assy.

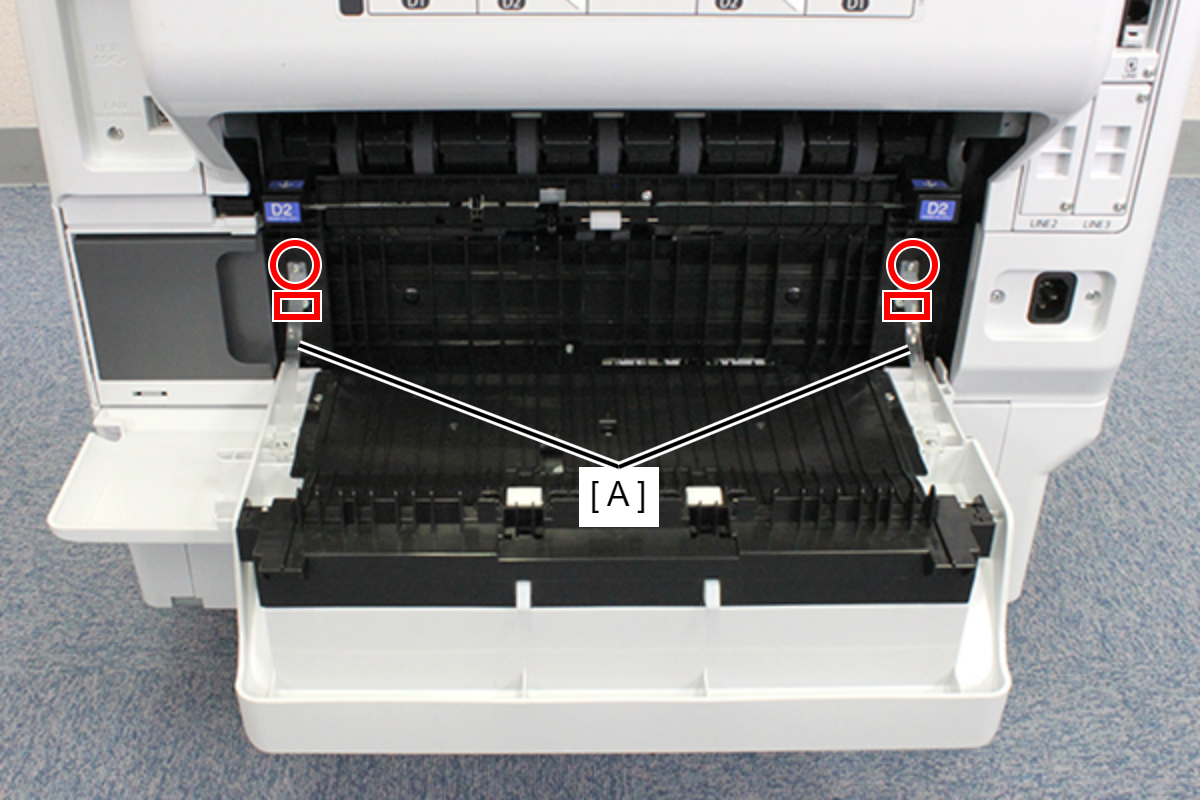

5. Remove the two screws and release each hook of the Rear Band (A).


   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C

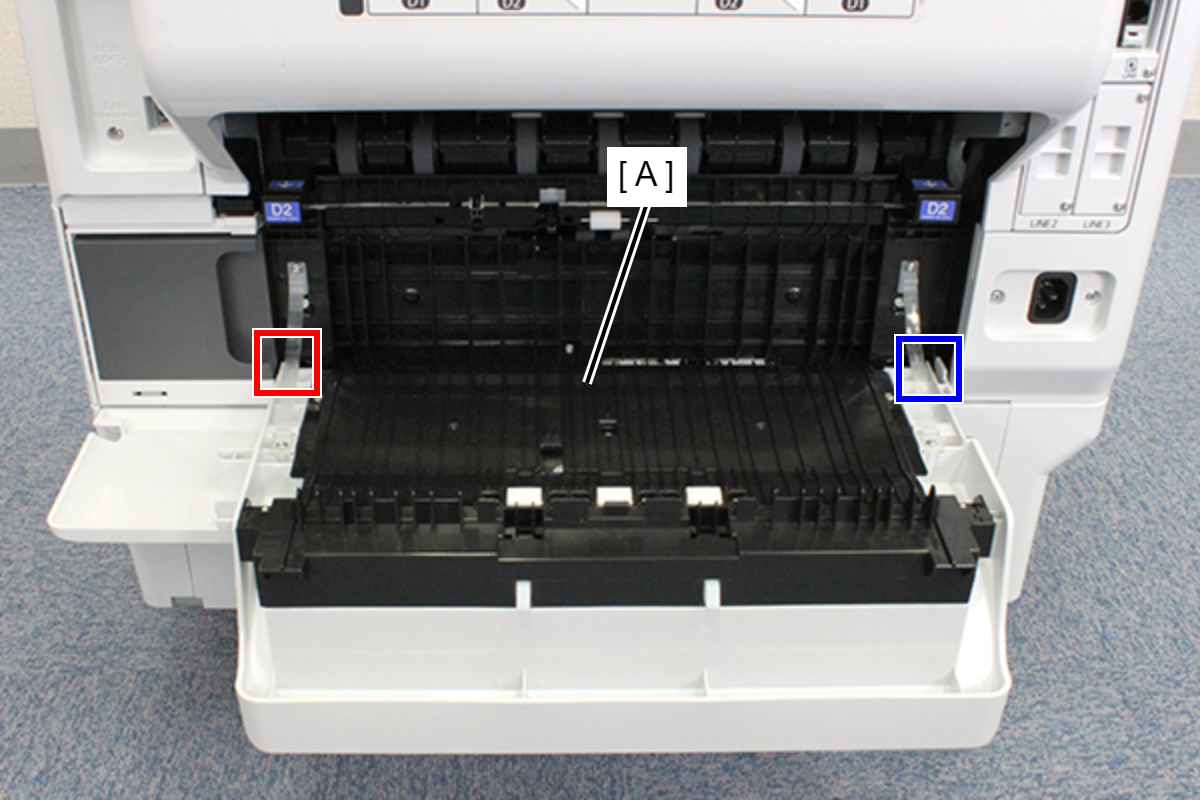

6. Remove the Dowel on the left side while pushing the Duplex Print Cover Assy (A) to the right side, and remove the Duplex Print Cover Assy (A) by removing the Dowel on the right side.

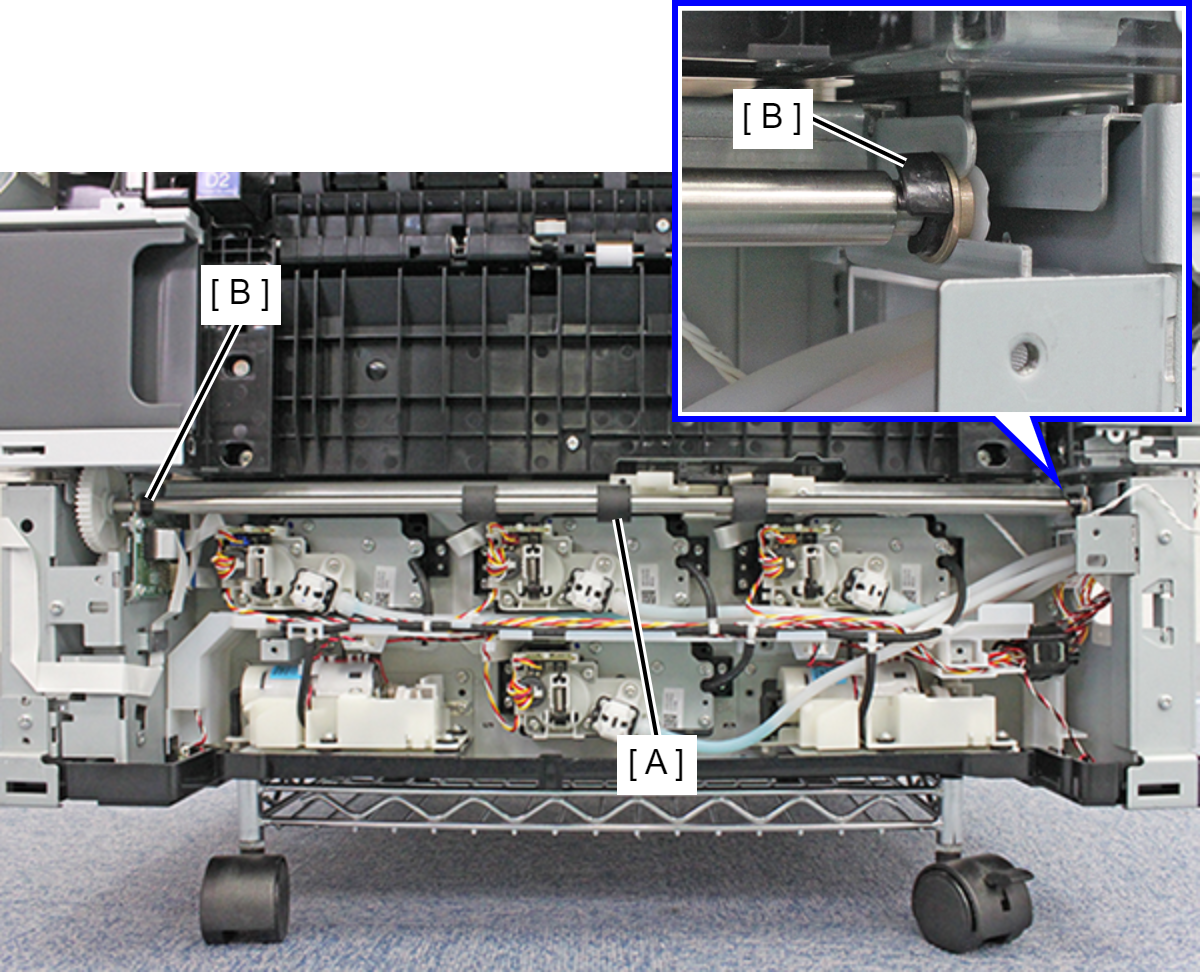

7. Remove the two bushes (B) from the RIPS Drive Roller (A).

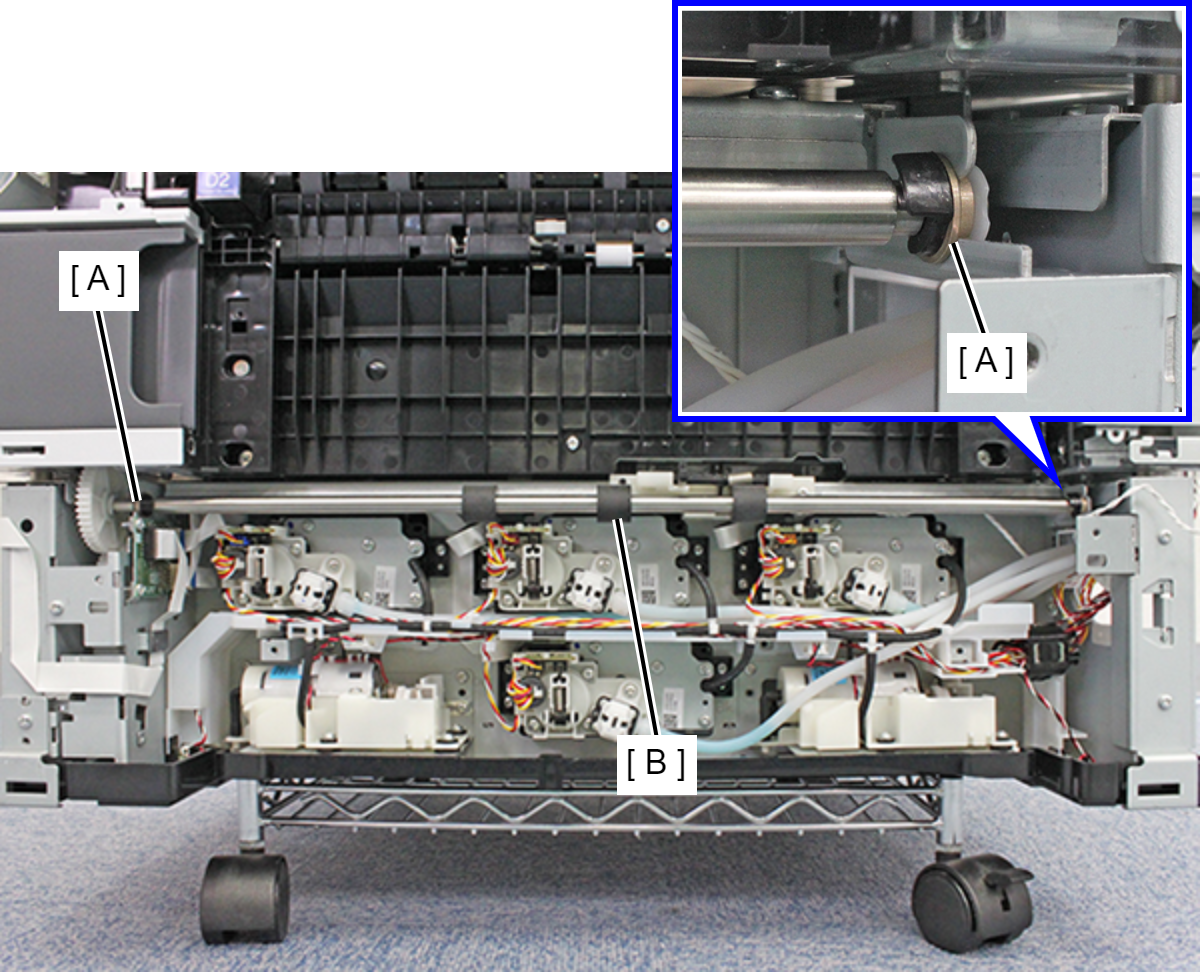

8. Remove the two bearings (A) from the frame notch and remove the RIPS Drive Roller (B).
