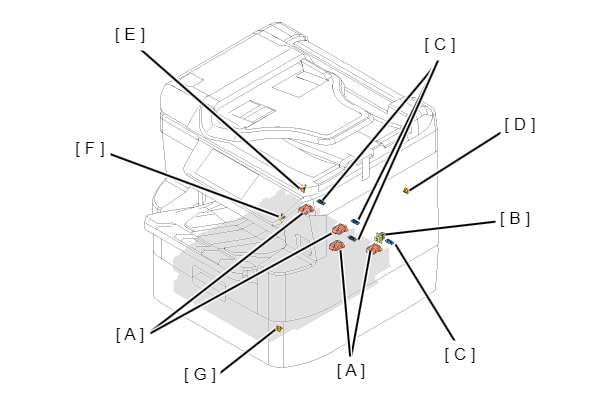

Ink Detection and Cover Detection System Sensors
| Name | Function | Type |
|---|---|---|
Ink Cartridge Sensor (x4) (A) |
Used for ink pack recognition. | CSIC |
| Maintenance Box Sensor (B) | Used for maintenance box recognition. | CSIC |
| Ink End Sensor (x4) (C) | Detects the end of the ink. | Transmission type photo interrupter (3.3VDC±5%) |
| Rear Cover Open Sensor (D) | Detects the open/closed state of the rear cover. | Mechanical contact (3.3 VDC ±5%) |
Paper Jam Clear Cover Open Sensor (E) |
Detects the open/closed state of the paper jam clear cover. |
Mechanical contact (3.3 VDC ±5%) |
| Front Cover Sensor (F) | Detects the open/closed state of the front cover. | Mechanical contact (3.3 VDC ±5%) |
Ink Pack Cover Open Sensor (G) |
Checks the open/closed state of the ink pack cover. |
Mechanical contact (3.3 VDC ±5%) |
