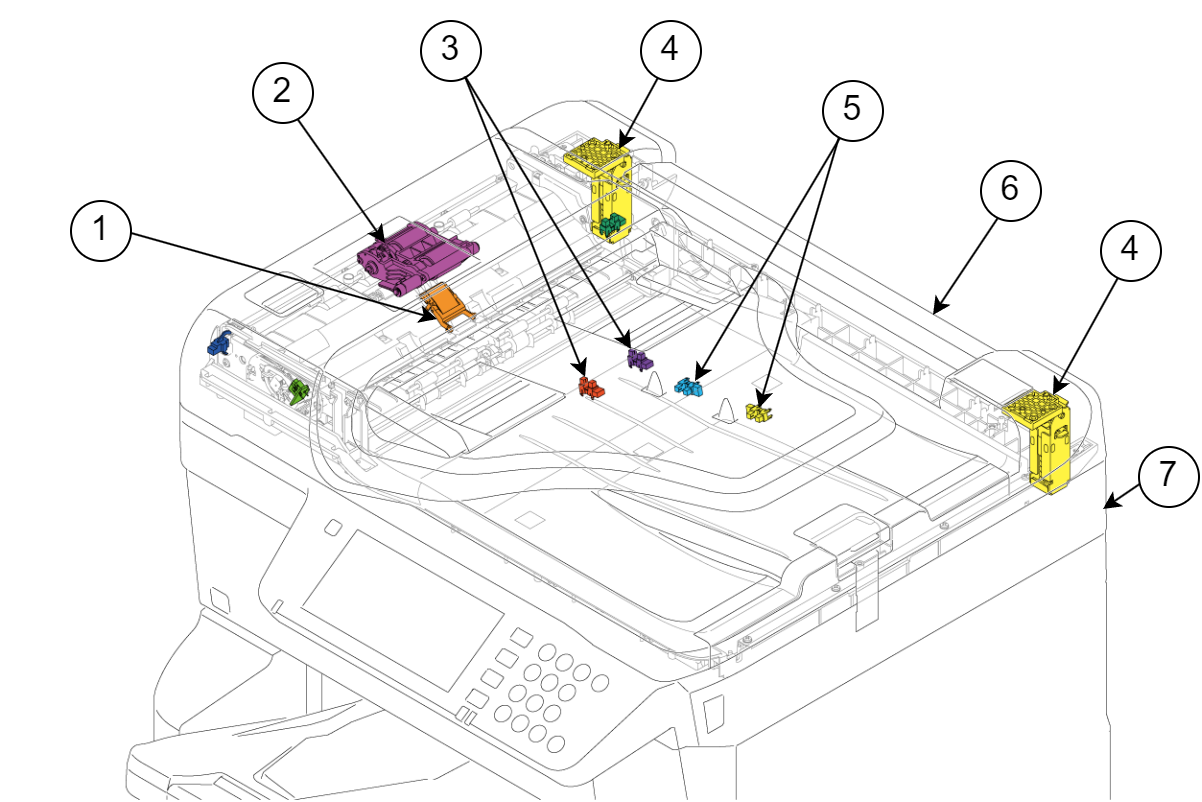

ADF/SCN
| No. | Name |
|---|---|
| 1 | ADF Pad Assy |
| 2 | ADF Pick Up Roller Assy |
| 3 | ADF Document Size Sensors |
| 4 | ADF Hinge |
| 5 | ADF Document Size Sensors |
| 6 | ASF Cover |
| 7 | ADF/SCN Unit |
