BI-D BAND ADJUST [B48]

Paper and Feed Tray
  • Paper size: A4/Letter
  • Paper type: Plain paper
  • Paper feed tray: Paper cassette (1) to paper cassette (4)

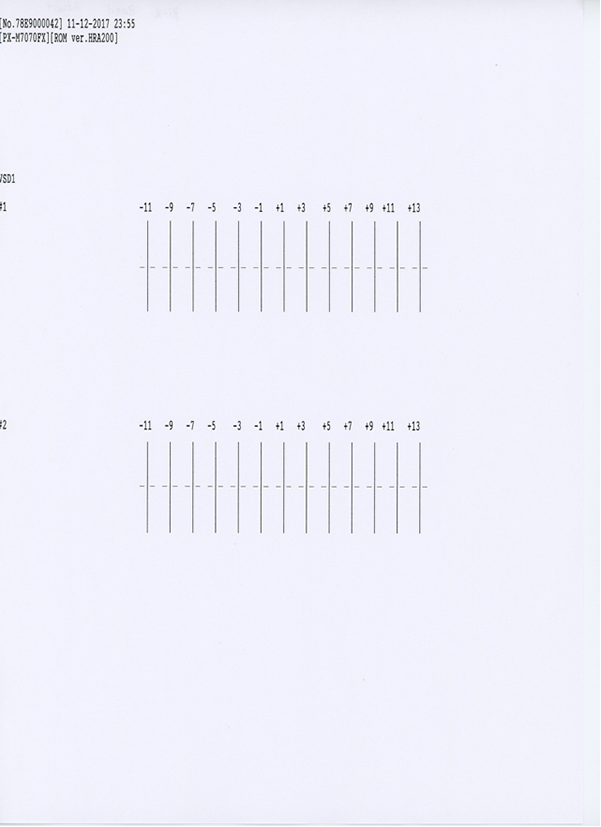

Adjustment pattern

Judgment

From among the printed patterns, select the pattern where the above and below lines are the straightest.

Adjustment procedure
  1. Start the service support mode. (Service mode startup and operating procedures)
  2. Select “Adjustment Main Unit: MENU” from the service support mode top menu.

  3. Select “Bi-D Band Adjust”.

    Check Point / チェックポイント

    Select and execute the corresponding adjustment item using either procedure below.

    • Selecting by entering the program number

    1. Select “Input B No.-Main Unit Adjust” from the Adjustment menu.
    2. Press the [#] button and software number key is displayed on LCD. Enter program number “48”.
    3. Press the [#] button.

    • Selecting from menu

    1. Select “Individual Adjustment: MENU” from the Adjustment menu.
    2. Select “Printing Adjust:MENU” from the Individual Adjustment menu.
    3. Select “Bi-D Band Adjust” from the Printing Adjust menu.

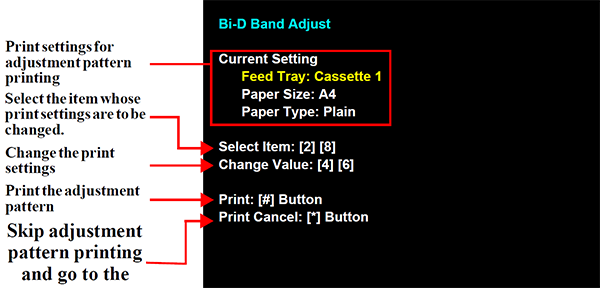

  4. The following screen will be displayed.
  5. Load paper into the paper feed tray.
  6. Press the [#] button to print the adjustment pattern.
  7. Check the adjustment pattern.
  8. Check the adjustment pattern and determine the adjustment value based on the judgment procedure.

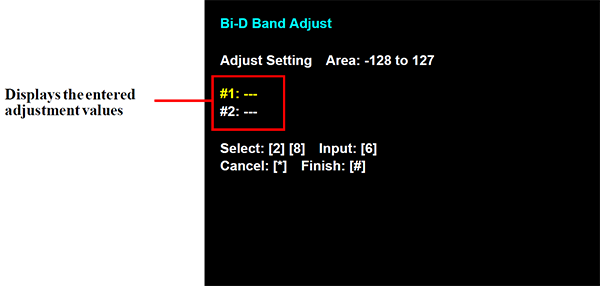

  9. Input a adjustment value.

    Check Point / チェックポイント
    • Operation method is belows.
      • [6] button: Displays the adjustment value input screen
      • [2] button, [8] button: Select the number.
      • [#] button: Finishes adjustment and inputs the adjustment values.
    • In the adjustment value input menu, the software number key is displayed

  10. Check that an adjustment value is entered for all of the adjustment input items and then press the [#] button to end adjustment.

  11. The adjustment end screen appears. Press the [#] button to return to the menu screen.

    Check Point / チェックポイント

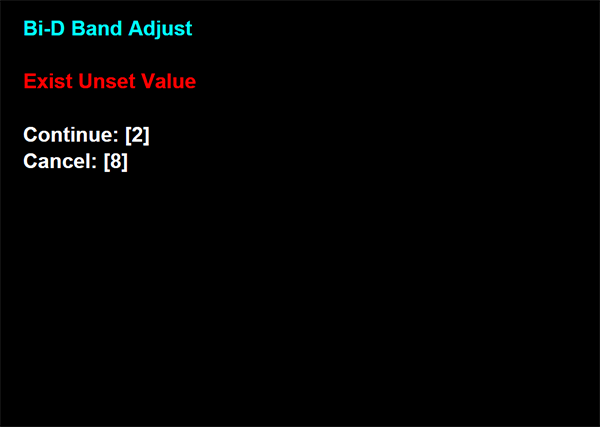

    To end adjustment without entering an adjustment value, press the [#] button in the state without an adjustment value entered in the adjustment input screen to display the following screen. If you press the [8] button in the following screen, the adjustment end screen appears and you can end adjustment. (To continue adjustment, press the [2] button.)
