# Option Rear Cover

1. Remove the Printer Main Unit from Option Cassette Unit (A).

2. Remove the four screws, then remove the Option Right Cover (A).


   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
3. Remove the four screws, then remove the Option Left Cover (A).


   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
4. Remove the two screws, then remove the Option Rear Fitting Frame (A).


   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
5. Remove the Option Paper Cassette (A).

6. Remove the two screws, and remove the Grounding Frame Assy (A).




   • : C.B.S-TITE-SCREW-3x6-F.ZN-3C
   • : C.C.P-TITE-SCREW-3x8-F.ZN-3C
7. Open the Option Rear Cover (A).

8. Remove the five screws fixing the Cassette Drawers.


   • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
9. Remove the five screws fixing the Option Drive Frame Assy (A).


   • : C.POLWAVE.D-TITE-A-SCREW-3x6-F.ZN3C
   • : C.C.P-TITE-SCREW-3x8-F.ZN-3C
10. Disconnect the two cables (A) from the Option Cassette Board (B).

11. Remove the Option Drive Frame Assy (A).

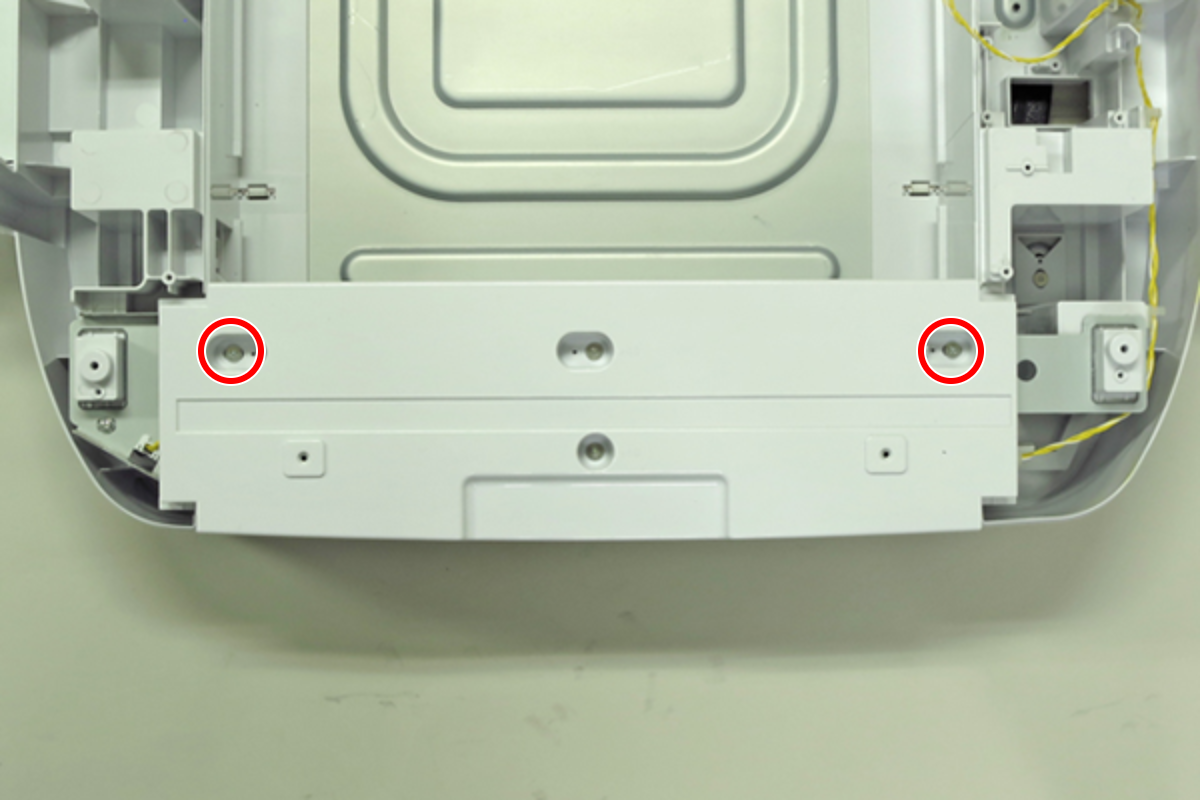

12. Remove the two screws.


    • : C.B.S-TITE(P4), SCREW, 3X10, F/ZN-3C

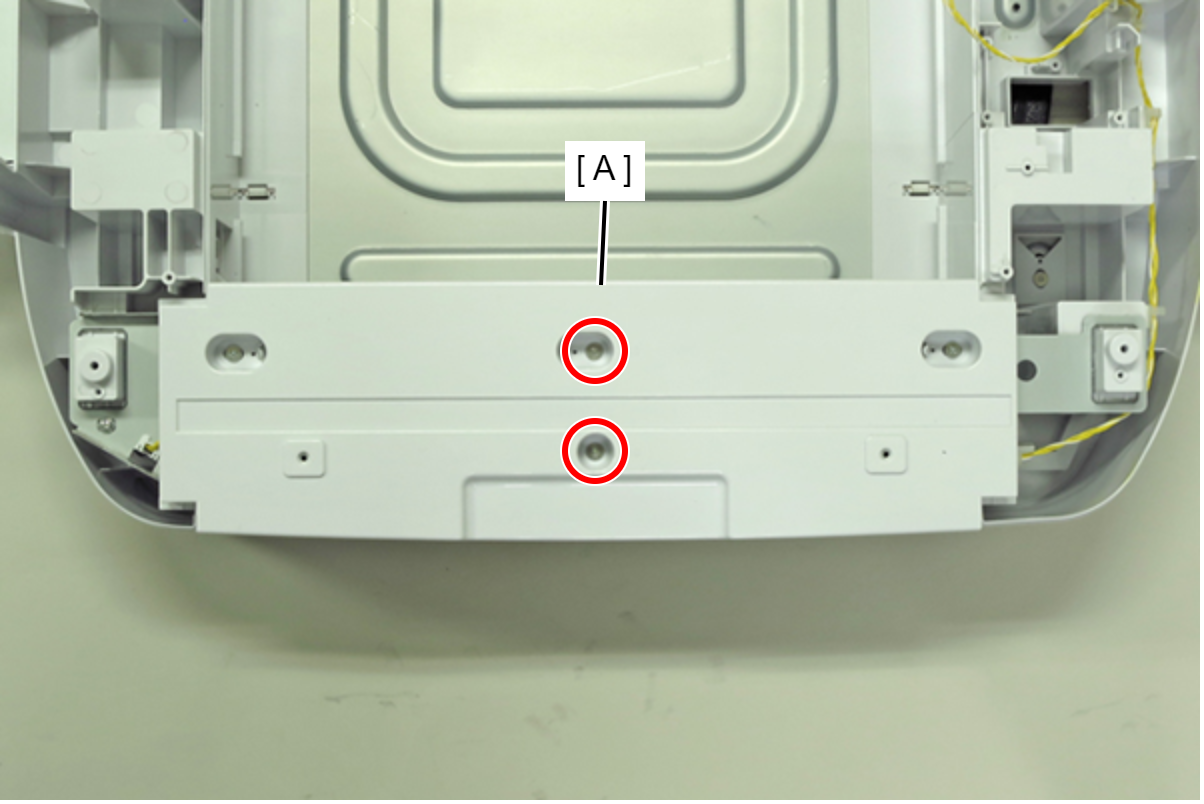

13. Remove the two screws, then remove the Option Front Cover (A).


    • : C.SHOULDER S-TITE, SCREW, 3X5

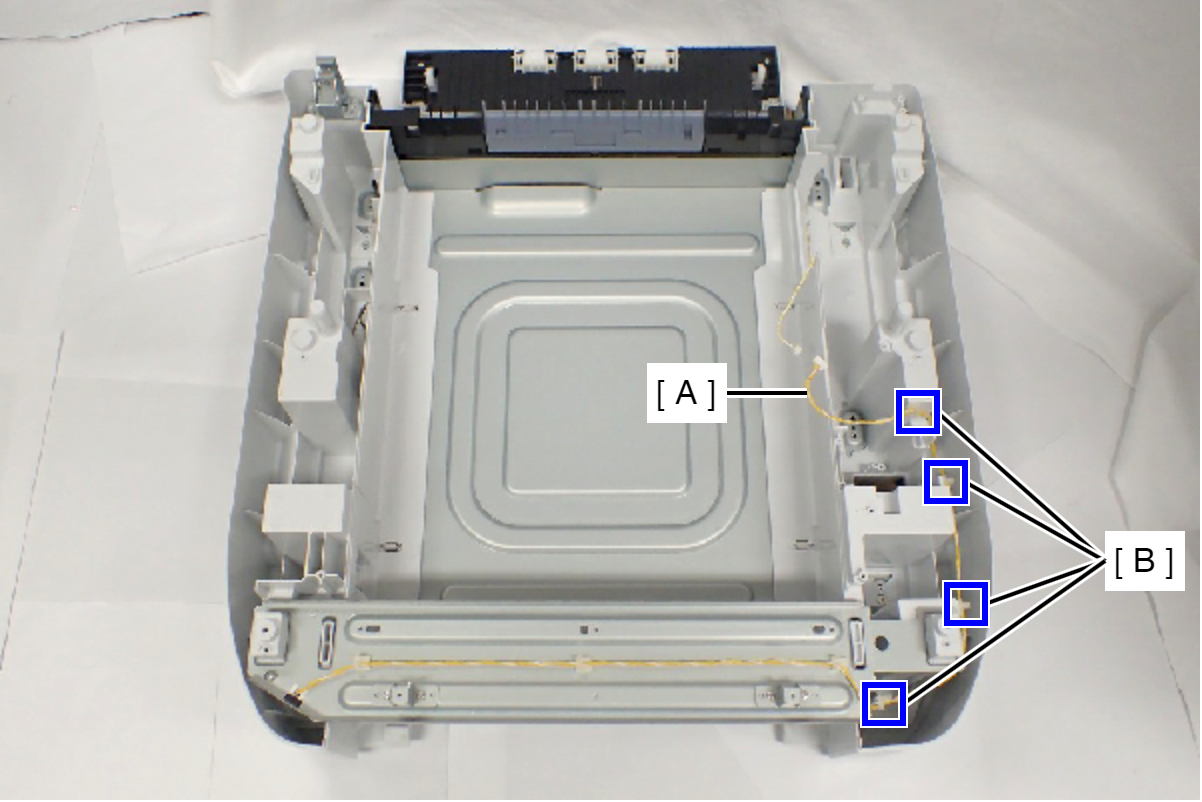

14. Release the sensor cable (A) from the four clamps (B).

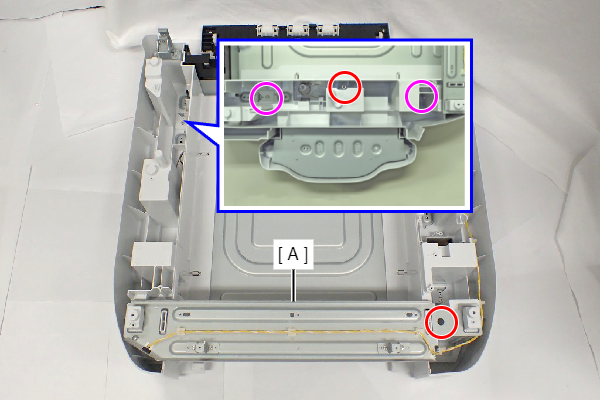

15. Remove the four screws fixing the Option Left Housing and the Option Front Frame Assy (A).


    • : C.POLWAVE.D-TITE-A-SCREW-3x6-F.ZN3C
    • : C.SHOULDER S-TITE,3X5

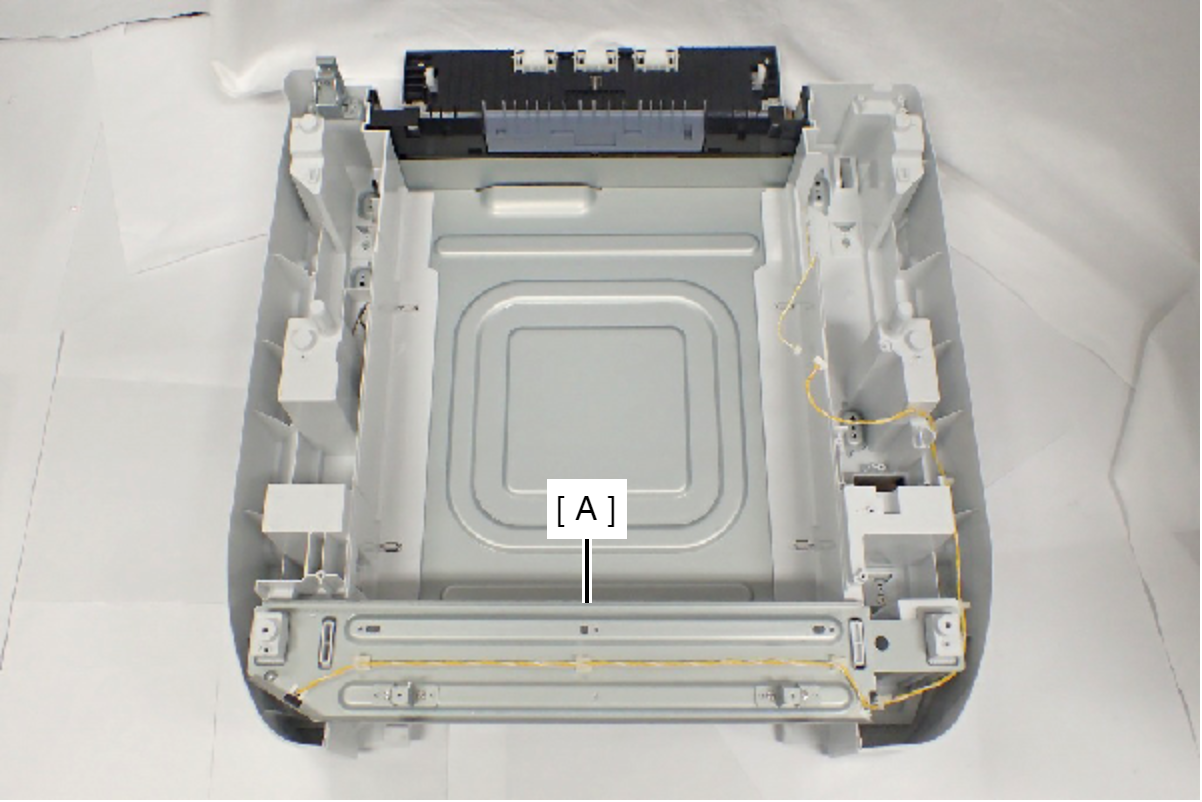

16. Pull the Option Left Housing and the Option Front Frame Assy (A) upward to remove it.

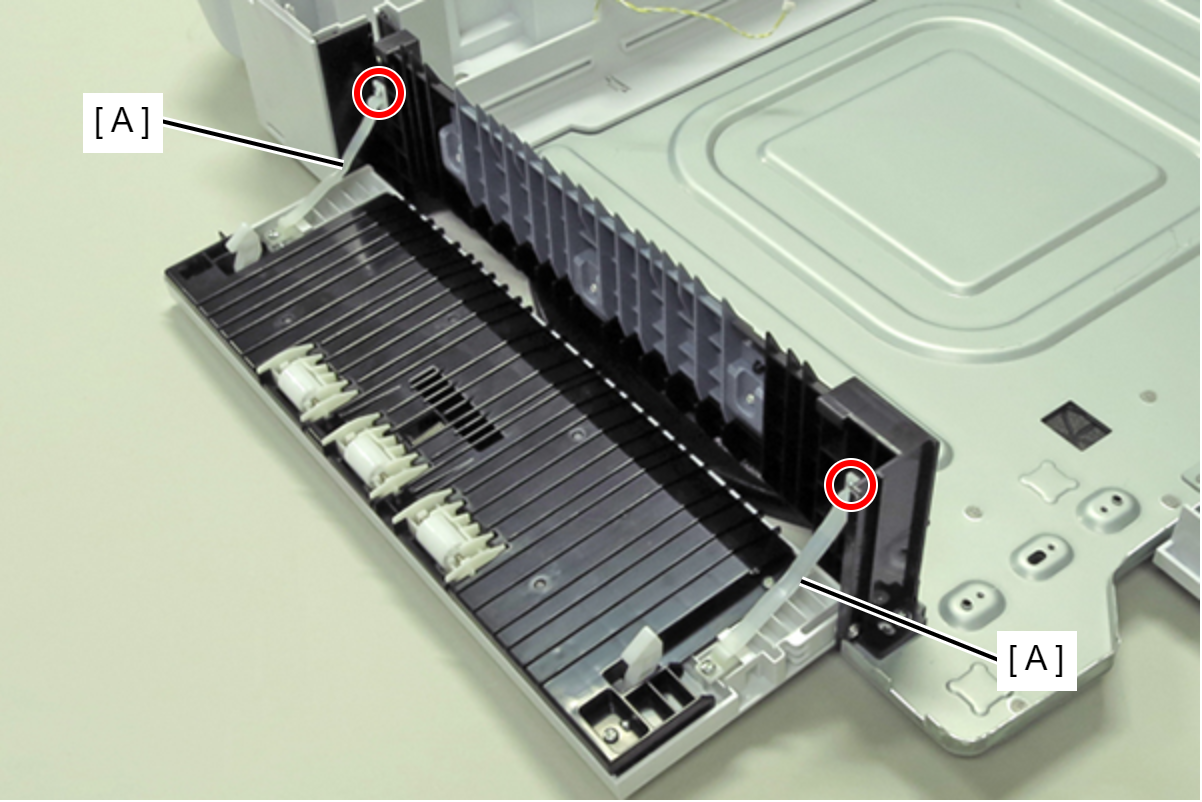

17. Remove the two screws, then remove the Option Rear Cover Belt (A).


    • : C.C.P-TITE-SCREW-3x8-F.ZN-3C

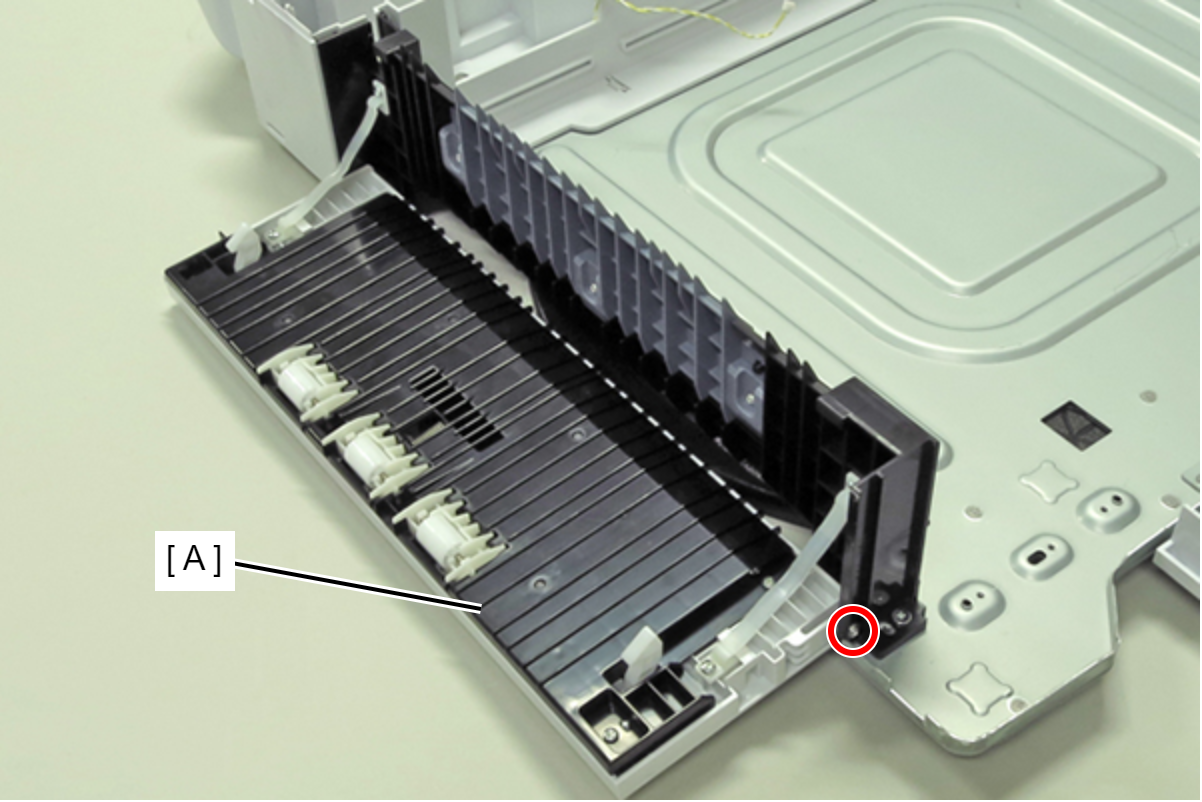

18. Remove the screw, then remove the Option Rear Cover (A).


    • : C.B.P-TITE-SCREW-3x10-F.ZN-3C
