Rear Band

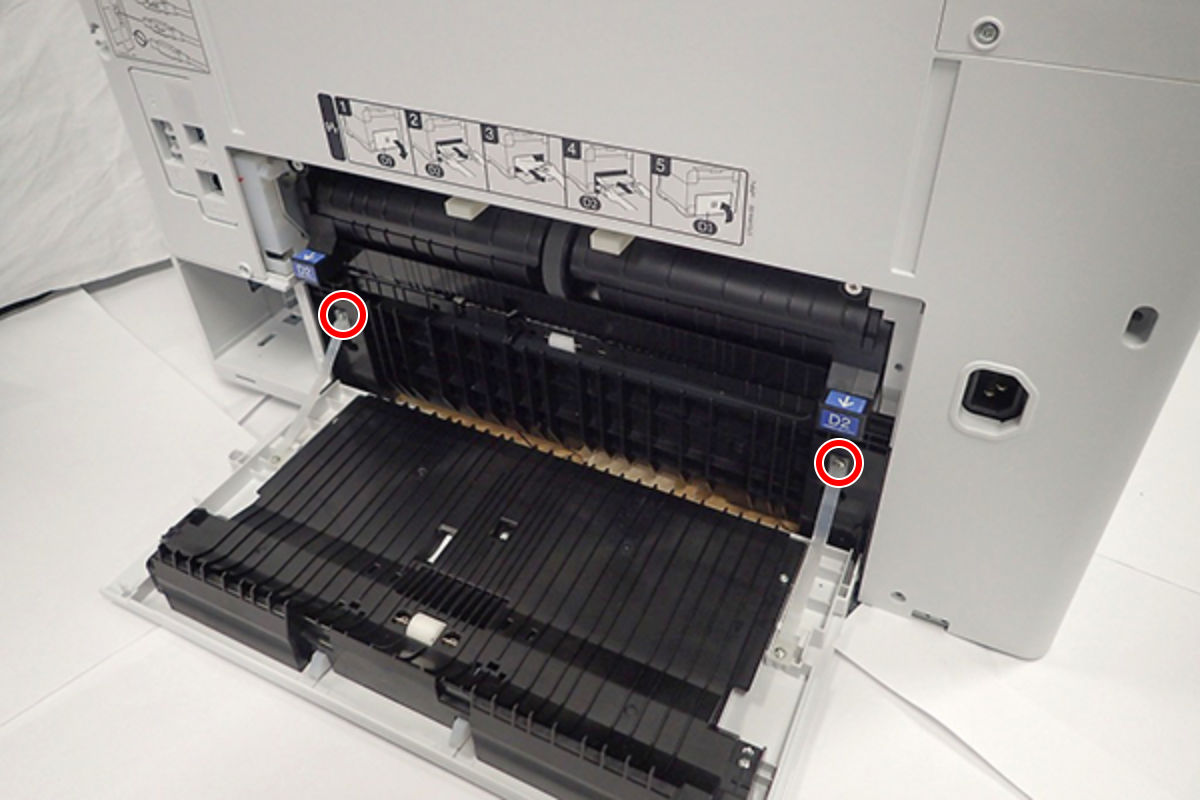

- Remove the two screws.
: C.B.P-TITE-SCREW-3x10-F.ZN-3C
- Disengage the two dowels, then remove the Duplex Print Cover Assy (A).

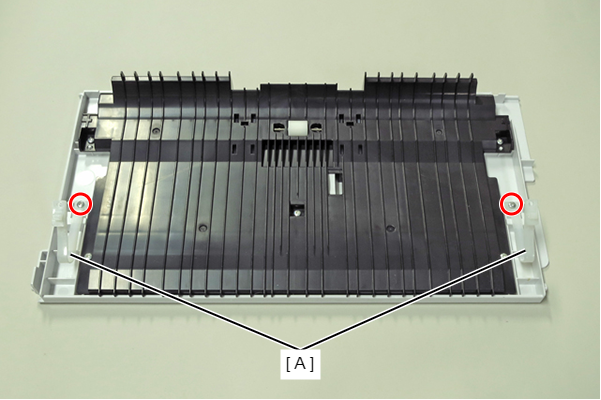

- Remove the two screws, then remove the two Rear Bands (A).
- : C.B.P-TITE-SCREW-3x10-F.ZN-3C
