# End Guide

1. Remove the Cassette Assy (A).

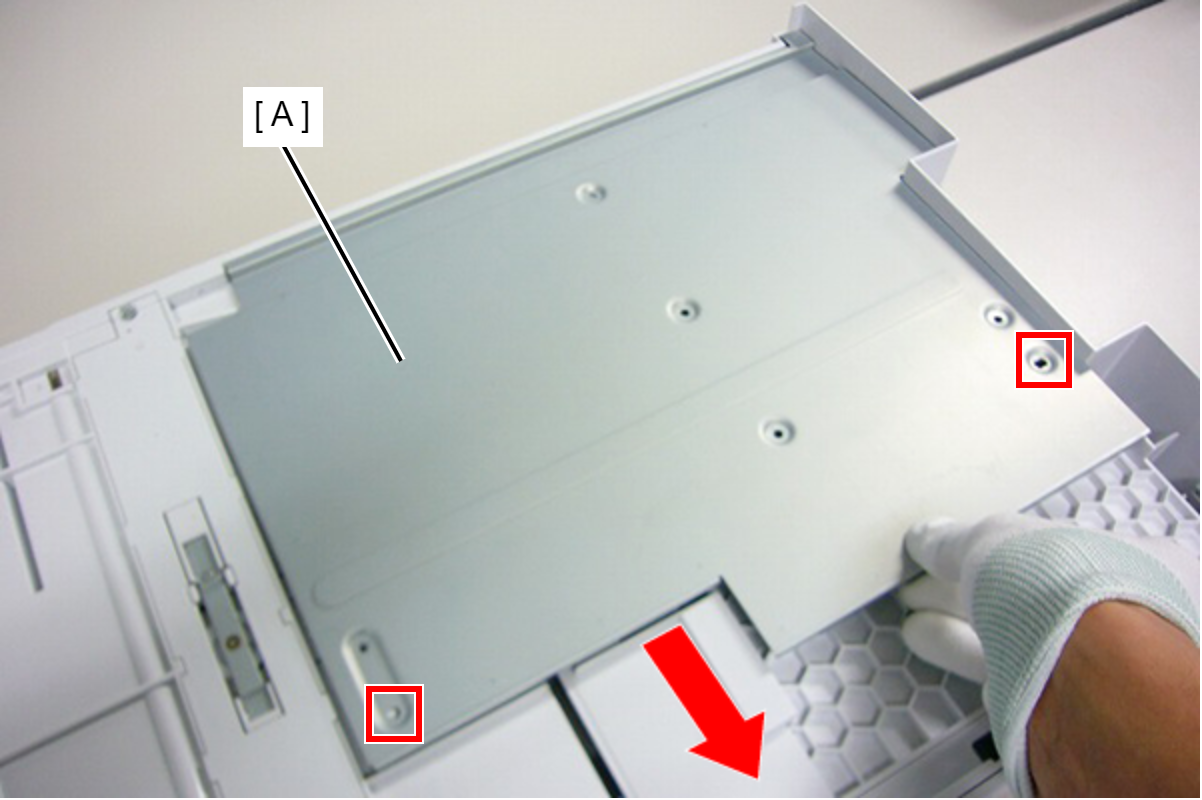

2. Remove the five screws.

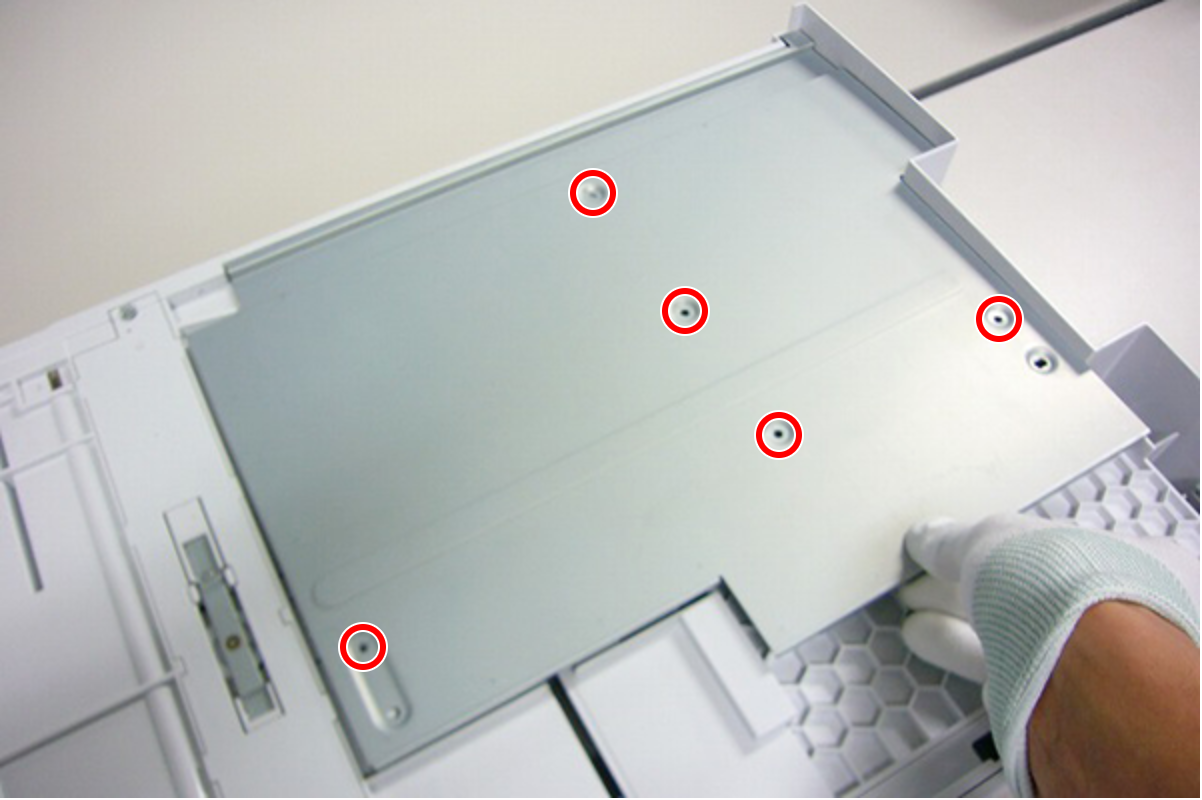

   • : C.B.S-TITE-SCREW-3x8-F.ZN-3C
3. Slide the paper cassette lower frame (A) to arrow direction while holding up it and releasing the dowel.

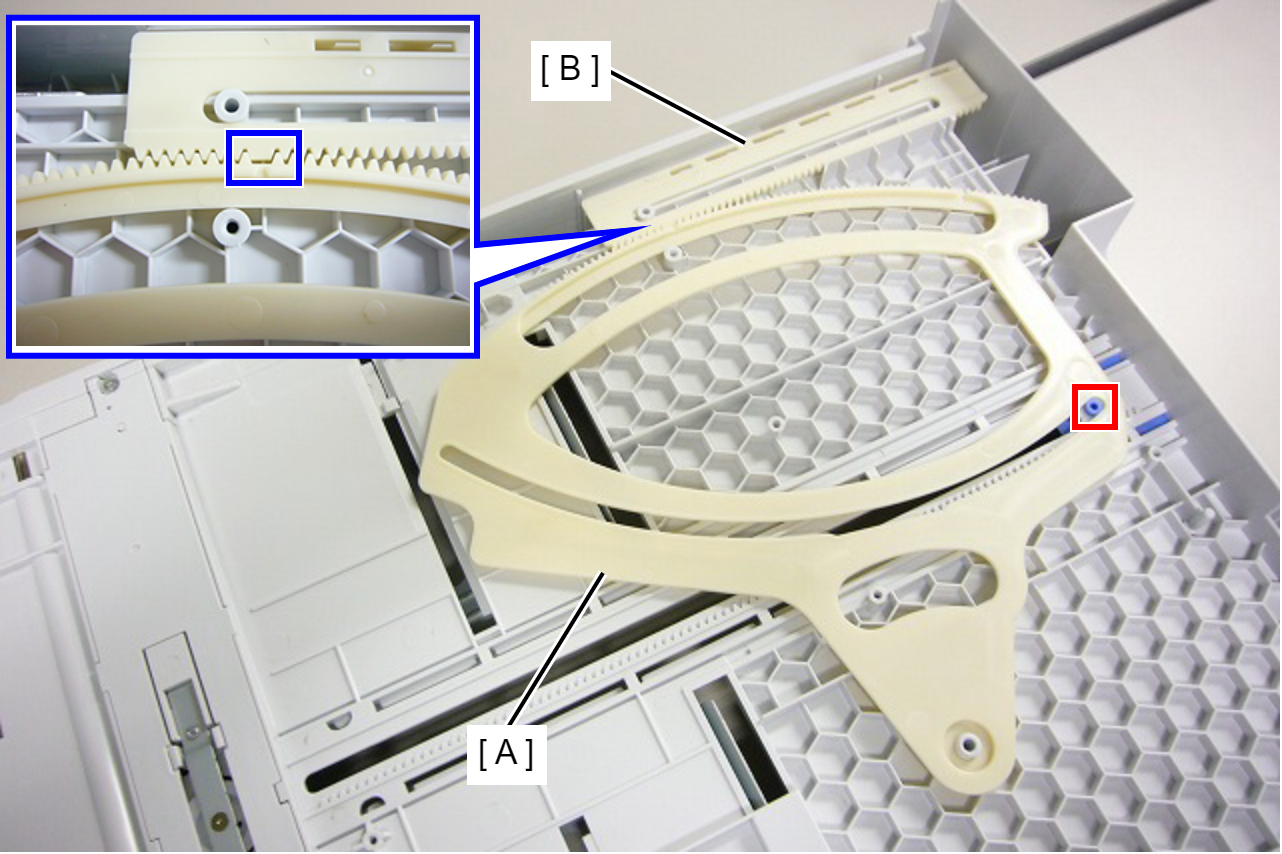

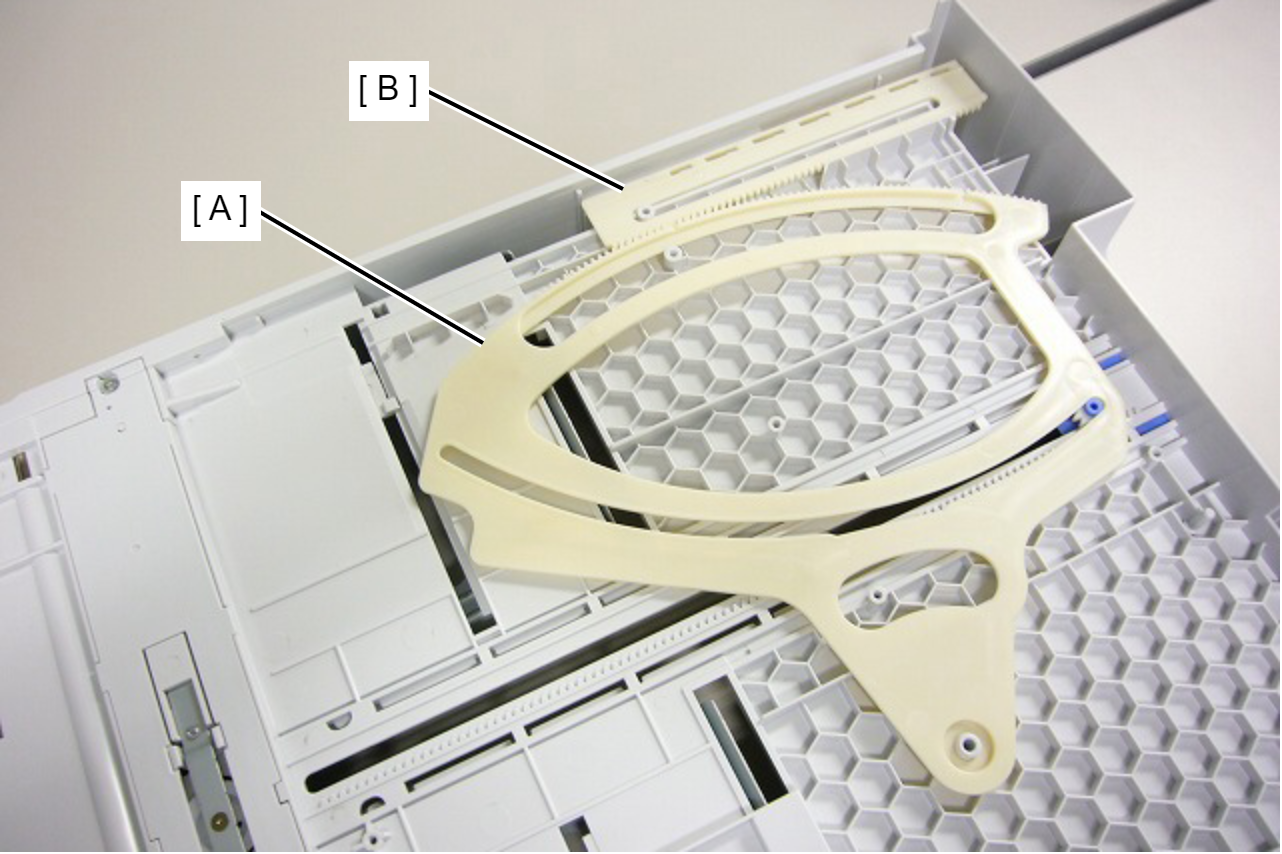

4. Remove the Paper size sensor lever drive part A (A) and the Paper size sensor lever drive part B (B).

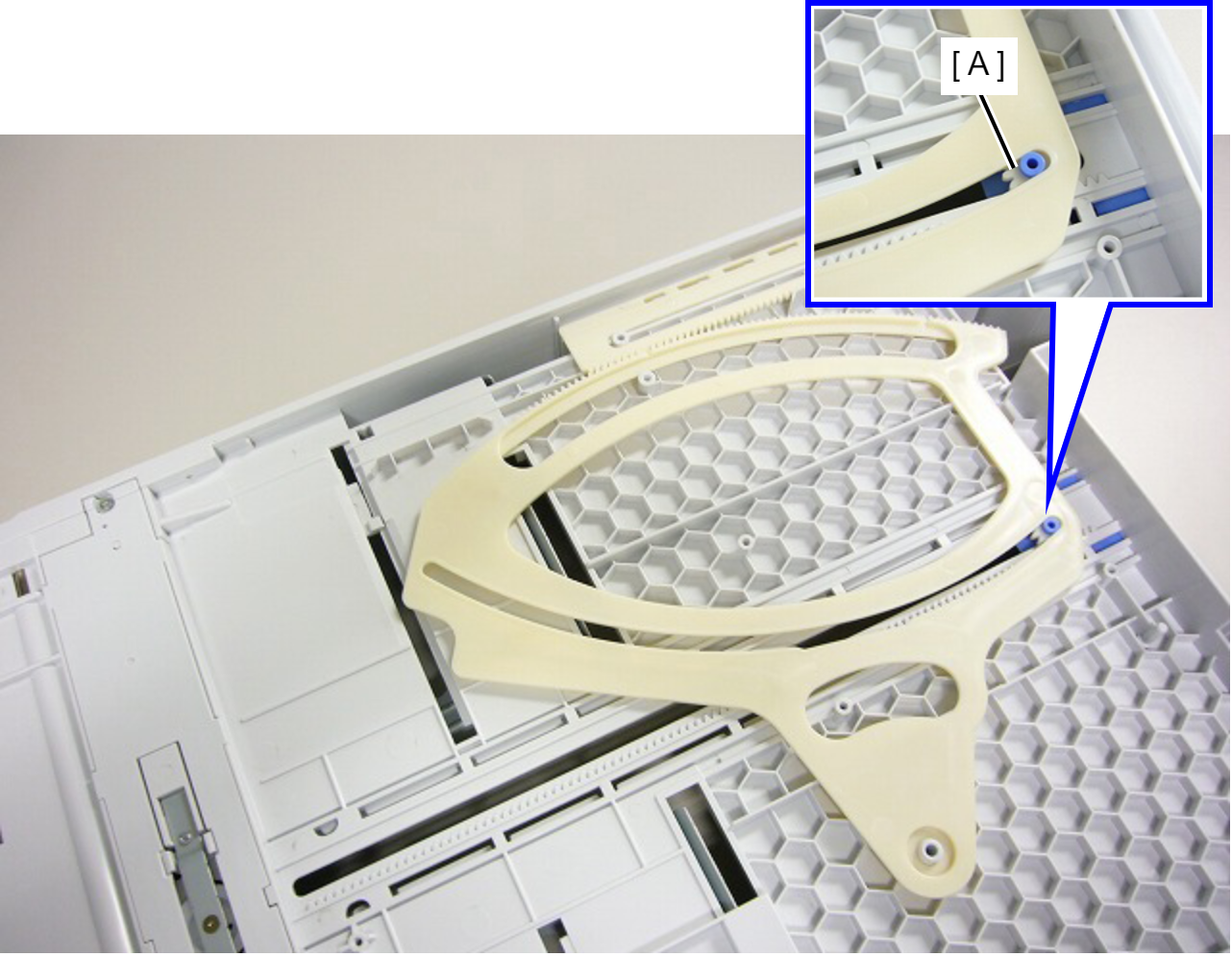

5. Remove the end guide gear (A).






   Assembly / 組み立て

   Confirm the following point when installing the paper size sensor drive part A (A) and paper size sensor drive part B (B). Dowel of end guide is inserted to groove of the paper size sensor drive part A. Align the positioning of paper size sensor lever drive part A and paper size sensor lever drive part B.

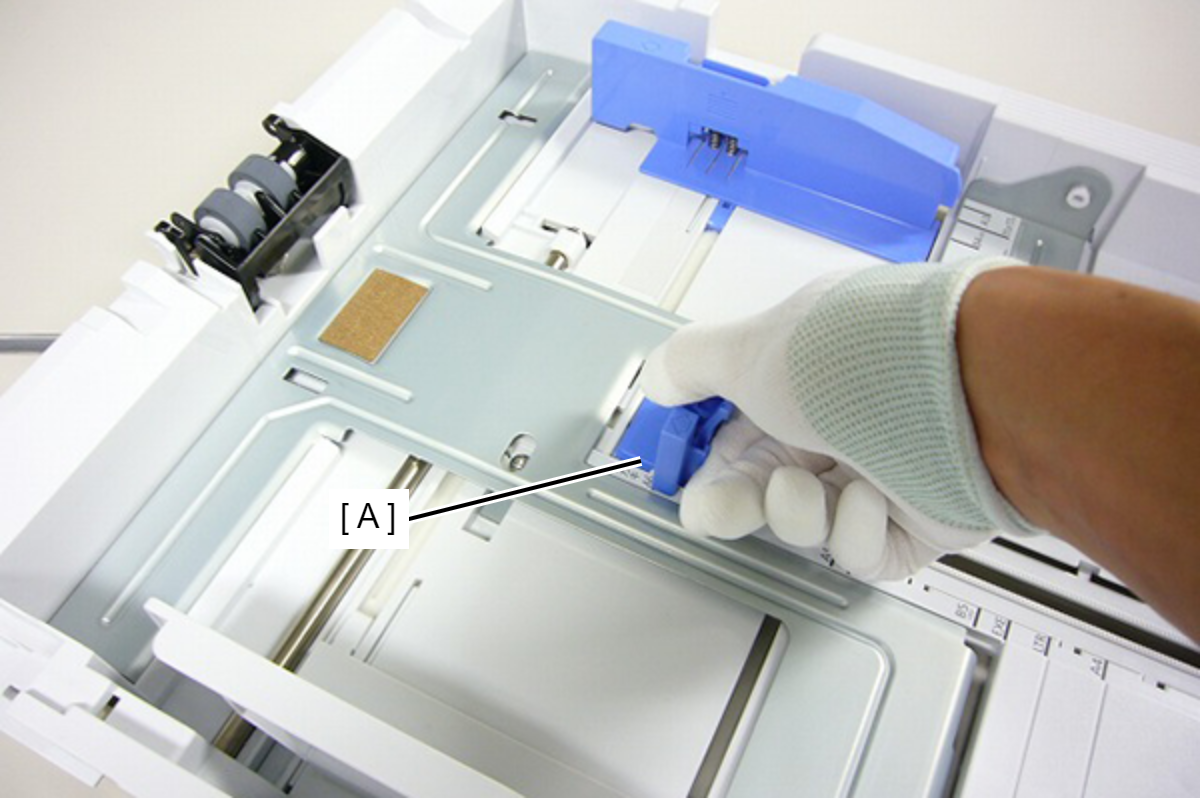

6. Move the End Guide (A) to the position of above figure.

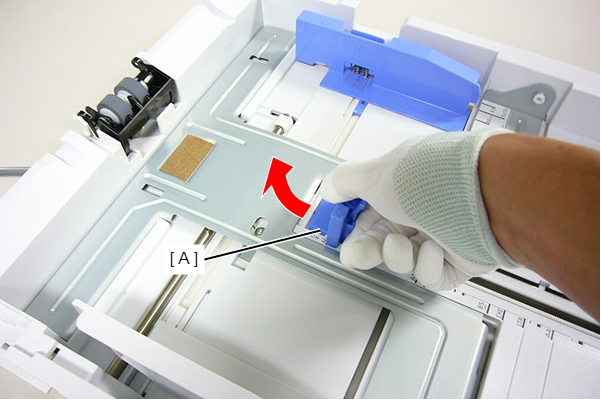

7. Hold up the tip of end guide (A), then remove it.
